Pedal Type 5KW Double Heads High Frequency PVC Stretched Ceiling Welding Machine

Availability:
Quantity:
  • DR-D5KW

  • DANREL

Pedal Type 5KW Double Heads High Frequency PVC Stretched Ceiling Welding Machine

https://youtu.be/W3sBhyeKCAY


Item: Pedal Type 5KW Double Heads High Frequency PVC Stretched Ceiling Welding Machine

Model No.: DR-D5KW



Machine Feature:

1. High frequency welding machine also called Radio frequency welding machine
2. High frequency  welding machine has a osciallation systerm, with a tube inside.
3. This machine can be customized into 5 KW/8 KW/10 KW /12 KW/15 KW/25 KW/ 35 KW/50 KW,  etc.
4. This machine can be customized into different shape for different products welding.
5. This machine has two working stations, two operators working alternately.
6. This is machine is foot pedal control.
7. This machine can work equipped with a air compressor, which gives more stable output.

8. This machine is with spark protection device inside, which protect the mold being damaged.


Technical Datas:



PVC Stretched Ceiling Welding Machine
Model DR-D4KW DR-D5KW DR-D8KW
H.F output 4KW 5KW 8KW
Oscillation frequency 40.68MHZ 27.12MHZ
Power supply AC 380V
Power input 6.5KVA 8.5KVA 15KVA
Oscillation tube 3062 7T85 7T69
Max pressure(kg) 500
Electrode distance 175mm 210mm
Activity distance 75mm 75mm
Electrode size 350*700mm 350*700mm 500*800mm
Net weight(KG) 320 350 475
Gross weight(KG) 410 440 605
dimension(mm) L*W*H=1100*2100*1600mm

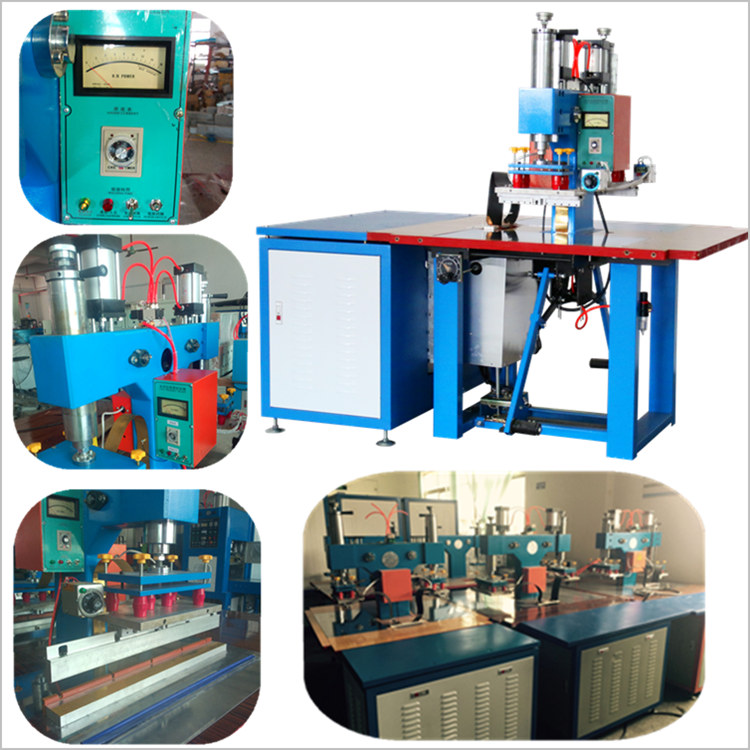

Pedal Type 5KW Double Heads High Frequency PVC Stretched Ceiling Welding Machine



Application Samples

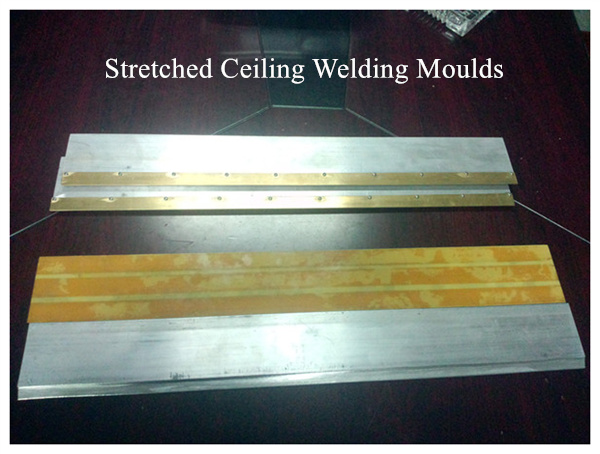

High Frequency PVC Stretched Ceiling Welding Machine Moulds

Our High Frequency Welding Machine have activity in the following industries:

Medical: Including Blood bags, Colostomy bags, DVT bags, Solution bags, EVA bags, Medical Mattresses, produced on HF welding machines, high frequency welding machines, rotary and inline machinery. The materials can be PVC, Medical Grade PVC and Non PVC.



Tarpaulin Awnings and Banners: Including HF travelling head, fixed head and gantry, hot air in-line and fixed head, gluing, sewing and ultrasonic system. Plotters conveyor or fixed table, water jet cutting systems and associated equipment.



Automotive: Including Car Carpets, Sun Visors, Load Floors, Seats, Doors and Tops produced on HF welding, rotary and shuttle machinery



Packaging: Including Form Fill & Seal, Blister Forming, for both food and non food, rotary and inline machinery, for Soft Crease Boxes, clam Shell and Standard Blisters, using thermo-contact and HF welding technology.

Stationery: Including Pockets, Binders, Tax Discs produced on high frequency welding, rotary, inline and shuttle machinery, PVC bath book



Many more...




Questions 01. How Do You Pack the machines

RE: Our machines will be packed into wood case, (we will process the wood case and make sure it is exporting standard, and no need addtional fumugation)

Questions 02. Is it difficult to install the machine ?

RE: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine;
You just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get install videos, and install instructions from us.

It will be an ABC thing to install machines at your side.


Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.

Double Heads High Frequency PVC Stretched Ceiling Welding Machine



Technique specifications
Model  DR-4KW DR-5KW DR-8KW
Power 4KW 5KW 8000W
Voltage 220V/380V   50/60HZ
Frequency 27.12MHZ
Input power  6.5KVA 8.5KVA 15KVA
Rectifier SILICON DIODE
Oscillation tube  E3130 7T85RB 7T69RB
Max pressure  350KG 400KG 450kg
Electrode gap 160~200MM
Stroke distance 60MM
Upper electrode size 120*200mm(200*350mm can be customized)
Lower electrode size 350*700mm (500*800mm can be customized)
Temperature tange 30~200℃ Adjustable
Welding time 0~10S Adjustable
Operaton Mode Foot operated
Efficiency 3000~4000times/8h
Weight 300KG 330KG  330kg
Size 1700*1100*1600
