15KW, 25KW, 35KW Double Heads High Frequency Welding(HF Welders) Machines For Conveyor Belts Production

Availability:
Quantity:
  • DR-DT15-CB/DR-DT25-CB

  • DANREL

15KW, 25KW, 35KW Double Heads High Frequency Welding(HF Welders) Machines For Conveyor Belts Production

HIGH FREQUENCY CONVEYOR BELT WELDING MACHINE

High Frequency PVC & PU Welding Machine only works with thermoplastics that have a high dielectric constant. In this process, an electric field is generated near the joint, the direction of which is alternated approximately twenty-seven million times a second. Every time the electric field changes, the dipole molecules of the polymer attempt to flip around to realign themselves to the new field orientation. Because this movement is impaired by inertia and friction, the molecules do not flip in unison. This constant relative movement of the molecules results in inter molecular friction which results in heat and, subsequently, melting. Radio Frequency welding typically has weld cycle times from two to five seconds and can handle parts from approximately one-thousandths inches thick to fifty-thousandths inches thick.

Main Features:

(1) Efficient: Equipped with double welding heads, one head for sidewall, the other head for welding cleats and guides. Two heads can do the welding at the same time.

(2) Profession: This machine is designed for PVC&PU&conveyor belts "T" and "L" cleats, sidewalls, treadmill belts.

(3) Stable Frequency: the international industrial band is 27.12MHZ which conforms to the international standard.

(4) Strong output: low-consumption coaxial oscillator, coherent tuner, strong output force to shorten welding time and increase production.

(5) Quick change tooling capable: reduces downtime during tooling changeover

(6) High-efficient Tunning: output power can be adjusted by the tuner according to the size of the electrode and the thickness of the material, except for various control devices and special electronic circuits, which can greatly reduce the necessary welding time and increase the production capacity of the machine.

(7) High sensitive anti-spark tube to protect the welding bar and welding products.

(8) Reinforced frame: stable and durable.

(9) Safety Production:

* Separated Controller guarantees the secure distance between operator and HF generator;

* Auto ascending&descending guard cover protects the operator's hands from touching the electrode.

Model No
DR-T15-DCB
DR-T25-DCB
HF Power
15KW
25KW
Power input
25KVA
35KVA
Power Supply
AC 220/380V/440V 50Hz-60HZ or customize
Upper Electrode
1000*250*30mm
1000*250*30mm
Worktable
1200*250*30mm
1200*250*30mm
Oscillation Tube
8T85RB
8T25RB
Spark Tube
NL-5557
Stroke
200MM
Working Pressure
800 KGS
Welding Time
1-60s
Weight(KGS)
1100 KGS
1400 KGS

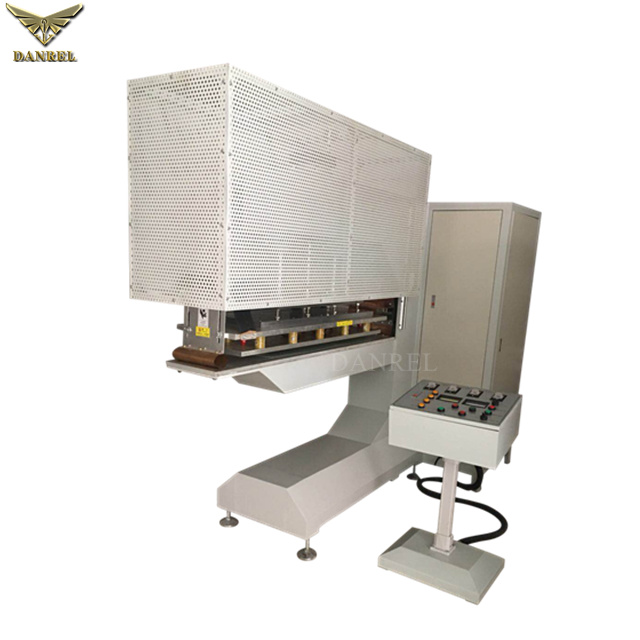

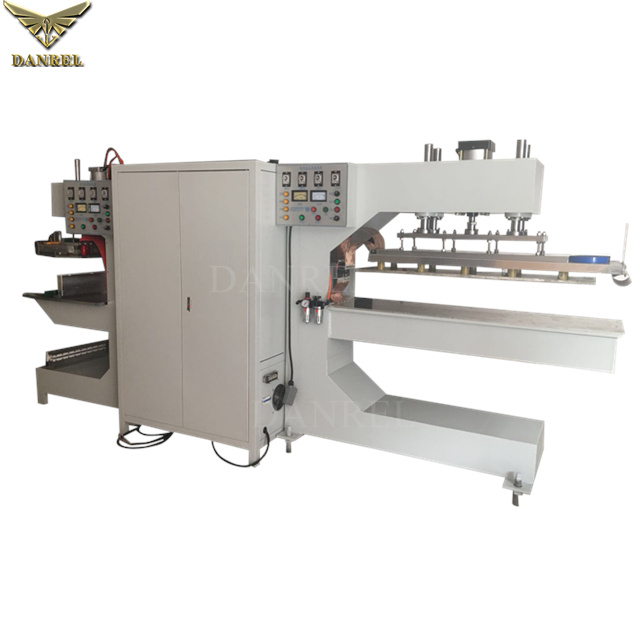

Double Heads Option(15KW & 25KW & 35KW)
15KW, 25KW, 35KW Double Heads High Frequency Welding(HF Welders) Machines For Conveyor Belts Production
Single Head Option(15KW & 25KW & 35KW)
15KW, 25KW, 35KW Double Heads High Frequency Welding(HF Welders) Machines For Conveyor Belts Production
Single Head Machine with Safety Shelter
15KW, 25KW, 35KW Double Heads High Frequency Welding(HF Welders) Machines For Conveyor Belts Production
15KW, 25KW, 35KW Double Heads High Frequency Welding(HF Welders) Machines For Conveyor Belts Production

APPLICATION

1. Sidewalls, Treadmill,

2. T-Cleats, L-Cleats and other Cleats

3. TPE, PU, PVC conveyor belts

Remark:

* The cleats which has the same width base can share the same cleats moulds(welding width 25-26MM);

* The sidewall which has the same height can share the same moulds;

15KW, 25KW, 35KW Double Heads High Frequency Welding(HF Welders) Machines For Conveyor Belts Production

15KW, 25KW, 35KW Double Heads High Frequency Welding(HF Welders) Machines For Conveyor Belts Production

15KW, 25KW, 35KW Double Heads High Frequency Welding(HF Welders) Machines For Conveyor Belts Production

Detailed Images


MACHINE Parts


Name: Safety Cover/Guard
Feature: Automatic Ascending/Descending.
Function: To protect the operator's hand from touching the electrode/welding mould, to guarantee the safe production.

15KW, 25KW, 35KW Double Heads High Frequency Welding(HF Welders) Machines For Conveyor Belts Production
15KW, 25KW, 35KW Double Heads High Frequency Welding(HF Welders) Machines For Conveyor Belts Production


MACHINE PARTS

Name: Separated Controller.
Advantages: The separated controller guarantee the safety distance between operator and HF generator. The cable is up to 5meters.(customization offered)


Antil-spark Device

Model No.: NL-5557
When the welding current exceeds its limit, the overload relay functions automatically to protect oscillation tubes and rectifier.
Frequency deviation caused by mis-operation is also prevented.
15KW, 25KW, 35KW Double Heads High Frequency Welding(HF Welders) Machines For Conveyor Belts Production
15KW, 25KW, 35KW Double Heads High Frequency Welding(HF Welders) Machines For Conveyor Belts Production


Power Grid tube

Brand: JINGGUANG or TOSHIBA(CANON)
Original: CHINA or JAPAN
High Q Value Power grid tube, durable, stable and reliable in output. European-model square high frequency vibration cavity.

Certifications
CE Certificate-DANREL High Frequency Welding Machine
CE Certificate-DANREL High Frequency Welding Machine
CE Certificate-DANREL High Frequency Welding Machine
