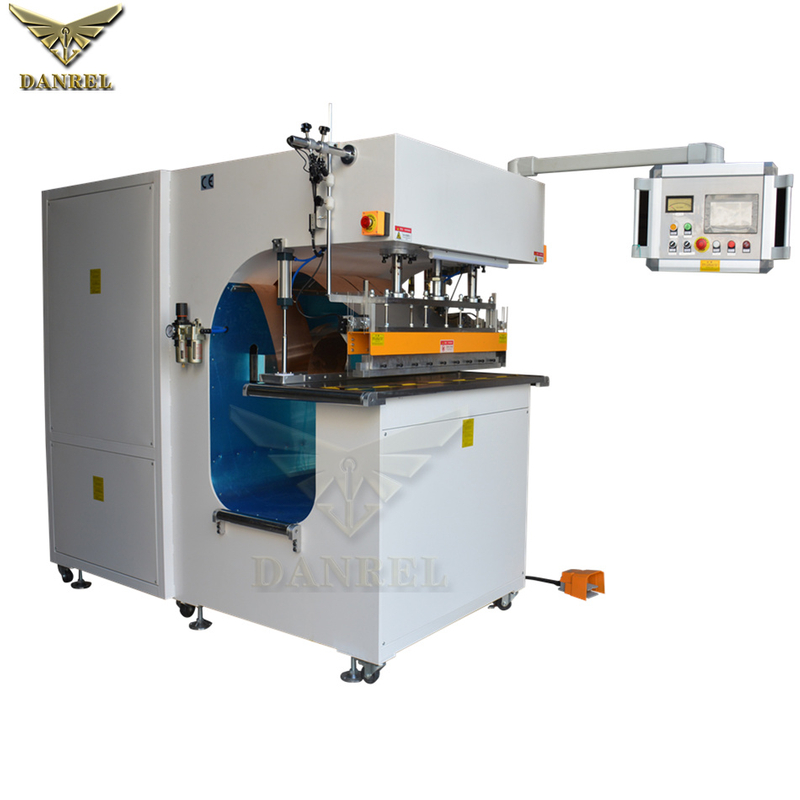

PLC Touch Screen Opertion 25KW RF Dielectric Bar Welder High Frequency PVC Tarpaulin Sealing Welding Machine

Availability:
Quantity:
  • DR-T25-F1-PLC

  • DANREL

Product Description

DANREL HIGH FREQUENCY CANVAS WELDING MACHINE

High Frequency PVC Tarpaulin Welding Machine only works with thermoplastics that have a high dielectric constant. In this process, an electric field is generated near the joint, the direction of which is alternated approximately twenty-seven million times a second. Every time the electric field changes, the dipole molecules of the polymer attempt to flip around to realign themselves to the new field orientation. Because this movement is impaired by inertia and friction, the molecules do not flip in unison. This constant relative movement of the molecules results in inter molecular friction which results in heat and, subsequently, melting. Radio Frequency welding typically has weld cycle times from two to five seconds and can handle parts from approximately one-thousandths inches thick to fifty-thousandths inches thick.

Main Features:

1. PLC touch screen operation for easy & fast parameters input.

2. Equipped with "Safety Hand Protection Device".

3. Equipped with a travelling arm for more convenient operation.

4. The Welding bar length, width, shape can be adjusted, fast changeover.

5. European-model square high frequency vibration cavity, more reliable and stable in output

6. Single line or two lines continue welding, welding length can be ordered as special need.

7. Deep groove welded steel structure, suitable for big size material welding.

8. Customized work table dimensions, electrode holder dimensions

9. Laser Guide Projectors – laser lines (easy for operator's eyes) for quick material guidance on the work table

10. High sensitive anti-spark tube to protect the welding bar and welding products.

11. Imported brand components to guarantee the stable performance;

12. RF emission protection design.

Model No
DR-T10
DR-T12
DR-T15
DR-T25
HF Power
10KW
12KW
15KW
25KW
Power input
18KVA
20KVA
25KVA
35KVA
Power Supply
AC 220/380V/440V 50Hz-60Hz(customization offered)
Upper Electrode
Length
900mm
(customization offered)
900mm
(customization offered)
51000mm
(customization offered)
 1000mm
(customization offered)
Worktable
450*1100mm
(customization offered)
450*1100mm
(customization offered)
450*1250mm
(customization offered)
450*1250mm
(customization offered)
Oscillation Tube
E3069
E3130
8T85RB
8T25RA
Spark Tube
NL-5557
Driven Mode
Pneumatic(Hydraulic Optional)
Air Cylinder Stroke
150MM(customization offered)
Working Pressure
Air Compressure 0.5-0.7 MPa
Welding Time
1-30 s(customization offered)
Net Weight
680
720
760
1100
PLC Touch Screen Opertion 25KW RF Dielectric Bar Welder High Frequency PVC Tarpaulin Sealing Welding Machine
PLC Touch Screen Opertion 25KW RF Dielectric Bar Welder High Frequency PVC Tarpaulin Sealing Welding Machine


PLC Touch Screen Opertion 25KW RF Dielectric Bar Welder High Frequency PVC Tarpaulin Sealing Welding Machine
PLC Touch Screen Opertion 25KW RF Dielectric Bar Welder High Frequency PVC Tarpaulin Sealing Welding Machine
F1 Model(600MM Wide Material Trough)
PLC Touch Screen Opertion 25KW RF Dielectric Bar Welder High Frequency PVC Tarpaulin Sealing Welding Machine
F2 Model(1000MM Wide Material Trough)
PLC Touch Screen Opertion 25KW RF Dielectric Bar Welder High Frequency PVC Tarpaulin Sealing Welding Machine
Automatic Travelling Head HF Tarpaulin Welding Machine
PLC Touch Screen Opertion 25KW RF Dielectric Bar Welder High Frequency PVC Tarpaulin Sealing Welding Machine

APPLICATION OF HIGH FREQUENCY CANVAS WELDING MACHINE

Tents, awning, trucks covers, Membrane Curtains, Swimming pool covers, Temporary shelters, billboards, sunshades, oil booms, army tents, tents, structural membranes, pool-liners, water cisterns, TPU water tanks, canopy, painting canvas, sun shades canvas, film curtain, etc

PLC Touch Screen Opertion 25KW RF Dielectric Bar Welder High Frequency PVC Tarpaulin Sealing Welding Machine
Detailed Images
PLC Touch Screen Opertion 25KW RF Dielectric Bar Welder High Frequency PVC Tarpaulin Sealing Welding Machine


PLC + Touch Screen


1. A touch screen operation panel for fast & easy parameters setting, including Time and Welding Current.

2. Language: English


Travelling Arm

Equipped with a travelling arm, the operation can move the operation to the right & left & front, which makes the production easier and more convenient.

PLC Touch Screen Opertion 25KW RF Dielectric Bar Welder High Frequency PVC Tarpaulin Sealing Welding Machine
PLC Touch Screen Opertion 25KW RF Dielectric Bar Welder High Frequency PVC Tarpaulin Sealing Welding Machine


Name: Infrared Laser

Laser Guide Projectors – projecting laser lines (easy for operator's eyes) for quick material guidance on the work table.

Name: Limit Switch

The gap between the upper electrode(welding bar) to the lower electrode(table) can be adjusted.

Safety-Hand Device

(Optional Device)

When there is a objected being detected, the welding head(welding mould) retreats automatically to avoid hurting the operator. There are two safety devices on the two sides of the upper electrode.

PLC Touch Screen Opertion 25KW RF Dielectric Bar Welder High Frequency PVC Tarpaulin Sealing Welding Machine
PLC Touch Screen Opertion 25KW RF Dielectric Bar Welder High Frequency PVC Tarpaulin Sealing Welding Machine

Power Grid tube

Brand: JINGGUANG or TOSHIBA(CANON)


Original: CHINA or JAPAN


High Q Value Power grid tube, durable, stable and reliable in output. European-model square high frequency vibration cavity.

Certifications
CE Certificate-DANREL High Frequency Welding Machine
CE Certificate-DANREL High Frequency Welding Machine
CE Certificate-DANREL High Frequency Welding Machine
Packing & Delivery
Packing Photo-DANREL High Frequency Welding Machine
Packaging
Size
L*W*H=2550*1550*2100MM
Weight
1300 KGS



Packaging Details
The normal package is standard export plywood box.



The wooden box(solid wooden if any) will be fumigated. If container is too tight, we will use pe film for packing or pack it according to customers special request.

Packing Photo-DANREL High Frequency Welding Machine
Packing Photo-DANREL High Frequency Welding Machine
Packing Photo-DANREL High Frequency Welding Machine
Packing Photo-DANREL High Frequency Welding Machine
Our Company
Shenzhen Danrel Office
Shenzhen Danrel Meeting Room
SHENZHEN DANREL INDUSTRIAL CO., LTD
SHENZHEN DANREL INDUSTRIAL CO., LTD
SHENZHEN DANREL INDUSTRIAL CO., LTD

SHENZHEN DANREL INDUSTRIAL CO., LTD

Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery.

* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier

FAQ
SHENZHEN DANREL INDUSTRIAL CO., LTD

Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .

Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
