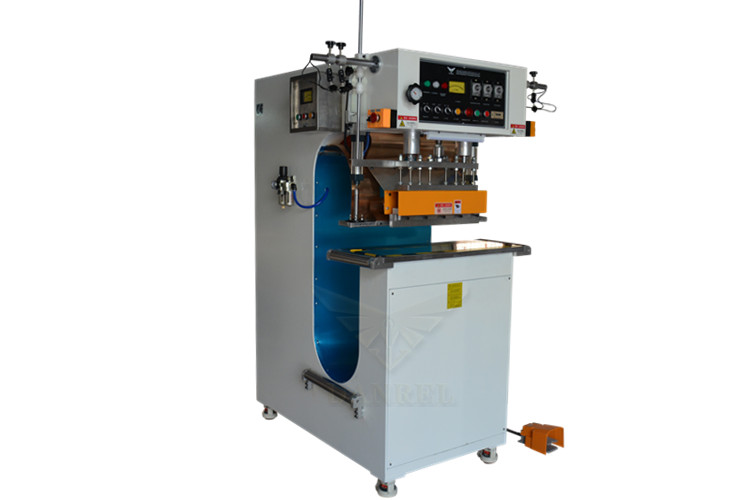

DANREL HIGH FREQUENCY CANVAS WELDING MACHINE

High Frequency PVC Tarpaulin Welding Machine only works with thermoplastics that have a high dielectric constant. In this process, an electric field is generated near the joint, the direction of which is alternated approximately twenty-seven million times a second. Every time the electric field changes, the dipole molecules of the polymer attempt to flip around to realign themselves to the new field orientation. Because this movement is impaired by inertia and friction, the molecules do not flip in unison. This constant relative movement of the molecules results in inter molecular friction which results in heat and, subsequently, melting. Radio Frequency welding typically has weld cycle times from two to five seconds and can handle parts from approximately one-thousandths inches thick to fifty-thousandths inches thick.

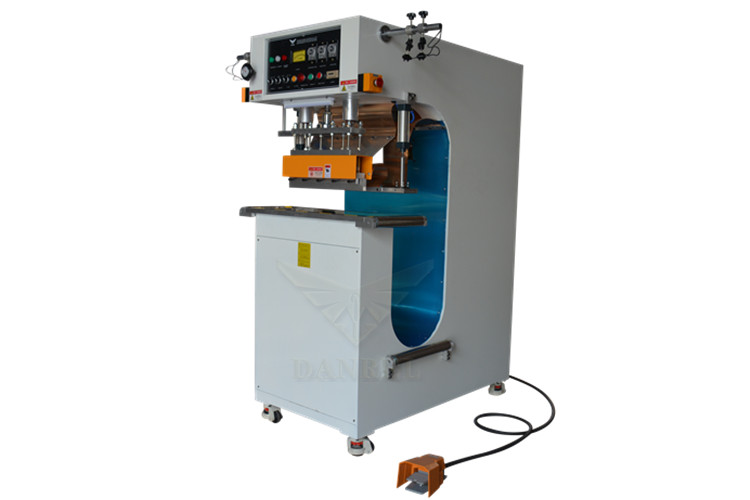

Main Features:

1. Equipped with deep trough creating ample space behind the electrode for easy material handling.

2. Laser Guide Projectors – projecting laser lines (easy for operator's eyes) for quick material guidance on the work table.

3. High sensitivity spark protection circuit, which can effectively cut off the high current output, suppression of sparks.

4. Customized work table dimensions, electrode holder dimensions, welding bar.

5. European-Standard square high frequency vibration box, stable and strong in output

6. Pneumatic driven high frequency pressing with foot pedal

7. Main parts adopts imported components, Taiwan Airtac, Japan OMRON, and NL-5557.

8. The machine is compact design for easy installation & operation and low maintenance required.

9. Output power can be adjusted at the tuner according to electrode size and material thickness.

10.The overload relay functions automatically to protect oscillation tubes and rectifier

11. Quick change electrode capable -- reduces downtime during tooling(electrode) changeover for difference applications.

12. Solid-steel structure design can last for multiple decades.

Technical Data

Model No
DR-T10
DR-T12
DR-T15
DR-T25
HF Power
10KW
12KW
15KW
25KW
Power input
18KVA
20KVA
25KVA
35KVA
Power Supply
AC 220/380V/440V 50Hz-60HZ or customize
Upper Electrode
50*50*800mm
50*50*800mm
50**50*1000mm
       50*50*1000mm
Worktable
450*1100mm
450*1100mm
450*1250mm
450*1250mm
Oscillation Tube
E3069
E3130
8T85RB
8T25RA
Spark Tube
NL-5557
Air Cylinder Stroke
150MM
Working Pressure
Air Compressure 0.5-0.7 MPa
Welding Time
1-30 s(customization offered)
Weight(KGS)
480
750
1100
1250

Small 5KW HF Welder Tents High Frequency PVC Coated Fabric Welding Machine
Small 5KW HF Welder Tents High Frequency PVC Coated Fabric Welding Machine
Small 5KW HF Welder Tents High Frequency PVC Coated Fabric Welding Machine
Small 5KW HF Welder Tents High Frequency PVC Coated Fabric Welding Machine
Small 5KW HF Welder Tents High Frequency PVC Coated Fabric Welding Machine

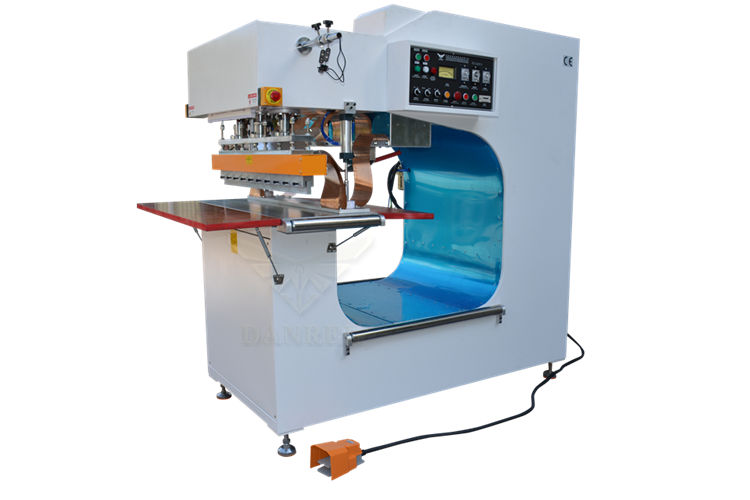

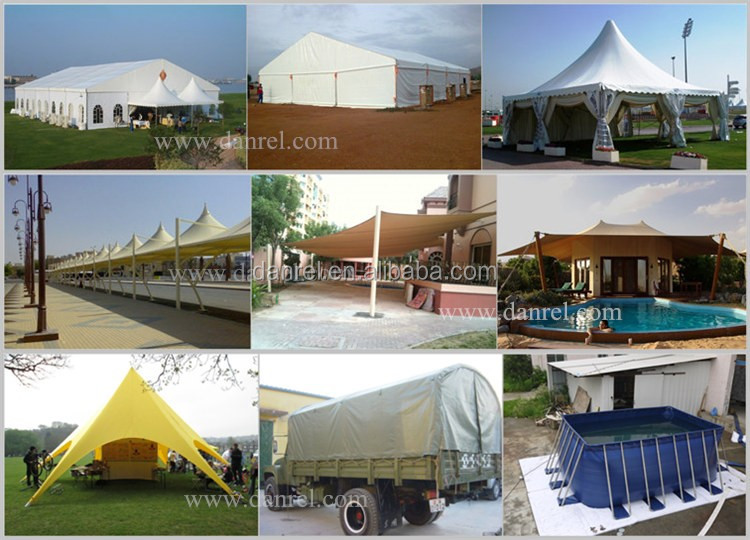

APPLICATION OF HIGH FREQUENCY CANVAS WELDING MACHINE

Tents, awning, trucks covers, Membrane Curtains, Swimming pool covers, Temporary shelters, billboards, sunshades, oil booms, army tents, tents, structural membranes, pool-liners, water cisterns, TPU water tanks, canopy, painting canvas, sun shades canvas, film curtain, etc

Small 5KW HF Welder Tents High Frequency PVC Coated Fabric Welding Machine
Detailed Images

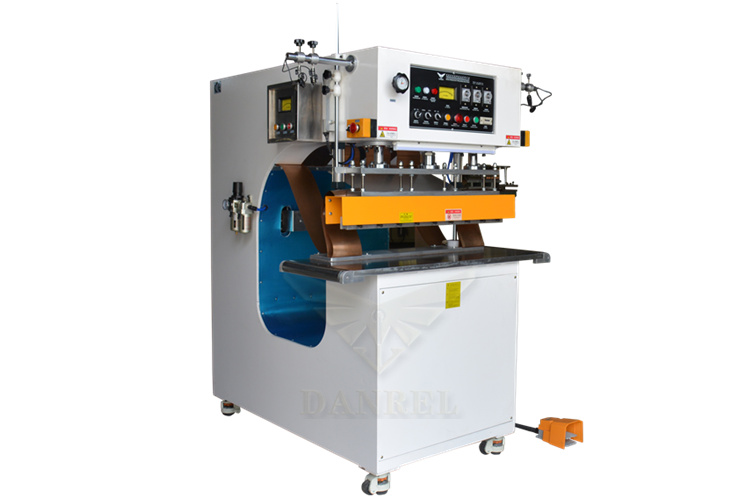

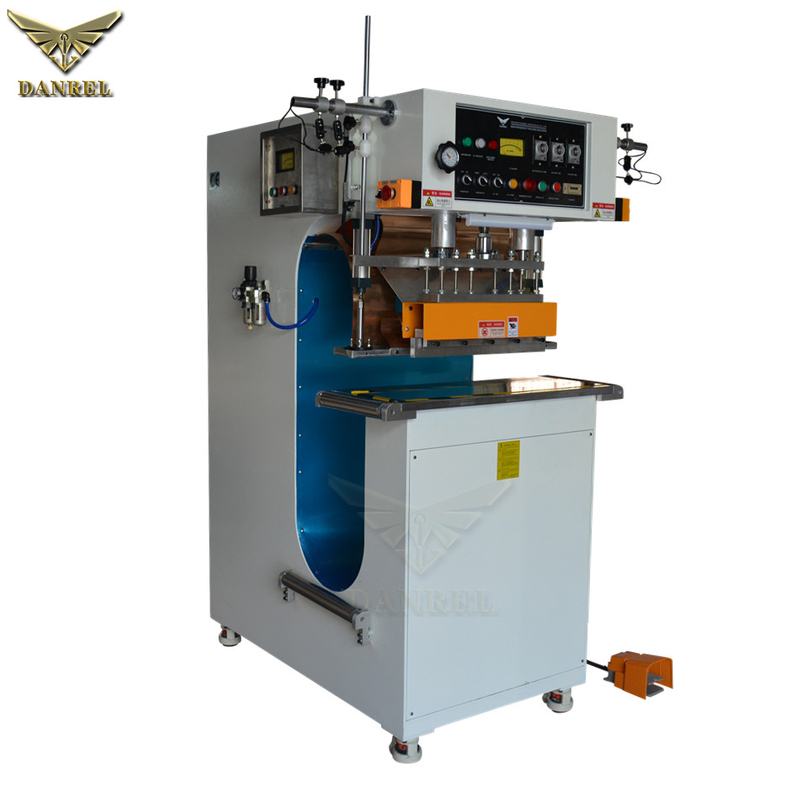

Small 5KW HF Welder Tents High Frequency PVC Coated Fabric Welding Machine

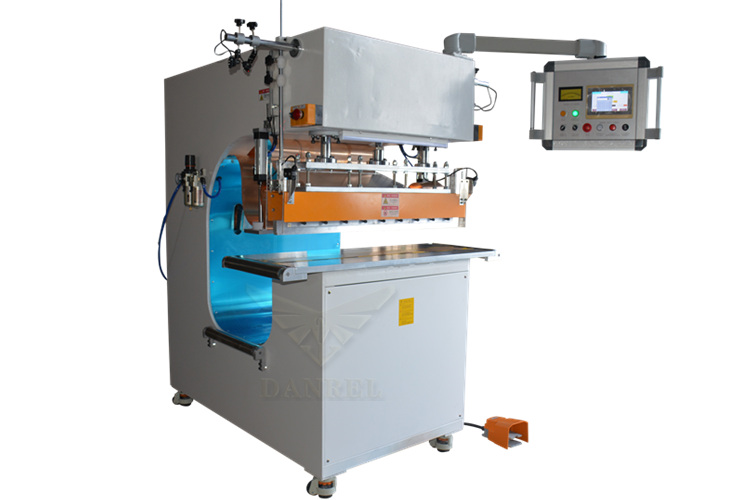

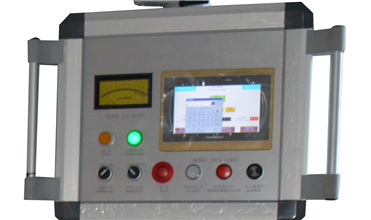

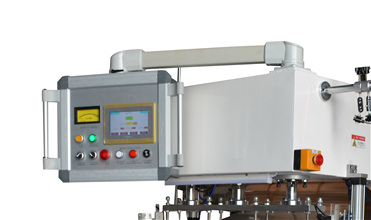

PLC + Touch Screen (optional)

1. A touch screen operation panel for fast & easy parameters setting, including Time and Welding Current.

2. English language setting.

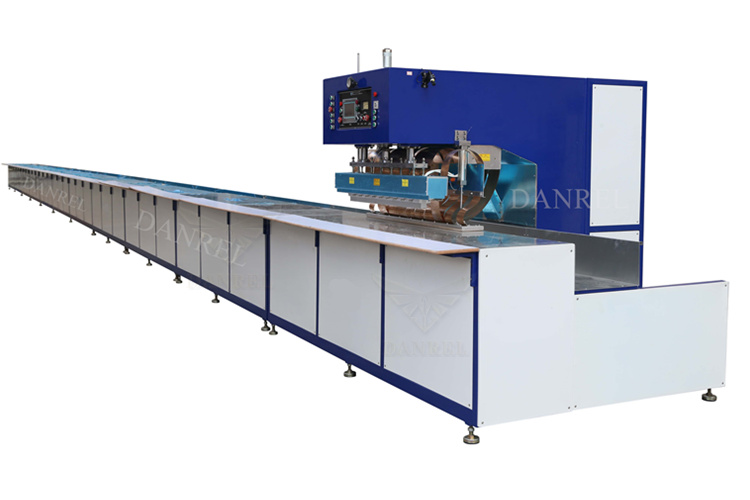

Travelling Arm(optional)

Equipped with a travelling arm, the operation can move the operation to the right & left & front, which makes the production easier and more convenient.

Small 5KW HF Welder Tents High Frequency PVC Coated Fabric Welding Machine
Small 5KW HF Welder Tents High Frequency PVC Coated Fabric Welding Machine

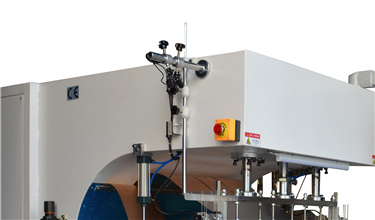

Name: Infrared Laser Positioning

Laser Guide Projectors – projecting laser lines (easy for operator's eyes) for quick material guidance on the work table

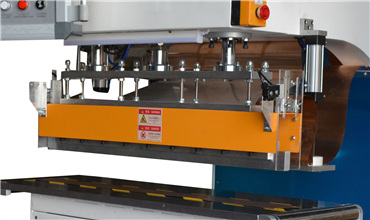

Name: Limit Switch
The gap between the upper electrode(welding bar) to the lower electrode(table) can be adjusted.

Safety-Hand Device(Optional Device)

When there is a objected being detected, the welding head(welding mould) retreats automatically to avoid hurting the operator. There are two safety devices on the two sides of the upper electrode.

Small 5KW HF Welder Tents High Frequency PVC Coated Fabric Welding Machine
Small 5KW HF Welder Tents High Frequency PVC Coated Fabric Welding Machine

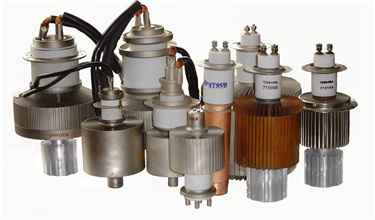

Name: Power Grid tube

Brand: JINGGUANG or TOSHIBA
Original: CHINA or JAPAN
High Q value Power grid tube, durable, stable and reliable in output. European-model square high frequency vibration cavity.

Certifications

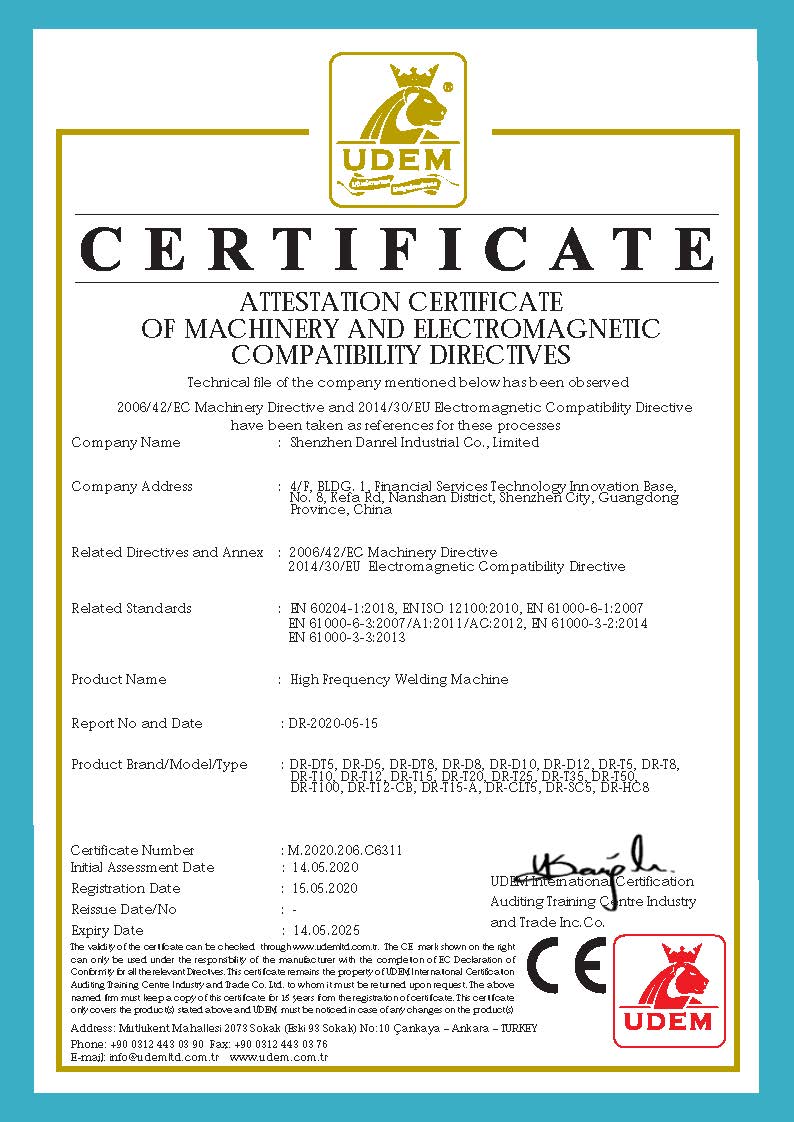

Shenzhen Danrel CE Certificate
Shenzhen Danrel CE Certificate
Shenzhen Danrel Patent Certificate
Our Company
Shenzhen Danrel Office
Shenzhen Danrel Meeting Room
SHENZHEN DANREL INDUSTRIAL CO., LTD
SHENZHEN DANREL INDUSTRIAL CO., LTD
SHENZHEN DANREL INDUSTRIAL CO., LTD
SHENZHEN DANREL INDUSTRIAL CO., LTD

Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. DANREL High Frequency PVC Tarpaulin Welding Machine.

* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier

FAQ
SHENZHEN DANREL INDUSTRIAL CO., LTD

Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .

Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.

Small 5KW HF Welder Tents High Frequency PVC Coated Fabric Welding Machine

Parameters: High Frequency PVC Tarpaulin Canvas Welding Machine


Model No.

DR-T5-F

DR-T8-F

DR-T12-F

DR-T15-F

HF Power

5KW

8KW

12KW

15KW

Power Input

8.5KVA

15KVA

18KVA

25KVA

Voltage

AC 220V/380V

AC 380V

AC 380V

AC380V

Frequency

27.12MHz

13.56MHz

Upper Electode

50*50*600MM

50*50*600MM

50*50*800MM

50*50*900MM

Lower Electrode Size

350*700MM

500*800MM

400*1000MM

400*1150MM

Stroke

150MM


Oscillation Tube

7T85RB

7T69RB

E3130

8T85RB

Welding Time

1-10S/1-30S

Weight

580 KGS

750 KGS

920 KGS

1100KGS

Dimension

142*100*193CM

145*105*196CM

150*110*205CM

178*122*205CM
