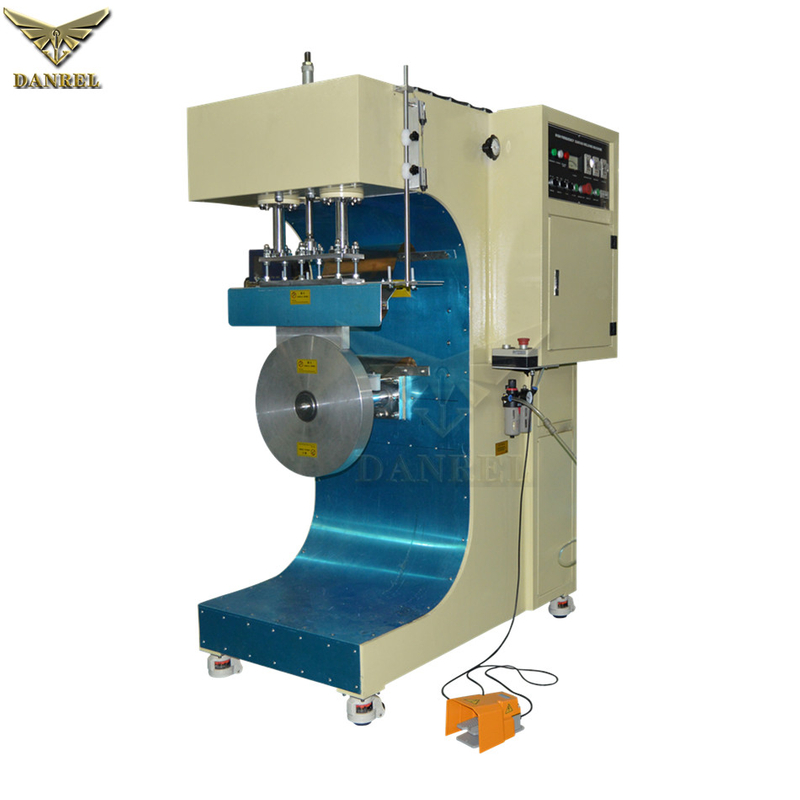

Item: PVC Vinyl High Frequency HF Curved Welding Machine
Model No.: DR-HC08
* Features:
1. This machine is designed for Cuvred Welding of Radio frequency technology
2. Welding Bar size and lower electrode(the round disk) can be customized as customer's request
3. High sensitive anti-spark tube to protect the welding bar and welding products.
4. PLC touch screen control, streched table or other functions can be customized.
5. European-model square high frequency vibration cavity, more reliable and stable in output
6. High Frequency Power can be 5-35KW, according to different welding size requirement.
7. Application: Inflatable boats, water bladder, PVC tubes
Technical Data: High Frequency Curved Welding Machine
| Model No. | DR-HC08 |
| H.F Power | 8KW |
| Power input | 15KVA |
| Voltage | AC 380V 3P (Can be customized) |
| Frequency | 27.12MHz |
| Driven Mode | Pneumatic |
| MAX Pressure | 800KGS |
| Stroke | 200MM |
| Upper Electrode Size | Curved Electrode, 36mm Width |

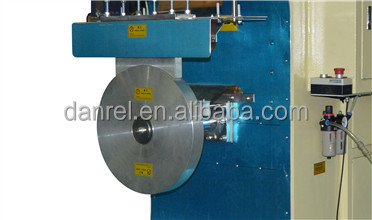

| Lower Electrode Size | Diameter 450mm Disk(Can be Customized) |

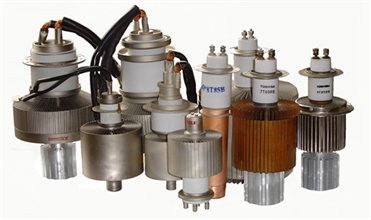

| Oscillation tube | Japan TOSHIBA 7T69RB |
| Weld time | 1-10 S (Adjustable) |
| Gross weight | 800 KGS |
| Dimension | L*W*H: 1295*700*2118 MM |

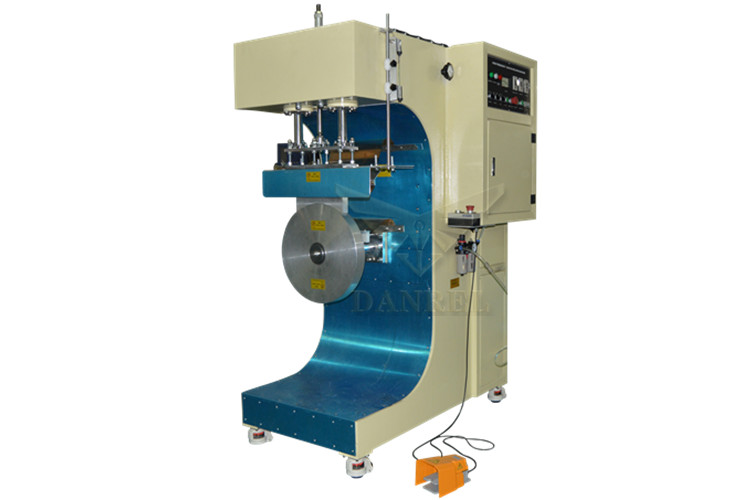

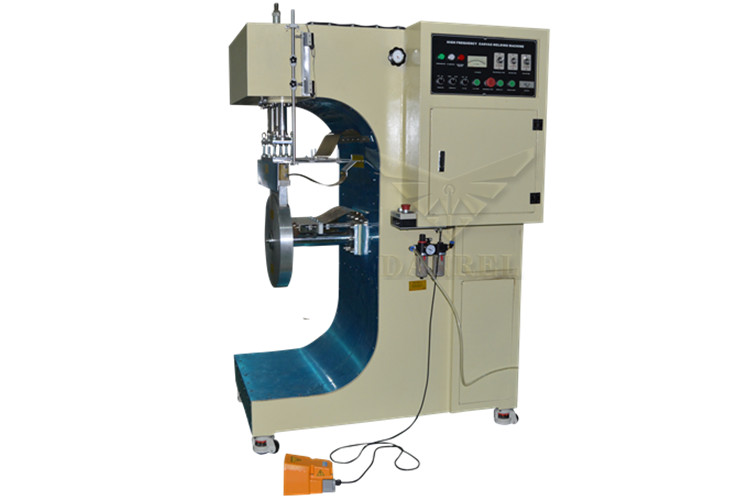

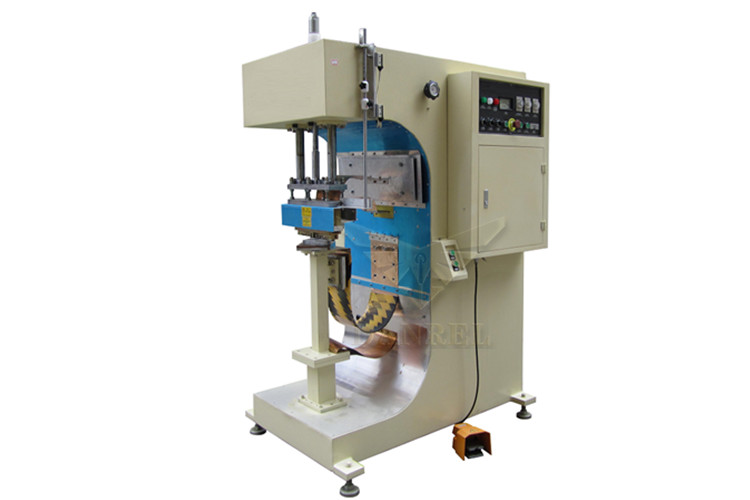

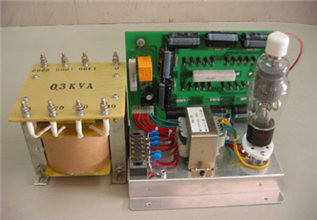

Details of High Frequency Curved Welding Machine
Samples: High Frequency Curved Welding Machine
Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery.
* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and trainning?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compresor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
