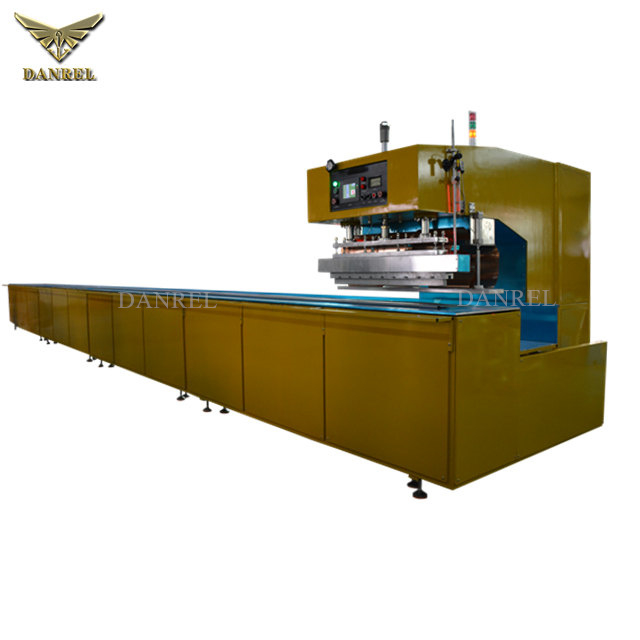

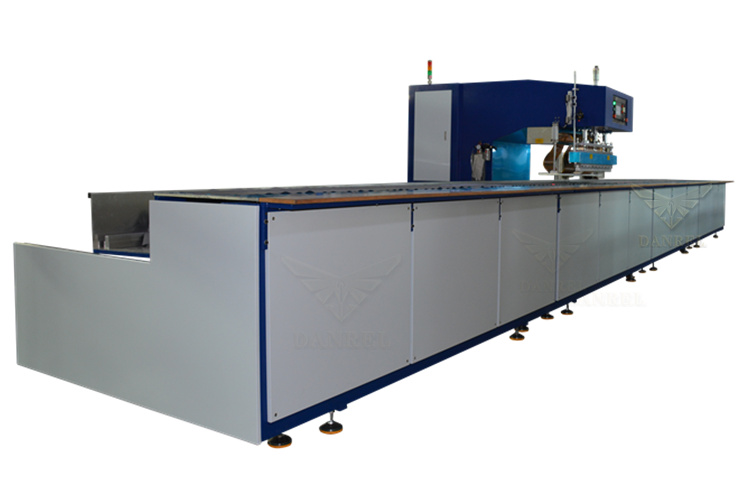

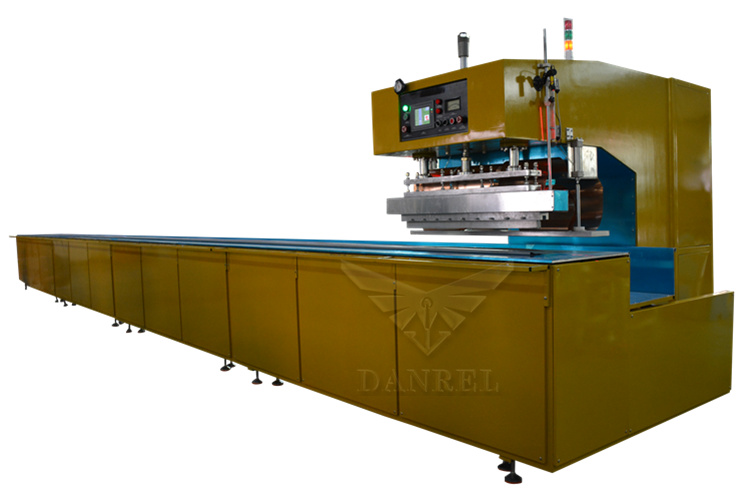

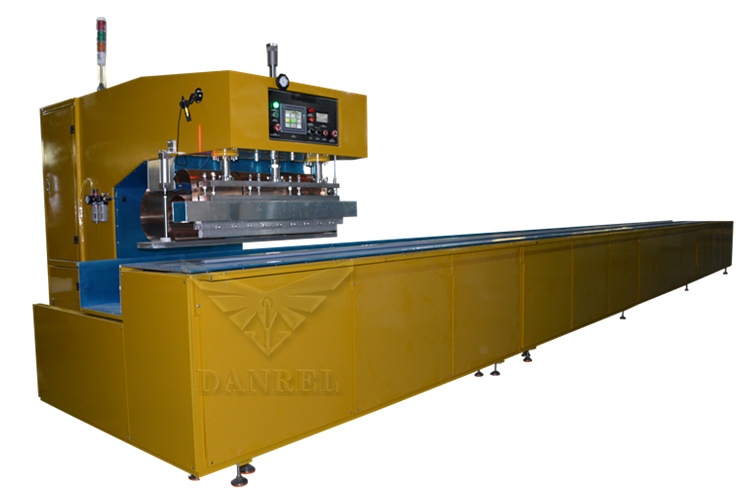

Automatic Walking High Frequency Welding Machine for PVC Tents, Water Bladders

Automatic Walking High Frequency Welding Machine, High Frequency Power available in 12KW, 15KW, 25KW, 35KW

Availability:

Quantity:



Inquire Add to Basket

Model:
DR-T15-A
Brand:
DANREL

Product Description

ITEM: Automatic Walking High Frequency Welding Machine for PVC Tents, Water Bladders

Model No.: DR-T15-A

Product Description

 Color Customization Offered

Main Features

1. Automatic travelling welding head, the table can be up to 72 meters long.

2. PLC/HMI touch screen - quick, easy parameter input and adjustment.

3. HF Power ranges from 5-35KW to meet any welding bar size.

4. RF emission protection design.

5. Deep trough creating ample space behind the electrode for easy material handling.

6. The Welding bar length & width & shape can be customized, fast changeover capable.

7. European-model square high frequency vibration cavity, more reliable and stable in output

8. Single line or two lines continue welding, welding length can be ordered as special need.

9. Easier material placement and better visualization of weld with built in LED illumination

10. Customized work table dimensions, electrode holder dimensions

11. Laser Guide Projectors–laser lines (easy for operator's eyes) for quick material guidance on the work table

12. High sensitive anti-spark tube to protect the welding bar and welding products.

Advantages

1. Automatic manufacturing;

2. Convenient operation;

3. Simple to use;

4. Easy Maintenance;

5. Strong Bonding;

Model NO.	DR-T15-A
High Frequency Power	15KW(15/25/35KW machines available)
Power Input	25KVA
Voltage	AC 380V 3P(Can be customized)
Frequency	27.12 MHz
Power Grid Tube	TOSHIBA 8T85RB
Upper Electrode	1000MM(customization offered)
Lower Electrode	Worktable Up to 72 meters
Spark Tube	NL-5557
Welding Time	1-30 seconds
Weight	2800 KGS

APPLICATION OF HIGH FREQUENCY CANVAS WELDING MACHINE

Tents, awning, trucks covers, Membrane Curtains, Swimming pool covers, Temporary shelters, billboards, sunshades, oil booms, army tents, tents, structural membranes, pool-liners, water cisterns, TPU water tanks, canopy, painting canvas, sun shades canvas, film curtain, etc

Main Parts

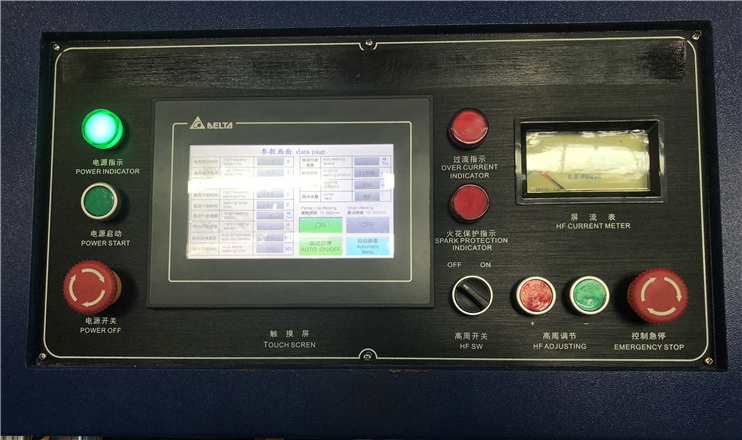

PLC HMI

Name: PLC and touch screen for fast and easy parameter settings.
Brand: Mitsubishi or DELTA
Language: English

Travelling System

Name: Tray and Towline
Driven Mode: Servo Motor
Servo Brand: Mitsubishi or Panasonic

Infrared Laser Positioning

Laser Guide Projectors – projecting laser lines (easy for operator's eyes) for quick material guidance on the work table
Name: Limit Switch
The gap between the upper electrode(welding bar) to the lower electrode(table) can be adjusted.e

Power Grid Tube

Brand: JINGGUANG or TOSHIBA(CANON)

Original: CHINA or JAPAN

High Q Value Power grid tube, durable, stable and reliable in output. European-model square high frequency vibration cavity.

Name: Anti-spark Tube

Brand: NL-5557
All our machine equipped with Anti-spark tube to avoid spark, it's function is to protect the welding moulds being damages by the sparks.

Certifications

CE Certificate-DANREL High Frequency Welding Machine

Packing & Delivery

Packing Photo-DANREL High Frequency Welding Machine

Packaging Size For 12 Meters Machine
Size	Case 1 LWH=320210215 CM Case 2 LWH= 320190175 CM
Weight	3800KGS
Packaging Details	The normal package is standard export plywood box. The wooden box(solid wooden if any) will be fumigated. If container is too tight, we will use pe film for packing or pack it according to customers special request.

Our Company

Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery.

* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier

FAQ

Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .

Our Service

Customer's site installation, training & maintenance available
12-24 hours Online service by Email, Video Online for basic setup and repairs
12 months warranty for machine, life-long tech. support
Providing assistance in manufacturing and modifying tools;
Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
