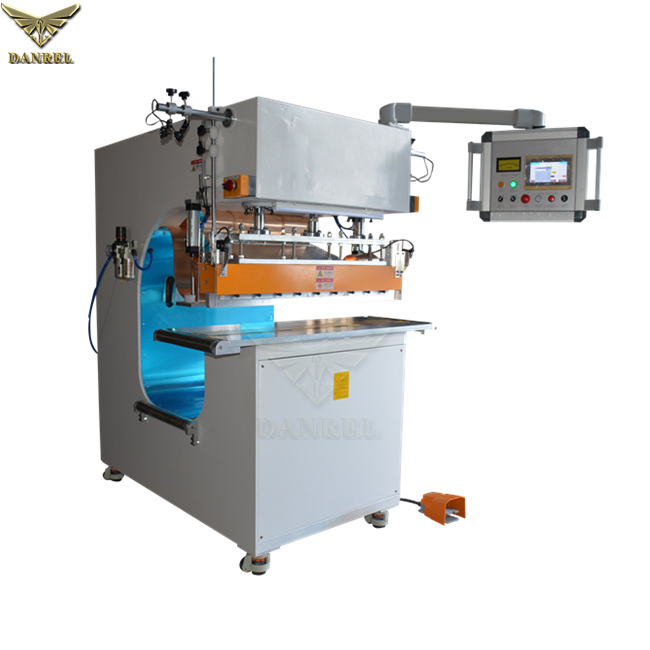

PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings

Quantity:
  • DR-T10-F1(PLC)
  • DANREL

PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings

Product Description

DANREL HIGH FREQUENCY CANVAS WELDING MACHINE

High Frequency PVC Tarpaulin Welding Machine only works with thermoplastics that have a high dielectric constant. In this process, an electric field is generated near the joint, the direction of which is alternated approximately twenty-seven million times a second. Every time the electric field changes, the dipole molecules of the polymer attempt to flip around to realign themselves to the new field orientation. Because this movement is impaired by inertia and friction, the molecules do not flip in unison. This constant relative movement of the molecules results in inter molecular friction which results in heat and, subsequently, melting. Radio Frequency welding typically has weld cycle times from two to five seconds and can handle parts from approximately one-thousandths inches thick to fifty-thousandths inches thick.

Main Features:
1. PLC touch screen operation for easy & fast parameters input.

2. Equipped with a "Safety Hand Device".

3. Equipped with a travelling arm for more convenient operation.

4. The Welding bar Length, width can be adjusted, fast changeover.
5. European-model square high frequency vibration cavity, more reliable and stable in output
6. Single line or two lines continue welding, welding length can be ordered as special need.
7. Deep groove welded steel structure, suitable for big size material welding.
8. Customized work table dimensions, electrode holder dimensions
9. Laser Guide Projectors – projecting laser lines (easy for operator's eyes) for quick material guidance on the work table
10. High sensitive anti-spark tube to protect the welding bar and welding products.
11. PLC touch screen control, stretched table or other functions can be customized.


Technical parameters

Model No
DR-T5
DR-T10
DR-T12
DR-T15
HF Power
5KW
10KW
12KW
15KW
Power input
8.5KVA
18KVA
20KVA
25KVA
Power Supply
AC 220/380V/440V 50Hz-60HZ or customize
Upper Electrode
50*50*500mm
50*50*800mm
50**50*800mm
       50*50*900mm
Worktable
350*700mm
400*1050mm
450*1050mm
450*1150mm
Oscillation Tube
7T85RB
E3069
E3130
8T85RB
Spark Tube
NL-5557
Stroke
150MM
Working Pressure
Air Compressure 0.5-0.7 MPa
Welding Time
1-30 s(customization offered)
Weight(KGS)
700
850
900
1160
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings

APPLICATION OF HIGH FREQUENCY CANVAS WELDING MACHINE

Tents, awning, trucks covers, Membrane Curtains, Swimming pool covers, Temporary shelters, billboards, sunshades, oil booms, army tents, tents, structural membranes, pool-liners, water cisterns, TPU water tanks, canopy, painting canvas, sun shades canvas, film curtain, etc

PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings
Certifications
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings
Packing & Delivery
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings
Packaging
Size
L*W*H=1650*1350*2100MM
Weight
980 KGS



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings
Our Company
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings

Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. High Frequency Welding Machine For Conveyor Belt

* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier

FAQ
PLC Touch Screen Operation Radio Frequency & High Frequency PVC Tarpaulin Welding Machine for Tents, Water Tanks, Awnings, Shadings

Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
