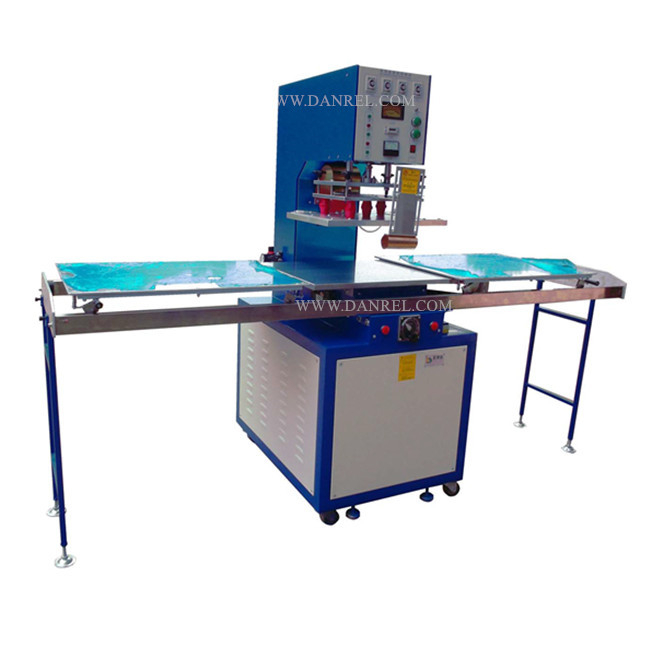

Shuttle Tray 8KW High Frequency Welding Machine for PVC Carpets, PVC Coil Mats

Quantity:
  • DR-T8KW
  • DANREL

Shuttle Tray 8KW High Frequency Welding Machine for PVC Carpets, PVC Coil Mats

https://youtu.be/tC3nf_eddN0




Item.: Shuttle Tray 8KW High Frequency Welding Machine for PVC Carpets, PVC Coil Mats

Model No.: DR-T8KW

Main Features:

1. High Q Value oscillation tube, stable and reliable in output

2. Anti-spark device to protect the electrode and material

3. Available in rotary table and sliding table

4. Self-protection device to avoid the damage from over current



Typical Application

Clamshell blister packing, Carpets, PVC floor mats, PVC bags, inflatable toys, sun visors, PVC toilet seats, etc



Technical Data: High Frequency Welding Machine for PVC Carpets


       Model No.

DR-T5

DR-T8

DR-T12

高周功率HF Power

5KW

8KW

12KW

电源输入Power Input

8.5KVA

15KVA

18KVA

电压Voltage

AC 220V/380V

AC 380V

AC 380V

高周频率Frequency

27.12MHz

操作方式Operation Mode

Turntable or Sliding Table

上电极尺寸

200*350MM

400*600MM

450*650MM

下电极尺寸Electrode Size

400*600MM

600*800MM

650*750MM

行程Stroke

150MM

电子管Oscillation Tube

7T85RB

7T69RB

E3130

温控Heating Temperature

0-400C

焊接时间Welding Time

1-10S

重量Weight

450 KGS

550 KGS

650 KGS

尺寸Dimension

1100*800*1860 MM

1100*1100*2050 MM

1200*1200*2050MM


Shuttle Tray 8KW High Frequency Welding Machine for PVC Carpets

PVC Carpets Samples and Tooling

Samples of High Frequency Welding Machine for PVC Carpets

Main Parts
Shuttle Tray 8KW High Frequency Welding Machine for PVC Carpets, PVC Coil Mats


Main Parts

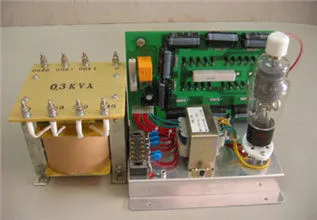

Name: Power Grid Tube

Brand: TOSHIBA

Original: Japan

High Q value tube, strong high frequency power output, stable performance, long term service life.


Name: Anti-spark Tube
Brand: NL-5557
Original: USA
All our machine equipped with Anti-spark tube to avoid spark, it's function is to protect the welding moulds being damages by the sparks.

Shuttle Tray 8KW High Frequency Welding Machine for PVC Carpets, PVC Coil Mats


Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
