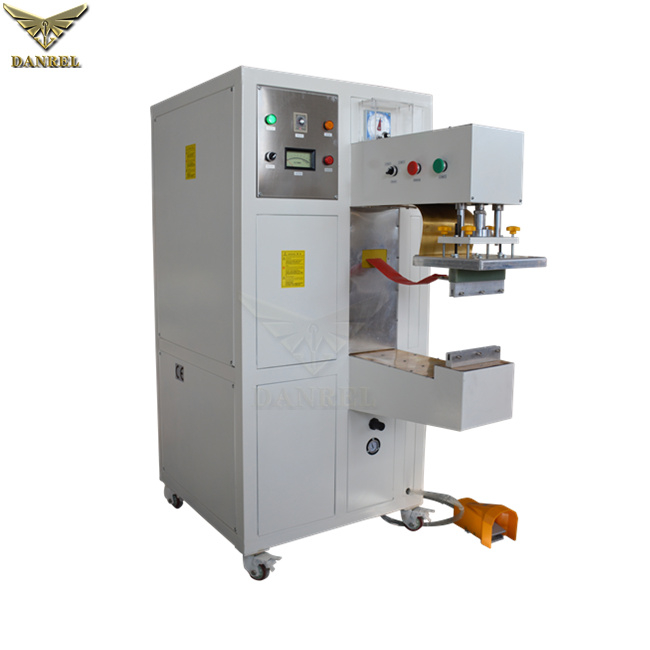

Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders

Availability:
Quantity:
  • DR-T5-G

  • DANREL

Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders

Product Description

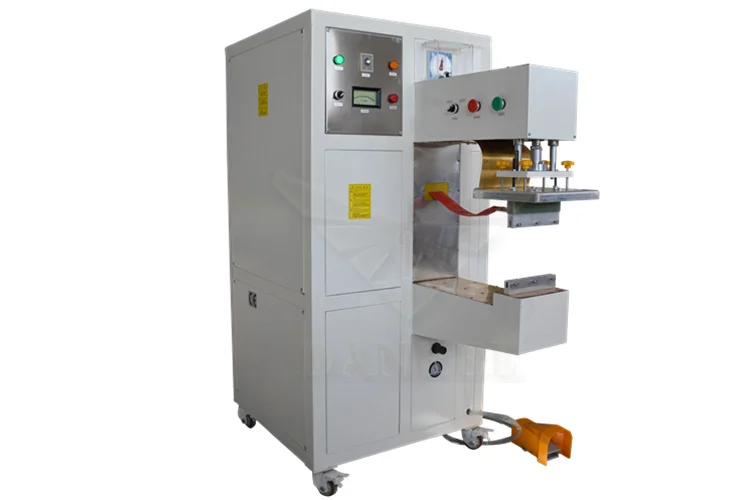

Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders

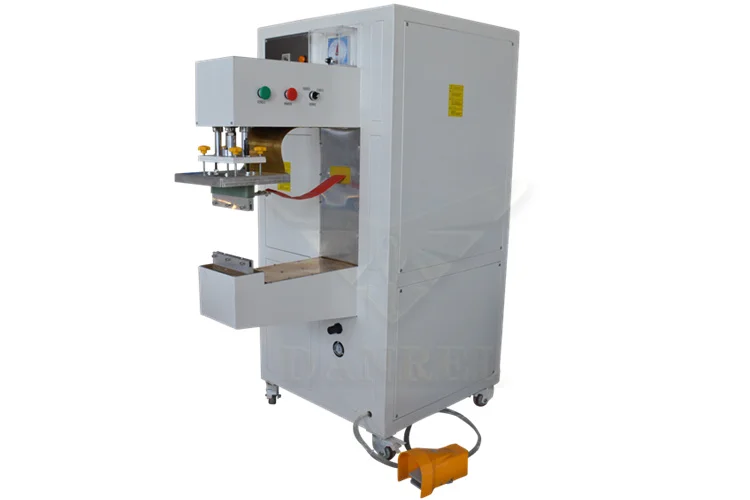

Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders
Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders
Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders

Features

1. The machine is compact design for easy installation & operation and low maintenance required.

2. The maximum pressure of foot pedal can reach up to 400KGS so as to meet most operating conditions

3. Output power can be akjusted at the tuner according to electrode size and material thickness.

4. Equipped with start & stop buttons on both sides which allows the operator to use the machine on two sides.

5. The direction of the electrode holder can be 90 degree turned for increased flexibility.

6. The overload relay functions automtically to protect oscillation tubes and rectifier.

7. Equipped with anti-spark device which is able to cut high frequency immediately to suppress arcs and minimize damage to electrodes and materials when sparks occurs

8. Quick change tooling capable -- reduces downtime during tooling(electrode) changeover for difference applications.

9. Solid-steel structure design can last for multiple decades.

10. Imported components, stable performance, CE certificate


Operation Steps

(1). Before using the machine, the HF Switch is OFF.(HF Switch is a twist switch)

(2). Press the foot pedal to bring down the upper electrode, the operator foot remains pressed on the foot pedal.

(3). Twist HF Switch to ON. (4). Push Start Button to start welding. (5). When the welding time expires, the operator foot releases the foot pedal, and the upper electrode goes up. (6). The operator can press the start button to restart the welding if the welding is not strong enough.
Model NO.
DR-T5-G
High Frequency Power
5KW
Power Input
8.5KVA
Voltage
AC 380V 3P(Can be customized)
Frequency
27.12 MHz
Power Grid Tube Model
7T85RB
Upper Electrode Holder
200*50 MM
Opearation
Foot Paddle
Spark Tube
NL-5557
Welding Time
1-30 seconds
Weight
350 KGS
Main Parts
Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders


Main Parts

Name: Power Grid Tube

Brand: TOSHIBA

Original: Japan

High Q value tube, strong high frequency power output, stable performance, long term service life.


Name: Anti-spark Tube
Brand: NL-5557
Original: USA
All our machine equipped with Anti-spark tube to avoid spark, it's function is to protect the welding moulds being damages by the sparks.

Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders
Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders



Pneumatic Parts

Name: Solenoidvalve
Brand: AirTAC
Original: TAIWAN



Pneumatic Parts

Name: Air Cylinder
Brand: AirTAC
Original: TAIWAN

Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders


Certifications
Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders
Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders
Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders
Packing & Delivery
Packaging
Size
L*W*H=1430*910*1810MM
Weight
350 KGS



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders
Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders
Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders
Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders
Our Company
Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders
Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders
Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders
Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders
Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders
Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders

Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. High Frequency Welding Machine For Conveyor Belt

* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier

FAQ
Customizable Solution Gudgeon Arm High Frequency PVC Tarpaulin Welding Machine For Flexible Tanks, Drums and Bladders

Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
