15KW & 25KW Gudgeon Arm RF Welders High Frequency Welding Machine For Round Shape PVC Water Tanks

Availability:
Quantity:
  • DR-T25-G

  • DANREL

Product Description

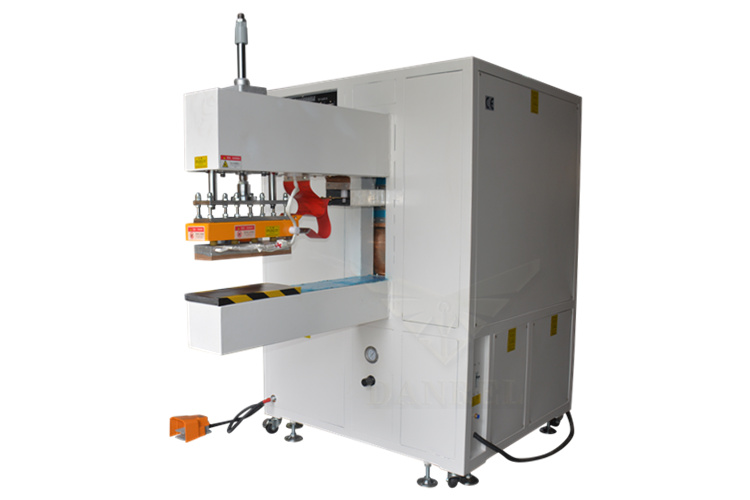

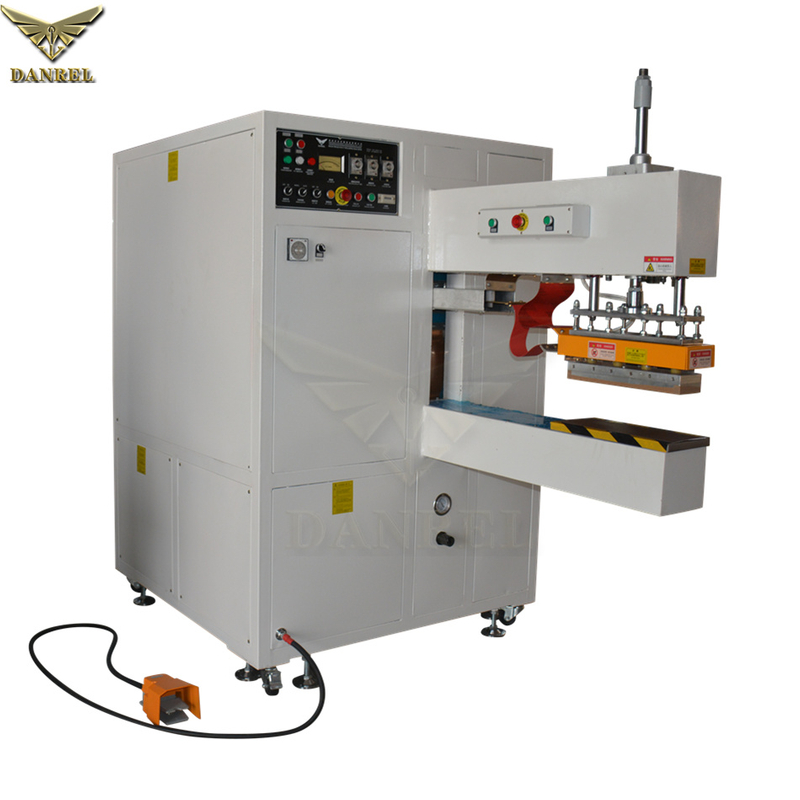

15KW & 25KW Gudgeon Arm RF Welders High Frequency Welding Machine For Round Shape PVC Water Tanks
15KW & 25KW Gudgeon Arm RF Welders High Frequency Welding Machine For Round Shape PVC Water Tanks

Features

1. The machine is compact design for easy installation & operation and low maintenance required.

2. Gudgeon arm design is ideal for making round shape products.

3. Output power can be adjusted at the tuner according to electrode size and material thickness.

4. Equipped with start & stop buttons on both sides which allows the operator to use the machine on two sides.

5. The overload relay functions automatically to protect oscillation tubes and rectifier.

6. Equipped with anti-spark device which is able to cut high frequency immediately to suppress arcs and minimize damage to electrodes and materials when sparks occurs

7. Quick change tooling capable -- reduces downtime during tooling(electrode) changeover for difference applications.

8. The maximum pressure of foot pedal can reach up to 1000KGS so as to meet most operating conditions.

9. Solid-steel structure design can last for multiple decades.

10. Imported components, stable performance, CE certificate

Model NO.
DR-T5-G
DR-T15-G
DR-T25-G
High Frequency Power
5KW
15KW
25KW
Power Input
8.5KVA
25KVA
35KVA
Voltage
AC 380V 3P(Customization Offered)
Frequency
27.12 MHz
Power Grid Tube Model
7T85RB
8T85RB
8T25RA
Welding Area
400*30MM
(Customization Offered)
400*50MM
(Customization Offered)
400*100MM
(Customization Offered)
Opearation
Foot Pedal or Buttons
Spark Tube
NL-5557
Welding Time
1-30 seconds
Weight
250 KGS
1000 KGS
1250 KGS
Dimension(L*W*H)
1250*750*1650MM
2250*1300*1900MM
2250*1300*1900MM
Main Parts

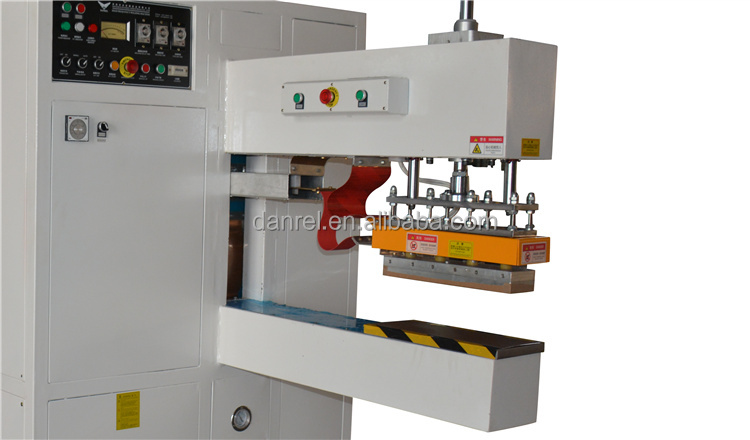

Gudgeon arm design, ideal for making curve seam(for making round shape products).

The arm length can be customized based on the production demands.

15KW & 25KW Gudgeon Arm RF Welders High Frequency Welding Machine For Round Shape PVC Water Tanks
15KW & 25KW Gudgeon Arm RF Welders High Frequency Welding Machine For Round Shape PVC Water Tanks

Name: Power Grid Tube

Brand: JINGGUANG OR TOSHIBA(CANON)

Original: China or Japan

High Q value tube, strong high frequency power output, stable performance, long term service life.

Name: Anti-spark Tube

Brand: NL-5557

Original: USA

All our machine equipped with Anti-spark tube to avoid spark, it's function is to protect the welding moulds being damages by the sparks.

15KW & 25KW Gudgeon Arm RF Welders High Frequency Welding Machine For Round Shape PVC Water Tanks

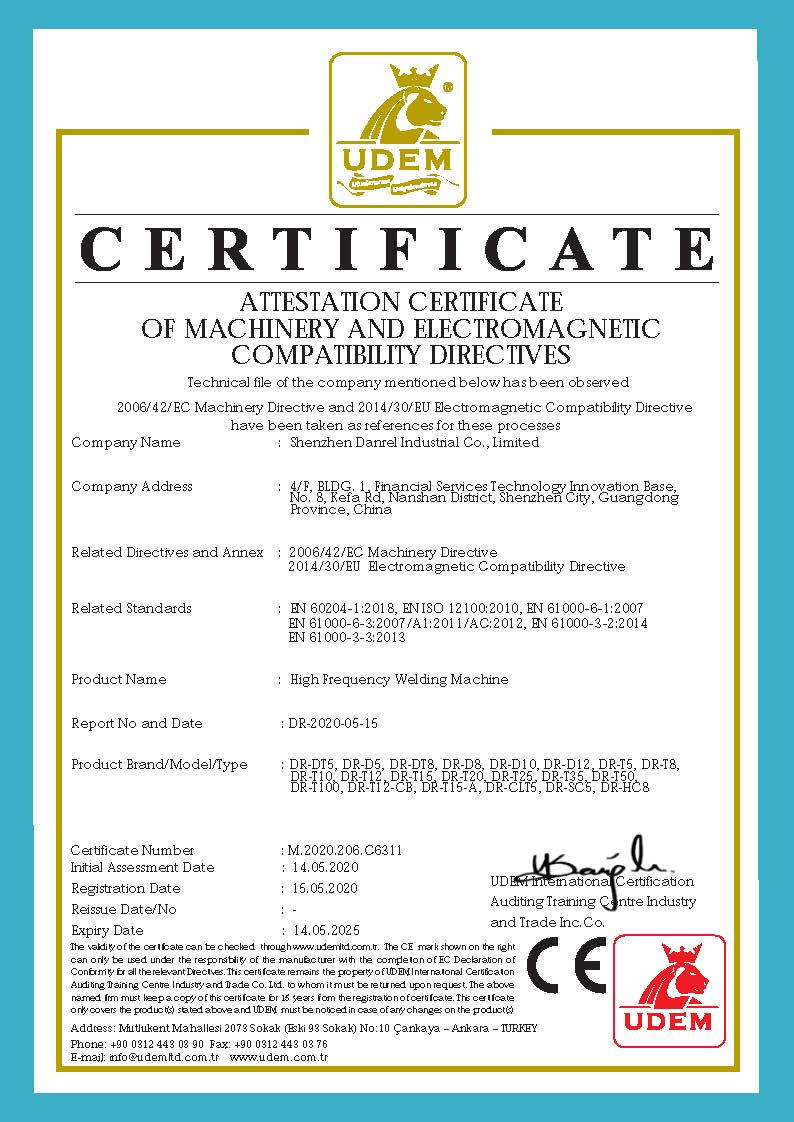

Certifications
15KW & 25KW Gudgeon Arm RF Welders High Frequency Welding Machine For Round Shape PVC Water Tanks
15KW & 25KW Gudgeon Arm RF Welders High Frequency Welding Machine For Round Shape PVC Water Tanks
15KW & 25KW Gudgeon Arm RF Welders High Frequency Welding Machine For Round Shape PVC Water Tanks
Our Company
15KW & 25KW Gudgeon Arm RF Welders High Frequency Welding Machine For Round Shape PVC Water Tanks
15KW & 25KW Gudgeon Arm RF Welders High Frequency Welding Machine For Round Shape PVC Water Tanks
15KW & 25KW Gudgeon Arm RF Welders High Frequency Welding Machine For Round Shape PVC Water Tanks
15KW & 25KW Gudgeon Arm RF Welders High Frequency Welding Machine For Round Shape PVC Water Tanks
15KW & 25KW Gudgeon Arm RF Welders High Frequency Welding Machine For Round Shape PVC Water Tanks
15KW & 25KW Gudgeon Arm RF Welders High Frequency Welding Machine For Round Shape PVC Water Tanks

Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. DANREL Hot Plate Welding Machine.

* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier

FAQ
15KW & 25KW Gudgeon Arm RF Welders High Frequency Welding Machine For Round Shape PVC Water Tanks

Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .

Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
