Noise FREE 15KHz 4200W 6000W Sonic Welder High Power Ultrasonic Plastic Welding Machine with Sound Enclosure

Availability:
Quantity:
  • DR-1542-Cover

  • DANREL

Product Description

DANREL ULTRASONIC PLASTIC WELDING MACHINE

The process of ultrasonic welding eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic welding with the proper time setting and pressure is the fastest most reliable method for thermoplastic parts welding.
* Eliminate use of consumable material
* Produce airtight and watertight seams
* Increase production time


Main Features
1. Equipped with automatic ultrasound shelter which provides a noise free working environment.
2. Welding by time, delay time, weld time and hold time. Working pressure is adjustable.
4. Precise and high quality imported pneumatic parts
5. High quality transducer and booster.
6. Self-protection: Over-Current, Frequency Deviation, Over-Temperature
7. Available in 4 frequencies – 15 Khz, 20 Khz 35 KHz and 40 KHz.
8. Quick application changeover, high welding seam strength.
9. Suitable for high cadences and short cycle times.

Model No
DR-1542-Cover
Ultrasonic Power
4200 W
Frequency
15 KHz
Power Supply
AC 110/220V, 50/60Hz
Delay Time
0.01-9.99 S
WeldTime
0.01-9.99 S
Hold Time
0.01-9.99 S
Driven Mode
Pneumatic
Stroke
75 MM
Welding Area
Diameter. 300 MM
Working Pressure
0.4-0.7 MPa
Packing Dimension
1200*1000*2200 MM
Gross Weight
550 KGS
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure

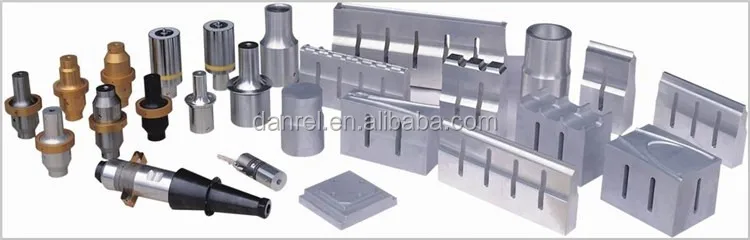

Ultrasonic Horn/Fixture, welding tools design service available.

High Power Ultrasonic Plastic Welding Machine with Sound Enclosure

The machine can be Customized to automated as customer's request

High Power Ultrasonic Plastic Welding Machine with Sound Enclosure

DANREL Ultrasonic plastic welding machine is widely used in automotive industry, electronic industry, medical industry, household appliances, woven apparel, office supplies, packaging industry, toy industry, and so on.

Automotive  industry: plastic body parts, car doors, automotive dashboard, lights, mirrors, sun visor, interior parts, filters, reflective material, reflective spike, bumper, cable, plastic filter for motorcycle , Radiator, brake fluid tank, oil cups, water tanks, fuel tank, air hose, exhaust purifiers, the tray plate, and so on.

Plastic Electronics: prepaid water meters, communications equipment, cordless phones, mobile phone accessories, cell phone case, battery case, charger, maintenance valve regulated lead-acid batteries, 3-inch floppy disk, U disk, SD card, CF card, USB connection, Bluetooth devices, and so on.

Stationery: folder, album, folding boxes, PP hollow board, pen loops, ink cartridges, toner cartridges, and so on.

Medical and Daily products: watches, kitchen utensils, oral liquid bottle caps, drip caps, mobile phone accessories, golden soft brush, and daily necessities, handle, security caps, cosmetics bottle, coffee pot, washing machines, air dehumidifiers, Electric irons, electric kettles, vacuum cleaners, speakers, cover and metal face grille and other civil engineering and so on.

Health  products: children's products, air mattresses, clothes hangers, gardening supplies, kitchenware sanitary ware, shower, shower head, and so on.

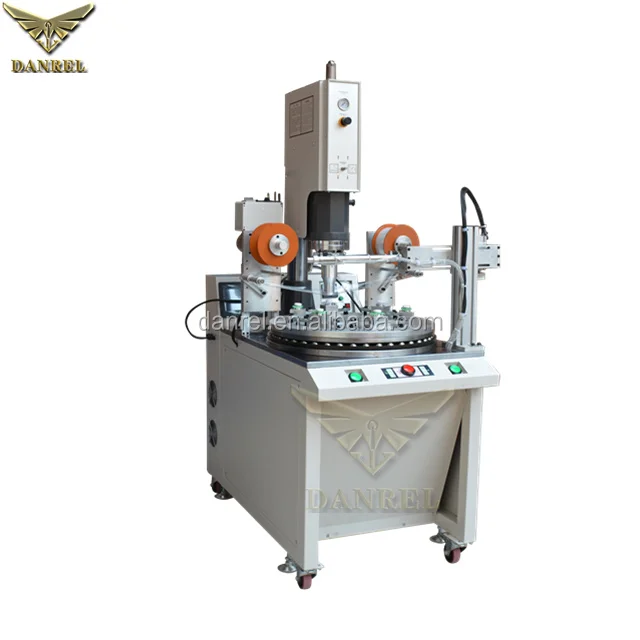

China High Speed Plastic Sonic Welder, Rotary Table Ultrasonic PP Pacifier Welding Machine with Unloader and Film FeederHigh Power Ultrasonic Plastic Welding Machine with Sound Enclosure
Detailed Images
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure

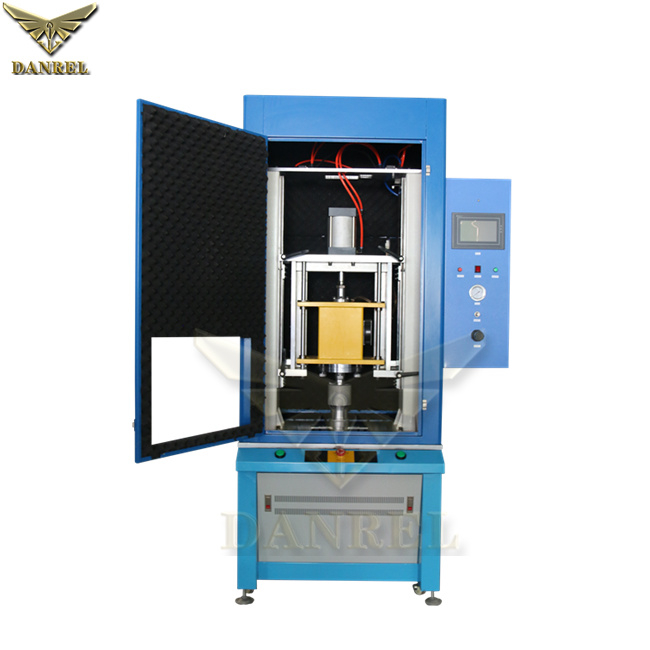

Machine Part
* The whole working zone is covered by a ultrasound shelter, which provides a noise free working environment.
* The shelter door is automatic ascending & descending;
* The shelter is consist of Sound absorbent cottons




MACHINE DETIALS



* Equipped with four horizontal level adjusting screws, fast horn changeover for different applications.

* Height is adjustable to match different size horn, distance max. to 170MM

High Power Ultrasonic Plastic Welding Machine with Sound Enclosure
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure



MACHINE Parts

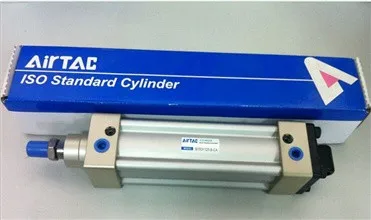

Name: Air Cylinder

Brand: AirTAC

Original: TAIWAN

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.



MACHINE Parts

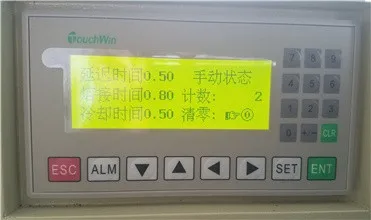

Name: PLC
PLC control for parameter setting, English and Chinese version

High Power Ultrasonic Plastic Welding Machine with Sound Enclosure
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure



MACHINE PARTS

Name: Transducer
Brand: FUJI
Original: JAPAN
Adopts Japan FUJI Piezoelectric ceramic, stable and durable.




MACHINE PARTS

Equipped with Amplitude Reader

The operation can read the meter to know machine welding setting, so we can set a suitable welding power and welding time to weld a good result.


High Power Ultrasonic Plastic Welding Machine with Sound Enclosure
Certifications
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure

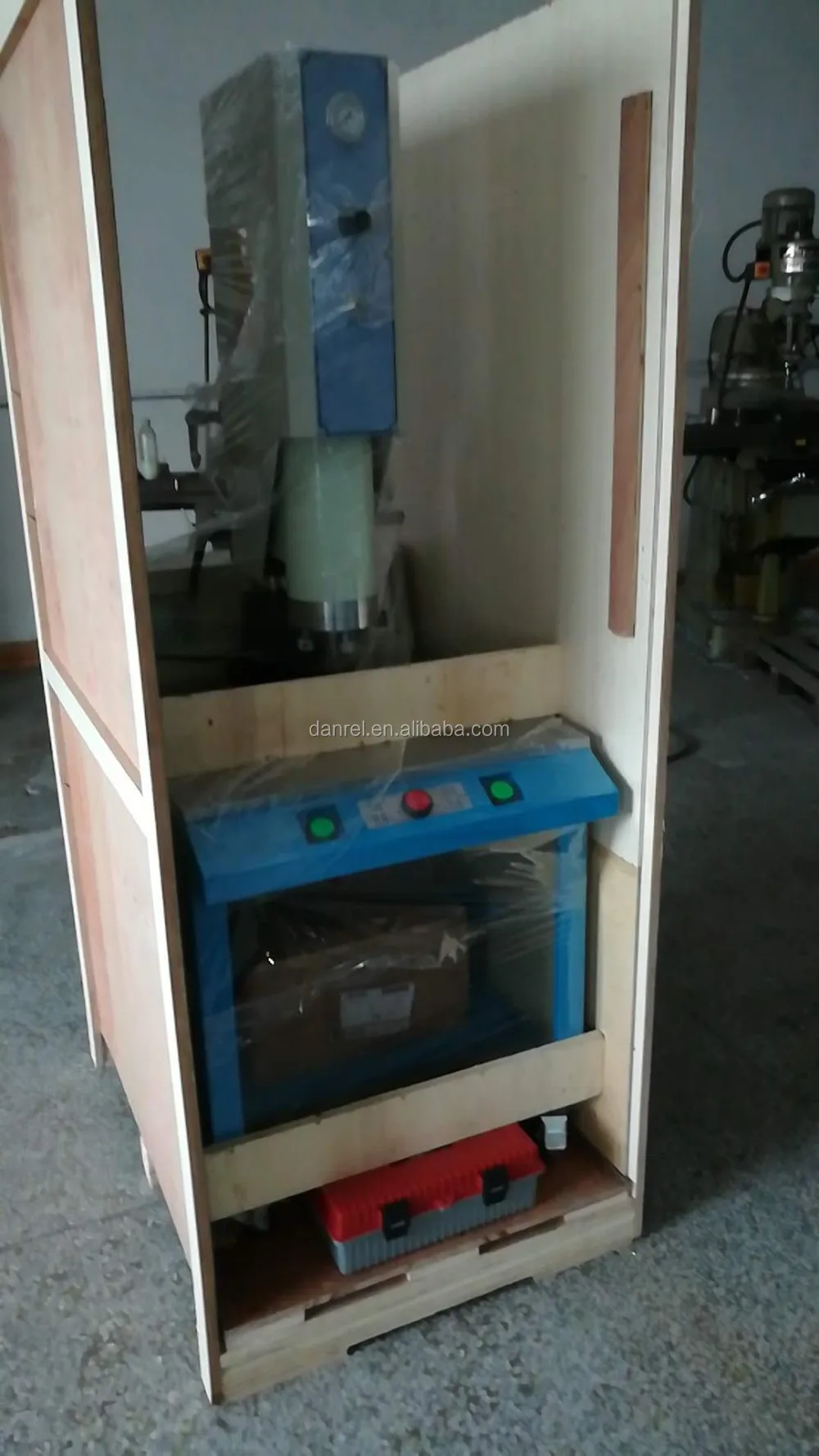

Packing & Delivery
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure
Packaging
Size
1100 (L) * 800 (W) * 1900 (H)
Weight
450 KGS



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure
Our Company
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure

Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. DANREL Ultrasonic Plastic Welding Machine.

* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier

FAQ
High Power Ultrasonic Plastic Welding Machine with Sound Enclosure

Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .

Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
