China 15KHz 3200W Sonic Welder Servo Control Automatic Ultrasonic Plastic Cross Flow Fan Blade Welding Machine

Quantity:
  • DR-1532-FAN
  • DANREL

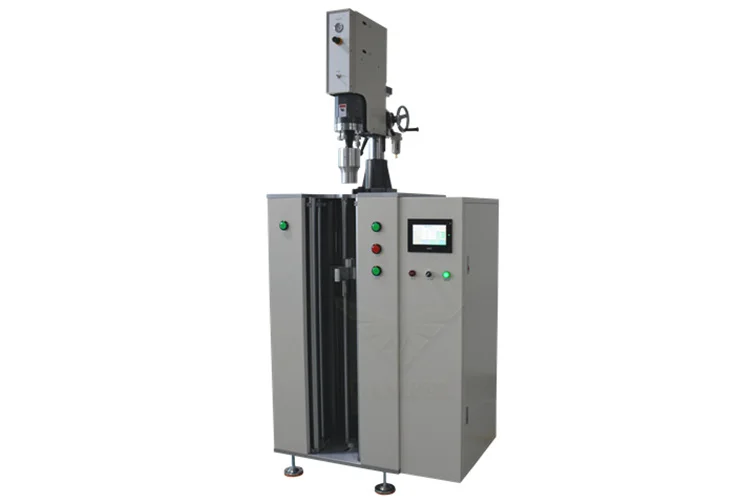

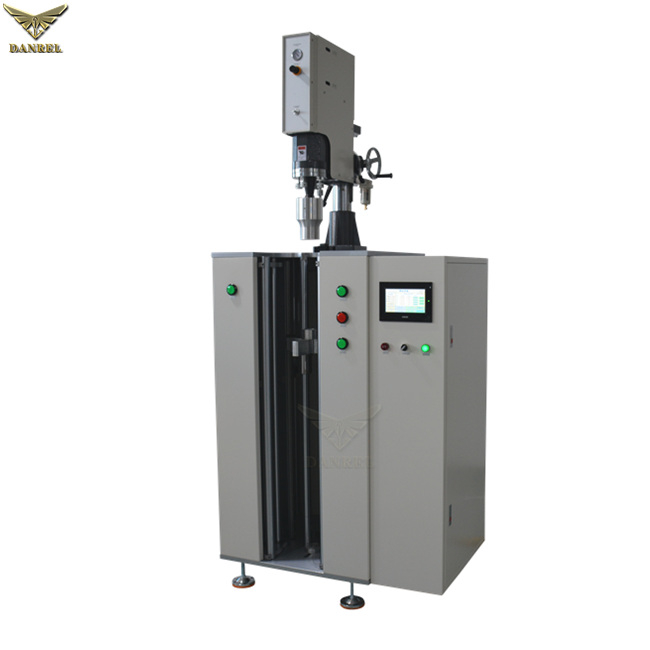

China 15KHz 3200W Sonic Welder Servo Control Automatic Ultrasonic Plastic Cross Flow Fan Blade Welding Machine

Model No.: DR-1532-FAN

Product Description

DANREL ANALOG ULTRASONIC PLASTIC WELDING MACHINE

The process of ultrasonic welding eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic welding with the proper time setting and pressure is the fastest most reliable method for thermoplastic parts welding.

* Eliminate use of consumable material
* Produce airtight and watertight seams
* Increase production time

Main Features

1. A automatic cross fan welding machine is compatible with different length fan manufacturing demand.

2. A servo motor control to adjust the height of each welding step with precision 0.1MM.

3. PLC/HMI touch screen interface -- quick, easy parameter input and adjustment.

4. Analog ultrasonic welding machine, simple to use and maintenance.

5. Delay time, weld time and hold time control the welding process.

6.High quality transducer and booster with Japan made piezoelectric ceramic.

7. TAIWAN AirTAC Brand pneumatic parts.

8. Self-protection: Over-Current, Frequency Deviation, Over-Temperature

Technicial Specifications

Model No
DR-1532-FAN
Ultrasonic Power
3200 W
Frequency
15 KHz
Power Supply
AC 110/220V, 50/60Hz
Delay Time
0.01-9.99 S
WeldTime
0.01-9.99 S
Hold Time
0.01-9.99 S
Driven Mode
Pneumatic
Stroke
100MM
Welding Area
Diameter. 150 MM(based on the material and design)
Working Pressure
0.4-0.7 MPa
Packing Dimension
1500*1300*2250 MM
Gross Weight
690 KGS

Detailed Images

MACHINE Parts

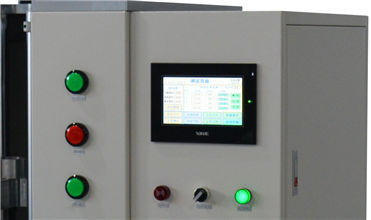

Name: PLC touch screen;

PLC/HMI touch screen - quick, easy parameter input and adjustment.(Welding Time/Moving Distance)


Cross Fan Machine1
Cross Fan Machine2


MACHINE DETIALS

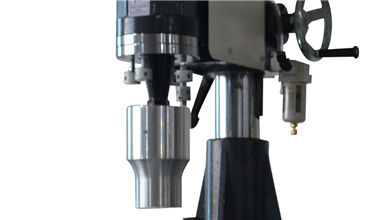

* Equipped with four horizontal level adjusting screws, fast horn changeover for different applications.

* Height is adjustable to match different size horn;

Certifications
DANREL PLC 20KHz 2000W Ultrasonic Pastic Welder Price, China 15KHz 2600W Ultrasonic Welding Machine Manufacturer
DANREL PLC 20KHz 2000W Ultrasonic Pastic Welder Price, China 15KHz 2600W Ultrasonic Welding Machine Manufacturer
DANREL PLC 20KHz 2000W Ultrasonic Pastic Welder Price, China 15KHz 2600W Ultrasonic Welding Machine Manufacturer
Packing & Delivery
DANREL PLC 20KHz 2000W Ultrasonic Pastic Welder Price, China 15KHz 2600W Ultrasonic Welding Machine Manufacturer
Packaging
Size
1500 (L) * 1300 (W) * 2250 (H)
Weight
690 KGS



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
DANREL PLC 20KHz 2000W Ultrasonic Pastic Welder Price, China 15KHz 2600W Ultrasonic Welding Machine Manufacturer
DANREL PLC 20KHz 2000W Ultrasonic Pastic Welder Price, China 15KHz 2600W Ultrasonic Welding Machine Manufacturer
DANREL PLC 20KHz 2000W Ultrasonic Pastic Welder Price, China 15KHz 2600W Ultrasonic Welding Machine Manufacturer
Our Company
DANREL PLC 20KHz 2000W Ultrasonic Pastic Welder Price, China 15KHz 2600W Ultrasonic Welding Machine Manufacturer
DANREL PLC 20KHz 2000W Ultrasonic Pastic Welder Price, China 15KHz 2600W Ultrasonic Welding Machine Manufacturer
DANREL PLC 20KHz 2000W Ultrasonic Pastic Welder Price, China 15KHz 2600W Ultrasonic Welding Machine Manufacturer
DANREL PLC 20KHz 2000W Ultrasonic Pastic Welder Price, China 15KHz 2600W Ultrasonic Welding Machine Manufacturer
DANREL PLC 20KHz 2000W Ultrasonic Pastic Welder Price, China 15KHz 2600W Ultrasonic Welding Machine Manufacturer
DANREL PLC 20KHz 2000W Ultrasonic Pastic Welder Price, China 15KHz 2600W Ultrasonic Welding Machine Manufacturer

Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. DANREL Ultrasonic Welding Machine.

* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier

FAQ

Question: Are you trading company or manufacturer ?

A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .
Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.

DANREL PLC 20KHz 2000W Ultrasonic Pastic Welder Price, China 15KHz 2600W Ultrasonic Welding Machine Manufacturer
Related Products

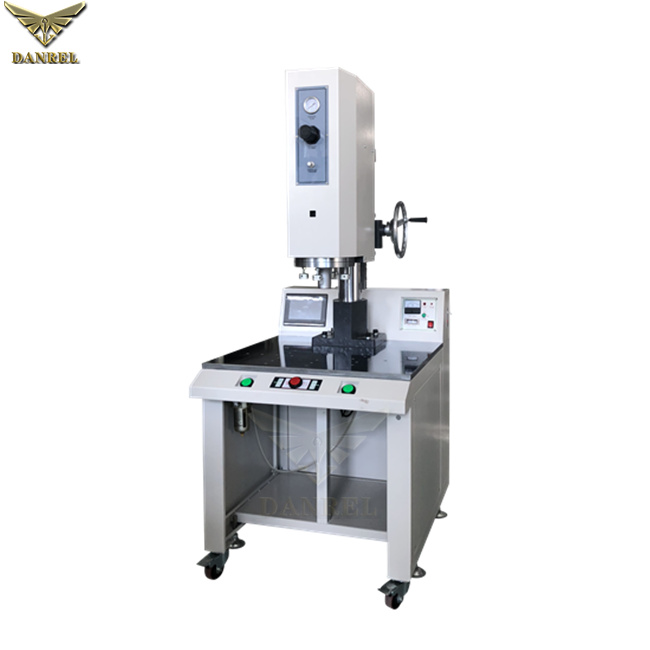

4200W Ultrasonic Plastic Welding Machine
