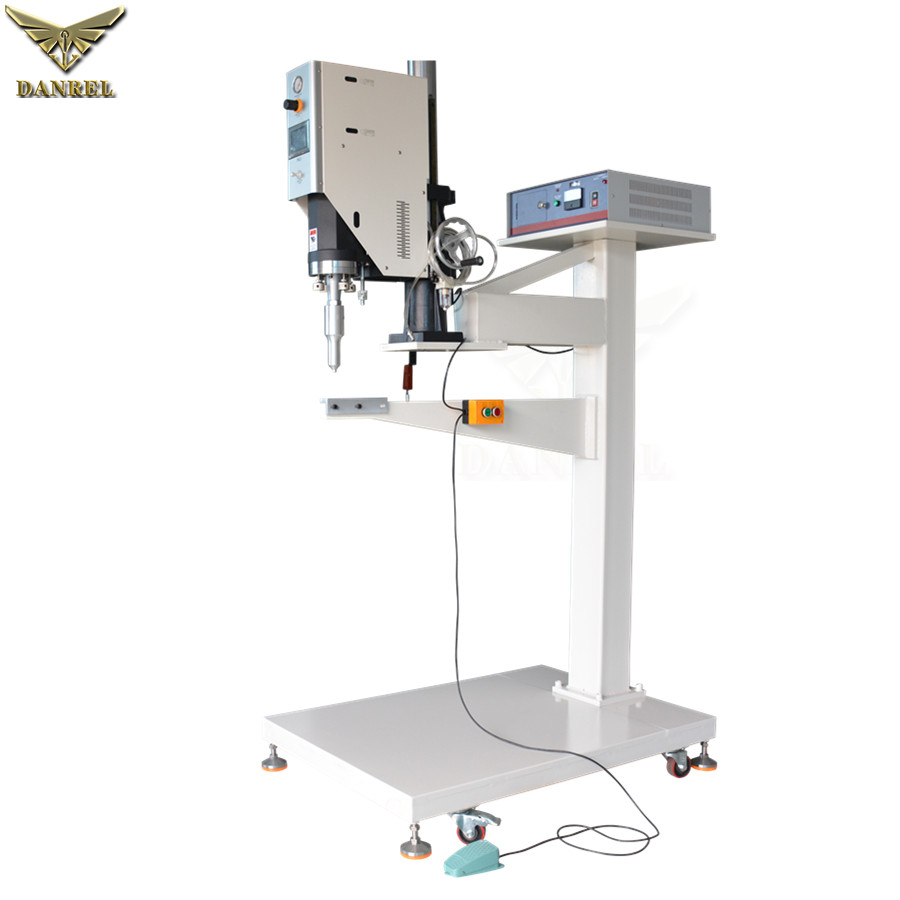

15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine

Availability:
Quantity:
  • DR-1526T
  • DANREL

15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine

Product Description

DANREL ULTRASONIC PLASTIC WELDING MACHINE

The process of ultrasonic welding eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic welding with the proper time setting and pressure is the fastest most reliable method for thermoplastic parts welding.
* Eliminate use of consumable material
* Produce airtight and watertight seams
* Increase production time


Main Features;

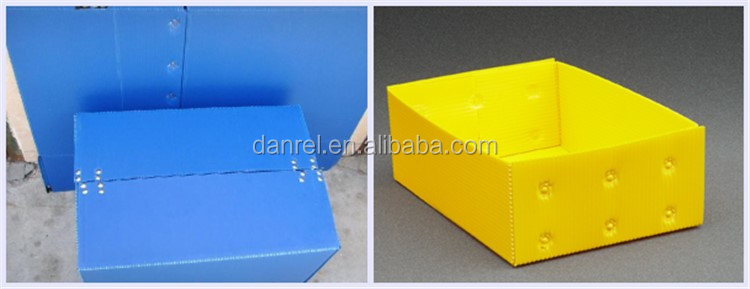

1. Designed for corrugated box & plastic totes production, capable of producing 1000MM depth boxes with 1000MM arm

2. PLC/HMI touch screen - quick, easy parameter input and adjustment. 3. Welding by time, delay time, weld time and hold time.

3. Working pressure is adjustable.

4. Designed for easy installation & operation and low maintenance required.

5 Self-protection: Over-Current, Frequency Deviation, Over-Temperature

6. Available in 4 frequencies – 15 Khz, 20 Khz 35 KHz and 40 KHz.

7. Quick application changeover, high welding seam strength.

8. Precise and high quality imported pneumatic parts.

9. High quality transducer and booster.

10. Suitable for high cadences and short cycle times.

11. Designed for 24 hours continuous working purpose.

Technical Data

Model No
DR-1526T
Ultrasonic Power
2600W
Frequency
15KHz
Power Supply
AC 110/220V ±10%, 50/60Hz
Delay Time
0.01-9.99 S
WeldTime
0.01-9.99 S
Hold Time
0.01-9.99 S
Driven Mode
Pneumatic
Stroke
75MM
Welding Area
Max .200MM Wide Horn(multiple spots available)
Working Pressure
0.4-0.7 MPa
Packing Dimension
135*95*195 CM
Gross Weight
380 KGS
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine
Detailed Images
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine

MACHINE DETAILS

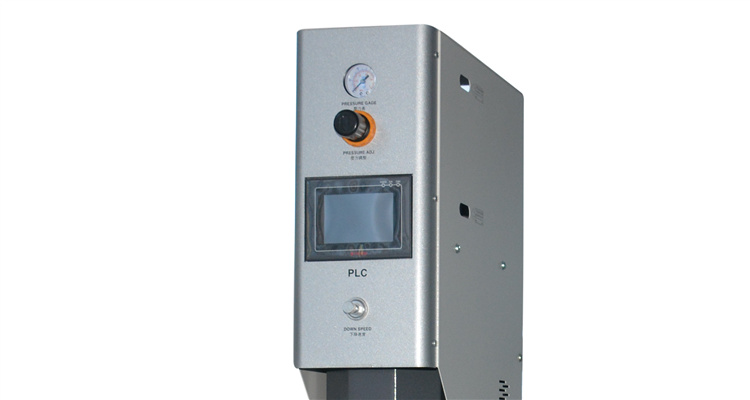

Name: PLC touch screen;


PLC/HMI touch screen - quick, easy parameter input and adjustment.


Language: English

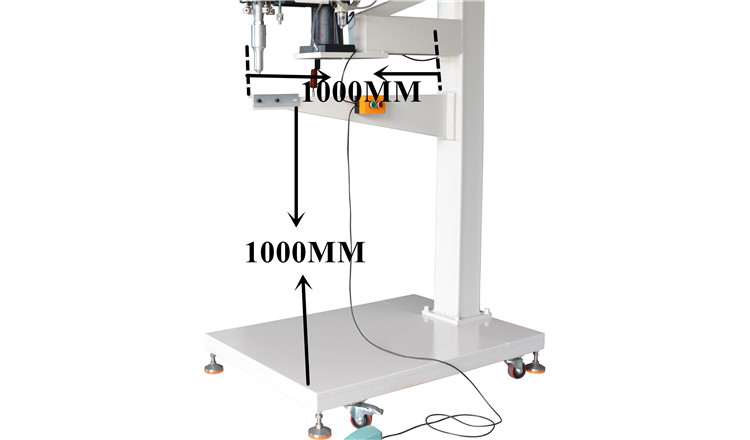

Any Size Boxes Manufacturing Capable

Throat Size: 1000MM;

Throat Height: 1000MM

Capable of producing up to 1000MM depth boxes.

15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine

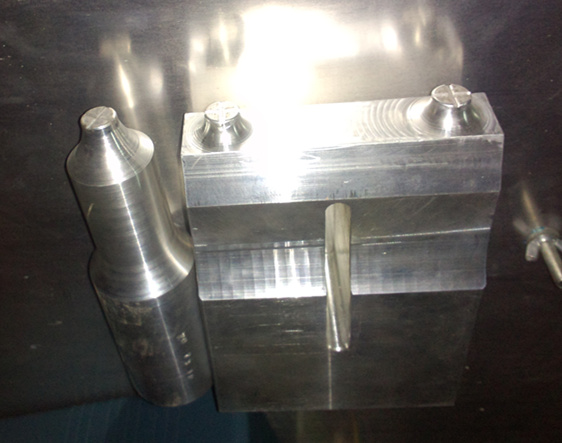

Ultrasonic Horn

* Fast Ultrasonic horn changeover capable.

* Horn & sonotrodes available in 1 or 2 or 3 spots for flexible manufacturing.

* The Horn Material: 7075 Aluminium.

MACHINE PARTS

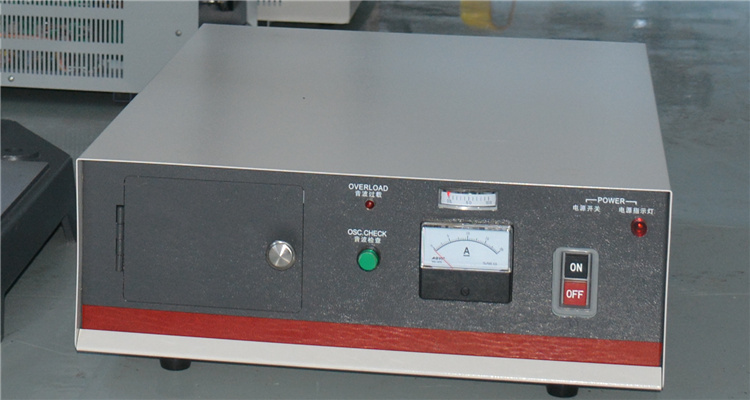

Equipped with Amplitude Reader

The operation can read the meter to know machine welding setting, so we can set a suitable welding power and welding time to weld a good result.


15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine

Ultrasonic Generator

Name: Transducer

Brand: FUJI

Original: JAPAN

Adopts Japan FUJI Piezoelectric ceramic, stable and durable.


MACHINE Parts

Name: Air Cylinder

Brand: AirTAC

Original: TAIWAN

High Precision, stable performance, strong driving force, low consumption.

15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine
Certifications
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine
Packing & Delivery
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine
Packaging
Size
135 (L) * 95 (W) * 1950 (H) CM
Weight
380 KGS



Packaging Details

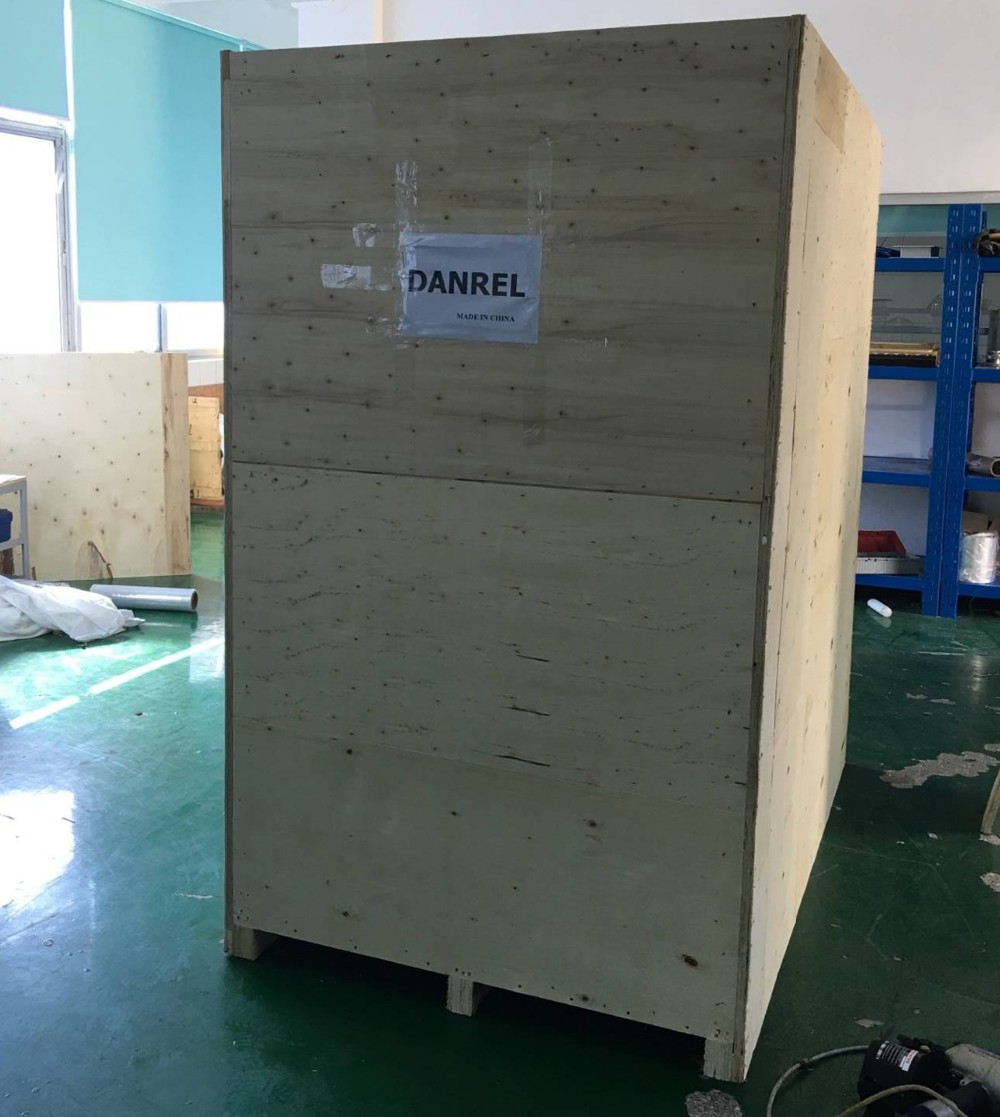

The normal package is Plywood box(Size: L*W*H). Fumigation certificate can be provided if needed.If container is too tigher,we
will use pe film for packing or pack it according to customers special request.
Fragile parts will be seperately packed with cushion packing material

15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine
Our Company
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine

Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery.

* Quality is our culture

* Competitive Advantages

* Market Niche

* Trustworthy Supplier

FAQ
15KHz 2600W Coroplast Hollow Plastic Sheet Welder Ultrasonic PP Corrugated Packaging Box Welding Sealing Machine

Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect
power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.


Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .

Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
