DR-2020/1526
DANREL
Video of on Youtube

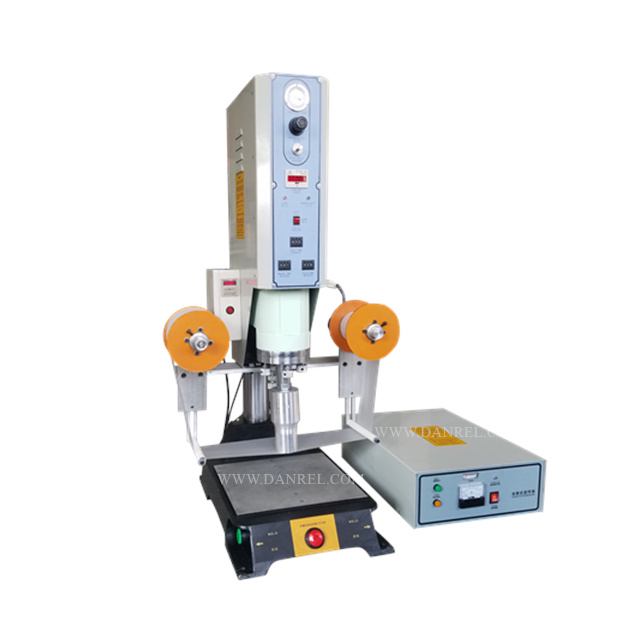

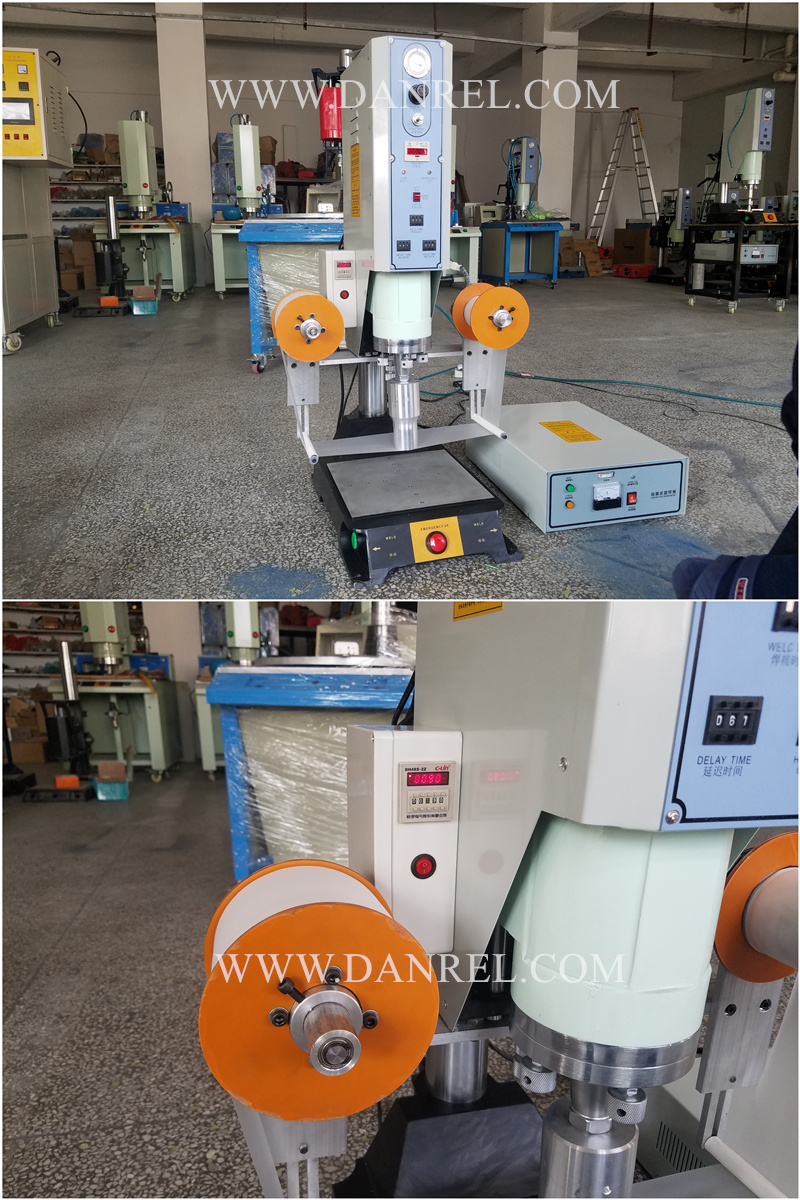

ITEM: 20KHz 2000W Analog Ultrasonic Plastic Welder with Automatic Film Rolling Device
Machine Principal:
Ultrasonic welding machine process works through the translation of AC current into mechanical vibrations using piezo-electric ceramics. The vibrations are then passed through the part to the joint at which point they cause stress and strain in the contact area between the two parts which leads to localized heating and melting of the polymer. Ultrasonic welding typically has weld times from one-tenth to two seconds and our ultrasonic welding equipment can handle parts from approximately one-eighth inch diameter at high frequencies up to twelve inches square at low frequencies.
Main Features:
1. Analog Ultrasonic Welding Machine, manually tuning.
2. Welding by time, delay time, weld time and hold time.
3. Separate generator design, more convenient.
4. Precise imported Pneumatic parts
5. High quality transducer and booster
6. Self-protection: Over-Current, Frequency Deviation, Over-Temperature
Technical Data:
Model No | DR-2020 | DR-1526 | DR-1532 |
Ultrasonic Power | 2000W | 2600W | 3200W |
Frequency | 20KHz | 15KHz | 15KHz |
Voltage | AC 110/220V, 50/60Hz | ||
Weld Time | 0.01-9.99S | ||
Delay Time | 0.01-9.99S | ||
Hold Time | 0.01-9.99S | ||
Welding Area | Dia.120MM | Dia.150MM | Dia.180MM |
Stroke | 75MM | ||
Weight | 110KGS | 110KGS | 130KGS |
Dimension | 770*500*1200MM | 770*500*1200MM | 800*550*1200MM |
Ultrasonic Horn and Fixtures:
Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. Automatic High Frequency Welding Machine
* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and trainning?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compresor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
