The process of ultrasonic welding eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic welding with the proper time setting and pressure is the fastest most reliable method for thermoplastic parts welding.

* Eliminate use of consumable material
* Produce airtight and watertight seams
* Increase production time

Main Features
1. True Digital Autotune- Provides fully-automatic tuning. Digi-Trac tuning automatically tracks the resonant frequency digitally.

2. Well suited for multiple applications with multiple welding modes. Weld by Time, Weld by Energy, Weld by Depth.

3. Amplitude adjustment in 1% increments from 100% to 20% for optimization of weld strength and appearance.

4. Compact, single-rail linear ball slide assembly system offers accurate positioning, stable movement, and friction free travel.

5. Systems Protection Monitor (SPM) Five levels of power supply protection are provided: 1) phasing, 2) over voltage, 3) over current, 4) over temperature, 5) power.

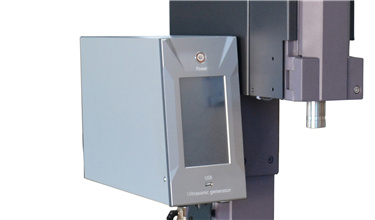

6. PLC/HMI touch screen interface -- quick, easy parameter input and adjustment.

7. Quick application changeover, high welding seam strength.

8. Suitable for high cadences and short cycle times

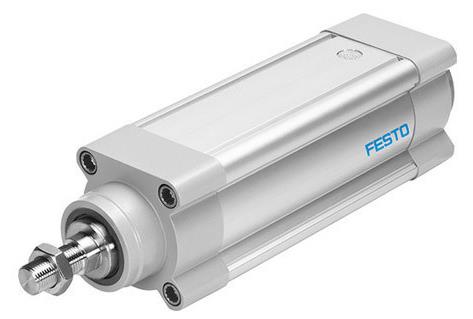

9. Precise imported pneumatic parts SMC and Festo brand.

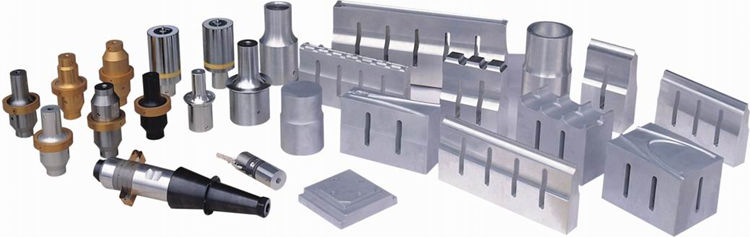

10. High quality transducer and booster.

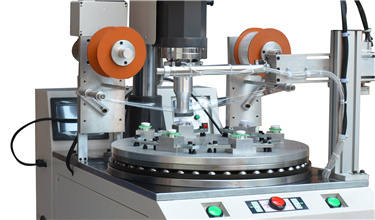

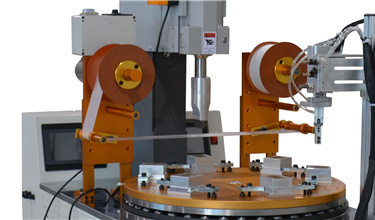

11. Optional Automatic Film Feeder to protect the work piece surface being damaged by the ultrasonic vibration.

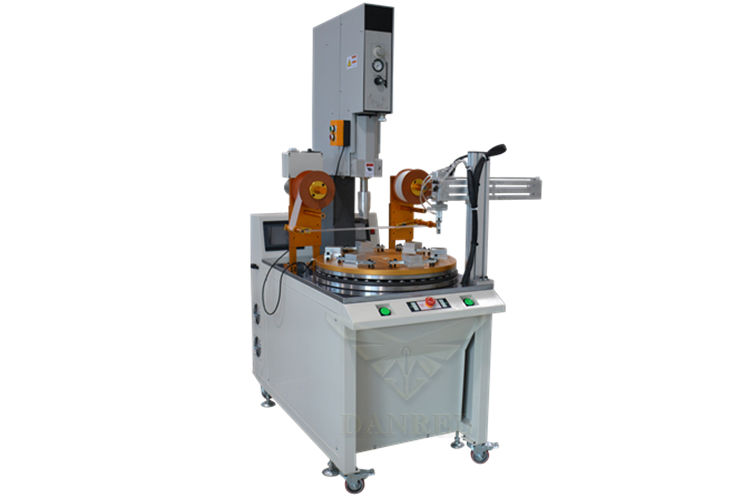

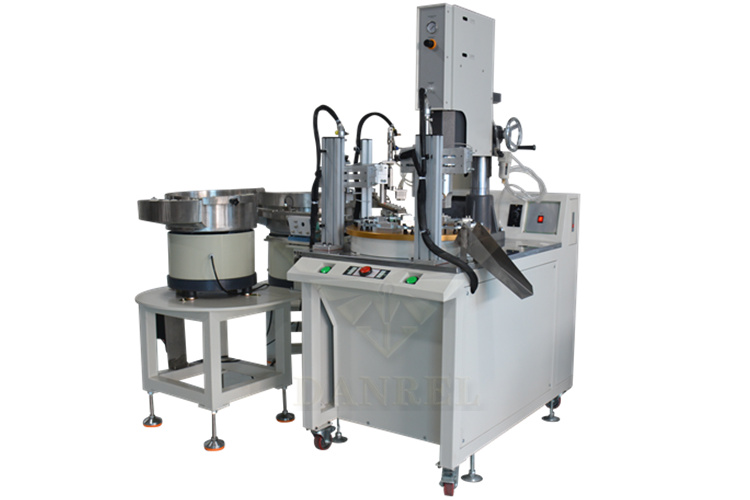

12. Automatic production customization offered(feeding + welding + unloading)

Technical Data

DANREL Ultrasonic plastic welding machine is widely used in automotive industry, electronic industry, medical industry, household appliances, woven apparel, office supplies, packaging industry, toy industry, and so on.

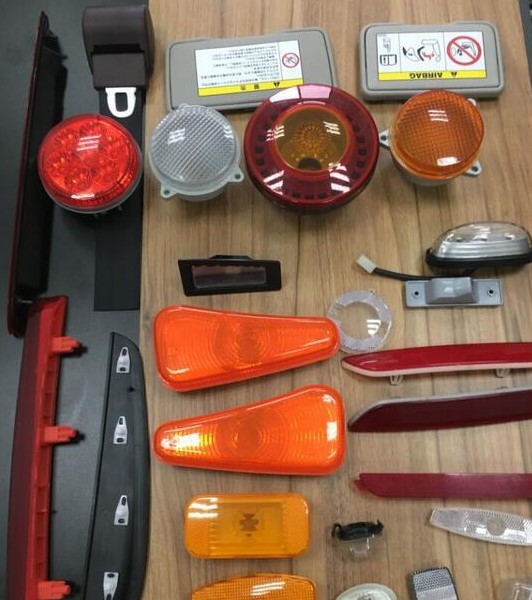

Automotive  industry: plastic body parts, car doors, automotive dashboard, lights, mirrors, sun visor, interior parts, filters, reflective material, reflective spike, bumper, cable, plastic filter for motorcycle , Radiator, brake fluid tank, oil cups, water tanks, fuel tank, air hose, exhaust purifiers, the tray plate, and so on.

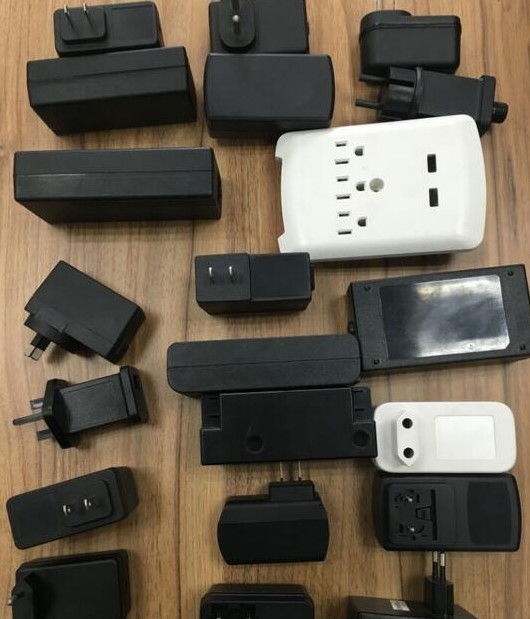

Plastic Electronics: prepaid water meters, communications equipment, cordless phones, mobile phone accessories, cell phone case, battery case, charger, maintenance valve regulated lead-acid batteries, 3-inch floppy disk, U disk, SD card, CF card, USB connection, Bluetooth devices, and so on.

Stationery: folder, album, folding boxes, PP hollow board, pen loops, ink cartridges, toner cartridges, and so on.

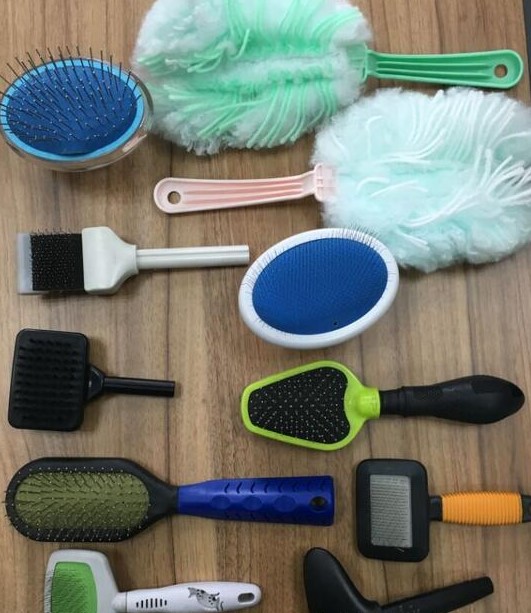

Medical and Daily products: watches, kitchen utensils, oral liquid bottle caps, drip caps, mobile phone accessories, golden soft brush, and daily necessities, handle, security caps, cosmetics bottle, coffee pot, washing machines, air dehumidifiers, Electric irons, electric kettles, vacuum cleaners, speakers, cover and metal face grille and other civil engineering and so on.

Health  products: children's products, air mattresses, clothes hangers, gardening supplies, kitchenware sanitary ware, shower, shower head, and so on.
