DR-2020-Dual Heads
DANREL
Video of on Youtube

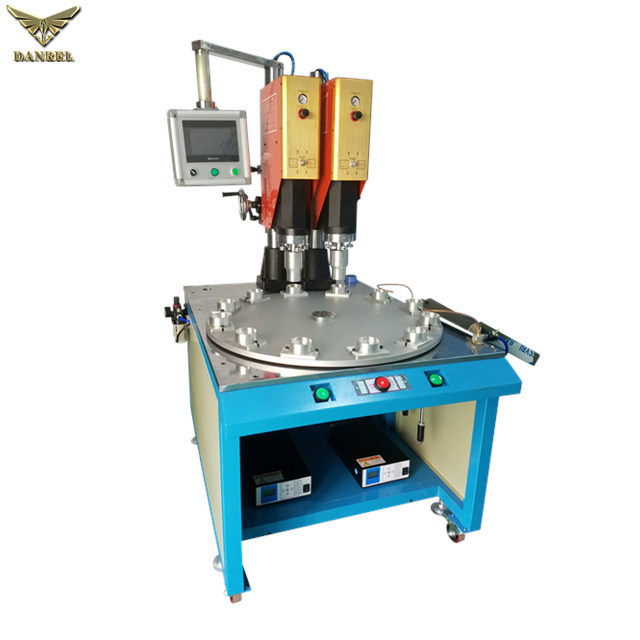

Model: Rotary Table Fully Automatic Ultrasonic Plastic Welding Machine
Model No.: DR-2020-Dual Heads
Machine Features:
1. Machine can be 15 KHz or 20 Khz, power can be 1200 W -4200 W.
It depends on the material and welding size
2. Machine is automatic rotary table with 6-12 working station
3. Machine can work with a robort arm to off-load the welded work-piece
4. True Digital Autotune- Provides fully-automatic tuning
5. Computer with CPU for quick and flexible process monitor
6. Amplitude Stepping for optimization of weld strength and appearance
7. Built-in digital amplitude control - for fine tuning of critical applications
8. Quick application changeover, high welding seam strength
9. Suitable for high cadences and short cycle times
10. Systems Protection Monitor (SPM) Five levels of power supply protection are provided:
1) phasing, 2) over voltage, 3) over current, 4) over temperature, 5) power
Machine Principal:
Ultrasonic welding machine process works through the translation of AC current into mechanical vibrations using piezo-electric ceramics. The vibrations are then passed through the part to the joint at which point they cause stress and strain in the contact area between the two parts which leads to localized heating and melting of the polymer. Ultrasonic welding typically has weld times from one-tenth to two seconds and our ultrasonic welding equipment can handle parts from approximately one-eighth inch diameter at high frequencies up to twelve inches square at low frequencies.
Teachnical Data: Fully Automatic Ultrasonic Plastic Welding Machine
| Model No. | DR-2020-Dual Heads |
| Ultrasonic Power | 2000W*2 |
| Power Supply | AC 110/220V, 50/60Hz |
| Frequency | 20KHz |
| Welding Area | Dia. 120MM(depends on welding material) |
| Working Stations | 6/8/10/12(depends on the workpiece size) |
| Stroke | 75MM |
| Air Pressure | 0.4-0.7MPa |
| Weight | Around 300 KGS |
| Dimension | L*W*H=1100*920*1830MM |

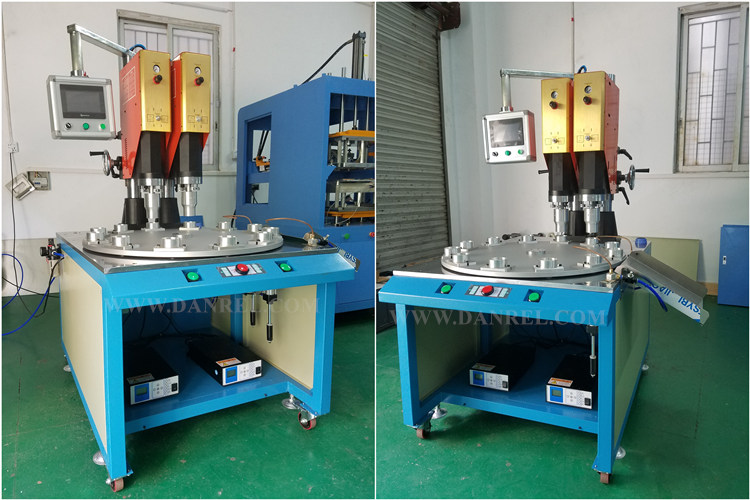

Overview:
Ultrasonic Horn and Fixtures:
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and trainning?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compresor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
