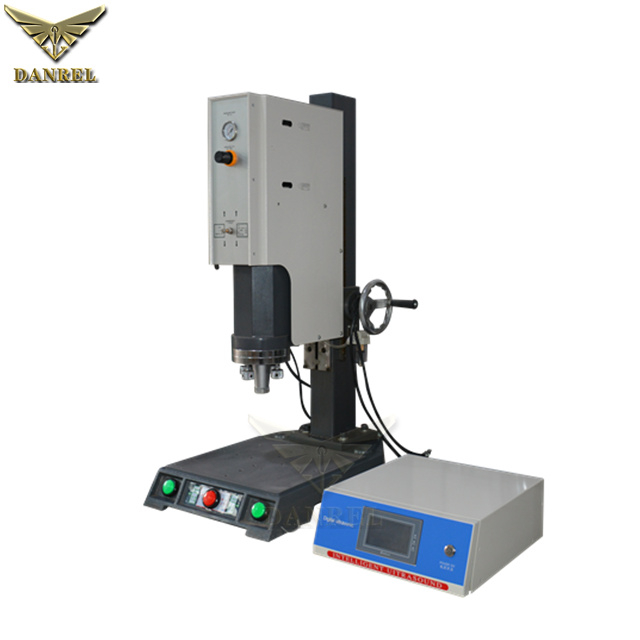

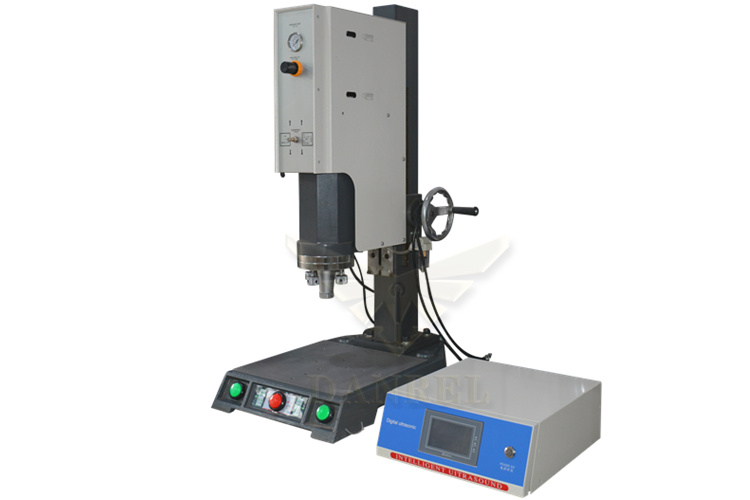

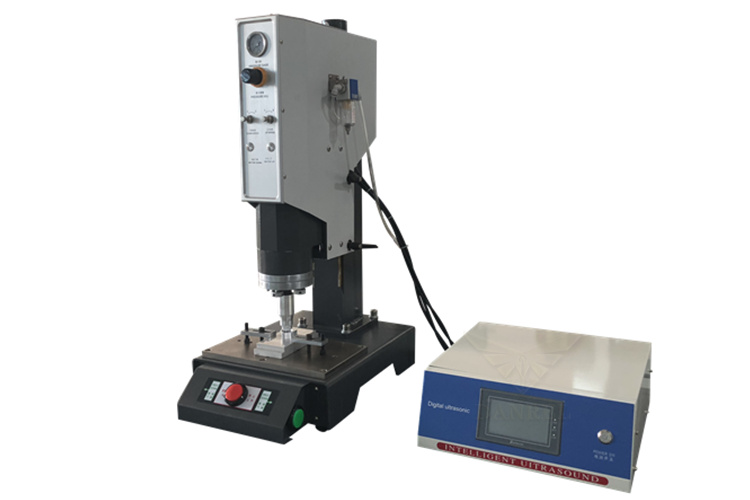

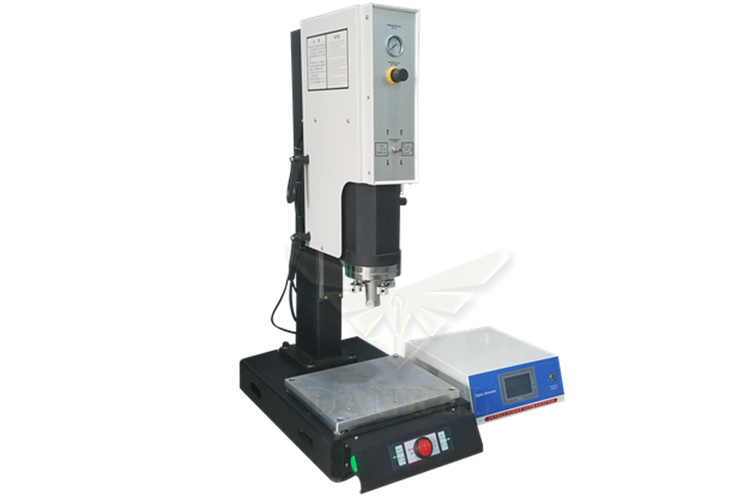

15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine

Ultrasonic Welding Plastic Machine
Availability:
Quantity:
  • DR-2022-AT
  • DANREL

Product Description

DANREL ULTRASONIC PLASTIC WELDING MACHINE

The process of ultrasonic welding eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic welding with the proper time setting and pressure is the fastest most reliable method for thermoplastic parts welding.
* Eliminate use of consumable material
* Produce airtight and watertight seams
* Increase production time

Main Features

1. PLC/HMI touch screen - quick, easy parameter input and adjustment.
2. Turely Digital Ultrasonic Welding Machine, Auto-tuning, simple to use and maintenance.
3. Built-in digital amplitude control - for fine tuning of critical applications.
4. Amplitude Stepping for optimization of weld strength and appearance.

5 Systems Protection Monitor (SPM) Five levels of power supply protection are provided:
(1) phasing, (2) over voltage, (3) over current, (4) over temperature, (5) power.
6. Available in 4 frequencies – 15 Khz, 20 Khz 35 KHz and 40 KHz.
7. Quick application changeover, high welding seam strength.
8. Precise and high quality imported pneumatic parts.
9. High quality transducer and booster.
10. Suitable for high cadences and short cycle times.
11. Designed for 24 hours continuous working purpose.
12. Customization offered: Automatic turn table, automatic robot arm, automatic feeding.
Model No
DR-3510-AT
DR-2022-AT
DR-1526-AT
DR-1532-AT
Ultrasonic Power
1000W
2400W
2600W
3200W
Ultrasonic Frequency
35KHz
20KHz
15KHz
15KHz
Power Supply
AC220V±10%, 50/60Hz
Driven Mode
Pneumatic(Air Compressor is required)
Working Pressure
0.4-0.7MPa
Air Cylinder Stroke
50MM
75MM(Customization offered)
Delay Time
0.001-9.999S(Adjustable)
Weld Time
0.001-9.999S(Adjustable)
Hold Time
0.001-9.999S(Adjustable)
Welding Area
Dia.50MM
Dia.120MM
Dia.150MM
Dia.200MM
Weight
90KGS
120KGS
120KGS
135KGS
Dimension
65*50*85CM
77*55*120CM
77*55*120CM
77*55*120CM
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine

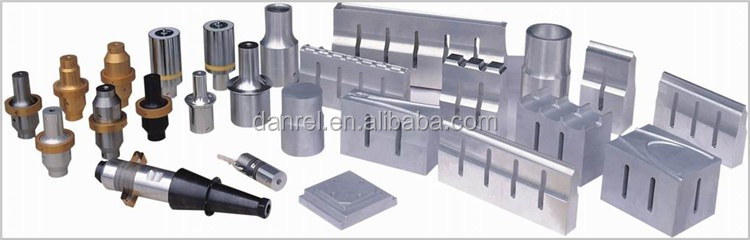

Ultrasonic Horn/Fixture, welding tools design service available.
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine

DANREL Ultrasonic plastic welding machine is widely used in automotive industry, electronic industry, medical industry, household appliances, woven apparel, office supplies, packaging industry, toy industry, and so on.

Automotive  industry: plastic body parts, car doors, automotive dashboard, lights, mirrors, sun visor, interior parts, filters, reflective material, reflective spike, bumper, cable, plastic filter for motorcycle , Radiator, brake fluid tank, oil cups, water tanks, fuel tank, air hose, exhaust purifiers, the tray plate, and so on.

Plastic Electronics: prepaid water meters, communications equipment, cordless phones, mobile phone accessories, cell phone case, battery case, charger, maintenance valve regulated lead-acid batteries, 3-inch floppy disk, U disk, SD card, CF card, USB connection, Bluetooth devices, and so on.

Stationery: folder, album, folding boxes, PP hollow board, pen loops, ink cartridges, toner cartridges, and so on.

Medical and Daily products: watches, kitchen utensils, oral liquid bottle caps, drip caps, mobile phone accessories, golden soft brush, and daily necessities, handle, security caps, cosmetics bottle, coffee pot, washing machines, air dehumidifiers, Electric irons, electric kettles, vacuum cleaners, speakers, cover and metal face grille and other civil engineering and so on.

Health  products: children's products, air mattresses, clothes hangers, gardening supplies, kitchenware sanitary ware, shower, shower head, and so on.

Detailed Images

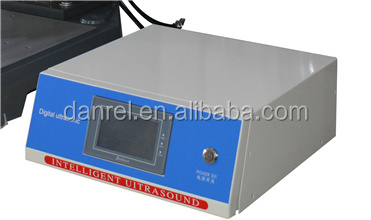

Digital Ultrasonic Generator

* PLC/HMI touch screen - quick, easy parameter input and adjustment.

* Language: English

* True Digital Autotune- Provides fully-automatic tuning;

15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine

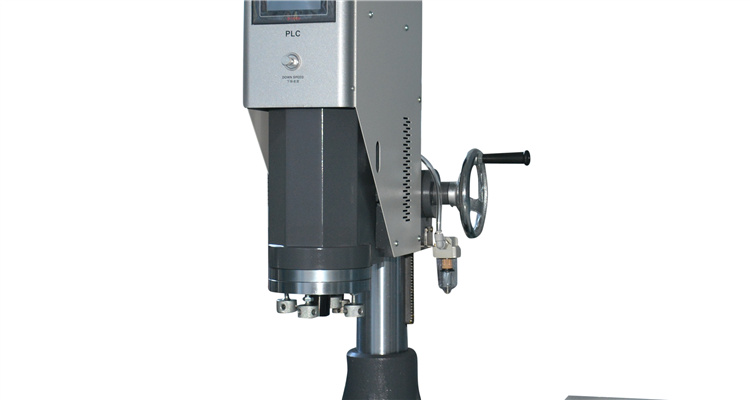

MACHINE DETAILS

* Equipped with four horizontal level adjusting screws, fast horn changeover for different applications.

* Height is adjustable to match different size horn;

Ultrasonic Parts

* Name: Transducer + Booster
* Brand: FUJI
* Original: JAPAN
* Adopts Japan FUJI Piezoelectric ceramic, stable and durable.


15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine

Air Cylinder

Name: Air Cylinder

Brand: AirTAC

Original: TAIWAN

High Precision, stable performance, strong driving force, low consumption.

Customization Functions

1. Multiple workstations Auto Turn Table for continuously manufacturing.

2. Automatic Robot Arm for unloading.

3. Automatic Film Feeder to protect the products being damaged from the ultrasonic virbation.

15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
Certifications
CE Certificate-Shenzhen Danrel
CE Certificate-Shenzhen Danrel
CE Certificate-Shenzhen Danrel

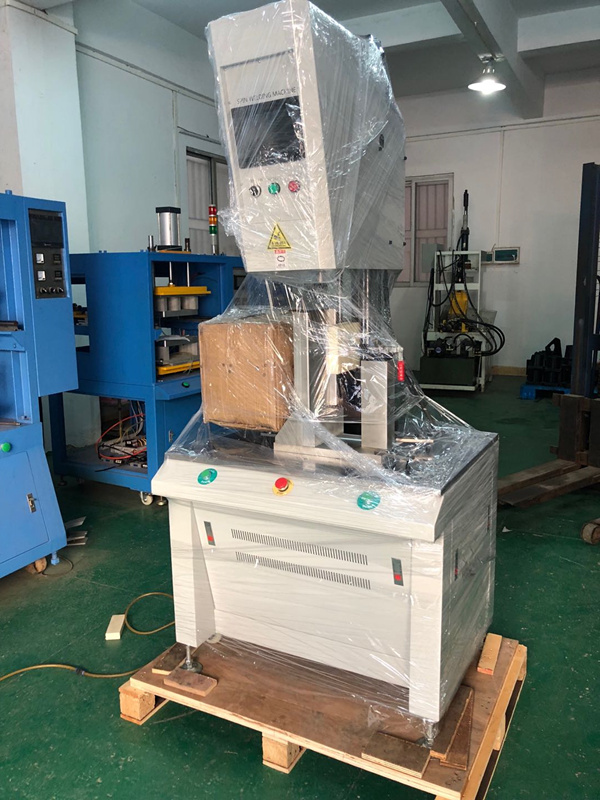

Packing & Delivery
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
Packaging
Size
770 (L) * 550 (W) * 1200 (H)
Weight
120 KGS



Packaging Details

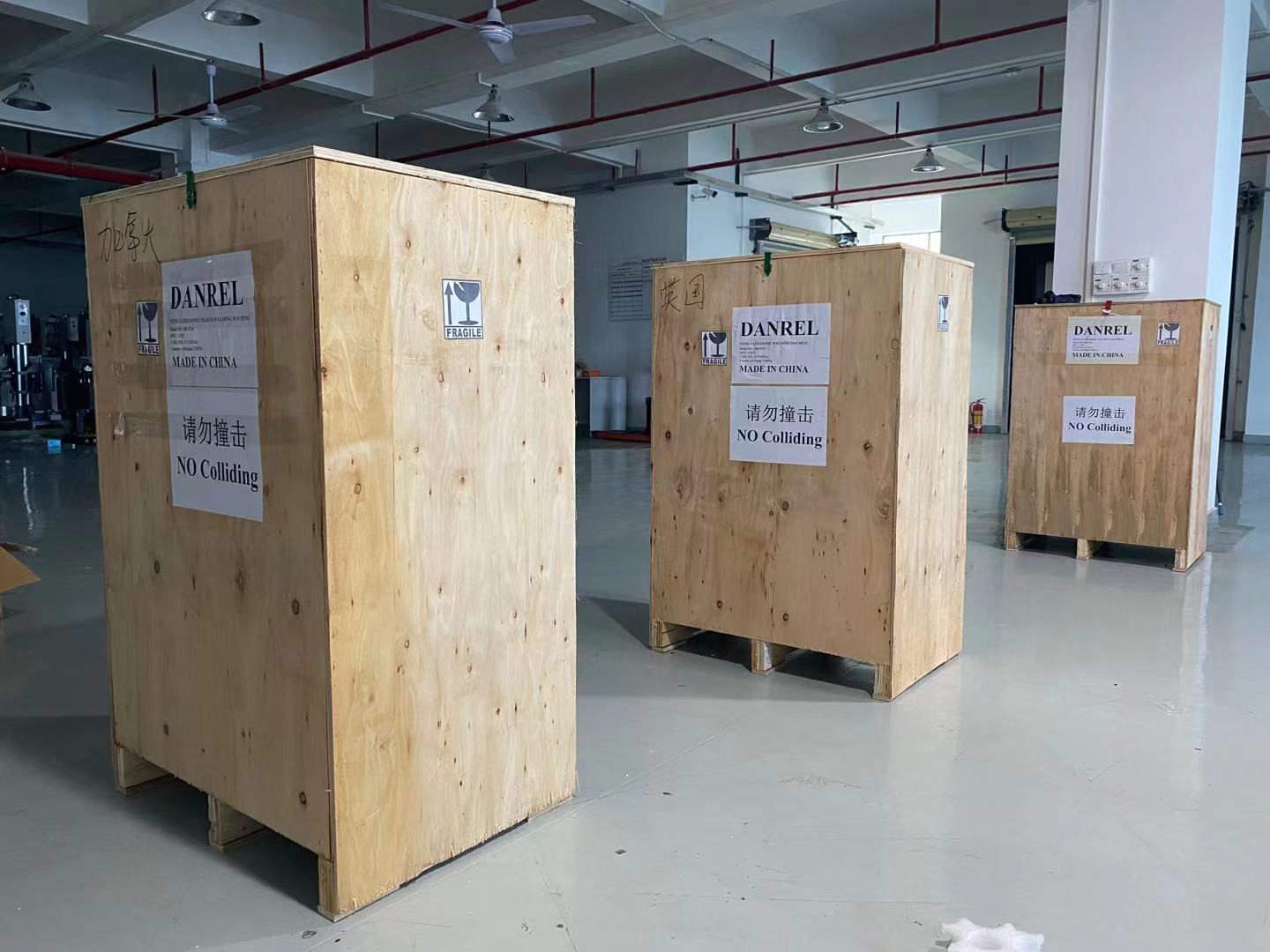

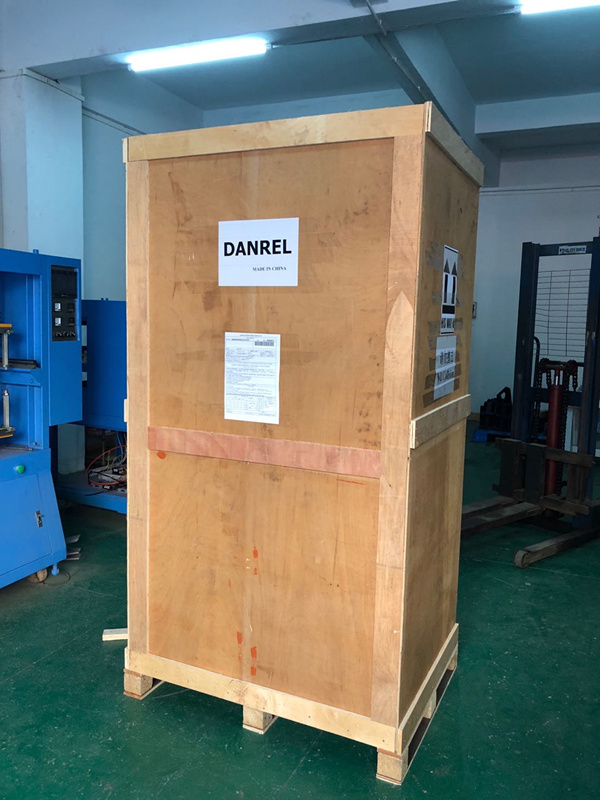

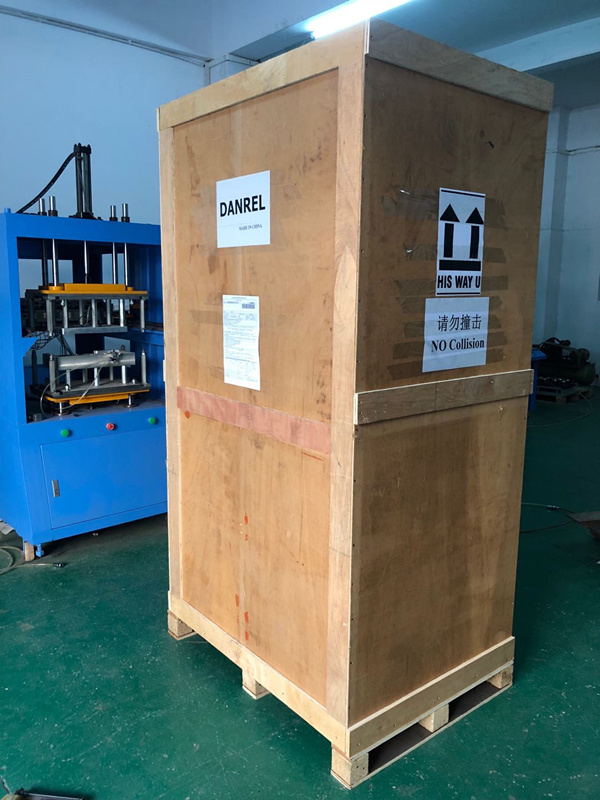

The normal package is wooden box(Size: L*W*H). If export to european countries the wooden box will be fumigated.
If container is too tight,we will use soft PE film for packing or pack it according to customers special request.
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine

Our Company

15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine

Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. DANREL Ultrasonic Plastic Welding Machine.

* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier

FAQ
15KHz & 20KHz Desktop Computer Type Digital Auto-Tuning Ultrasonic Welding Plastic Machine

Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .

Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
