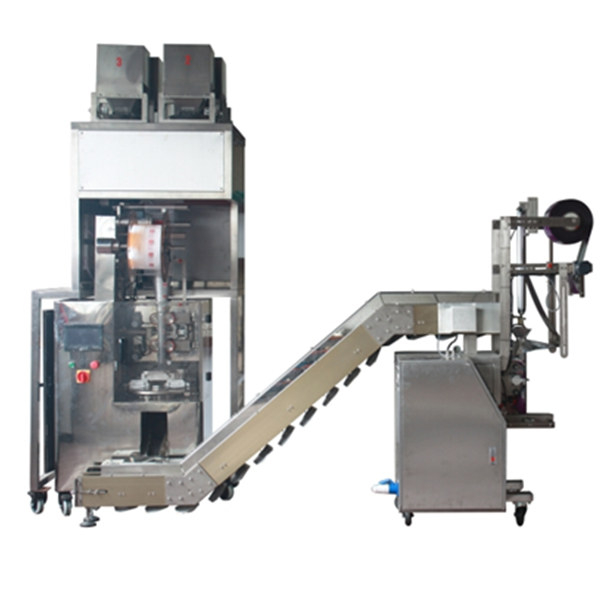

Autoamtic PLA Nylon Non-woven Ultrasonic Pyramid Tea Bag Packing Machine

  • DR-SJB04S

Pyramid Tea Bag Packing Machine Video Link

Item: Autoamtic PLA Nylon Non-woven Ultrasonic Pyramid Tea Bag Packing Machine

Triangle packing machine is a automatic precision sealing equipment that can seal triangle bag like green tea, black tea, flower tea, coffee, health tea, herbal tea, grain. It widely used on food and medicine industry.

1. Can be used for flat bag packing, triangle, stereoscopic form
2. The machine can automatically finish feeding, measuring, bag making, sealing, cutting, counting, finished product conveyor, etc
3. Using sophisticated control system to adjust the machine's movements, compact structure, human-computer interface design, easy to operate, easy to adjust, easy to maintain. Bag length servo motor drive, stable bag length, accurate positioning and convenient tuning machine.
4. Adopt imported ultrasonic sealing, electronic scale metering feeding, perfect sealing, accurate feeding.
5. Automatic tension adjustment device to adjust packaging materials.
6. Automatic alarm and stop when failure.

(3) Main parts:

No. Items Brands
1 Air Cylinder Taiwan AIRTAC
2 Ultrasonic System Taiwan
3 SMC SMC Japan
4 Reducer NEWSTART
5 SMC Magnetically Coupled Rodless Cylinder SMC Japan
6 Proximity Switch Japan OMRON
7 Solenoid Valve Taiwan AIRTAC
9 PLC Accessories Japan OMRON
10 Inverter Japan OMRON
11 Servo Motor 400W Japan Yaskawa
12 Servo Motor 200W Japan Yaskawa
13 Touch Screen Taiwan Weview
14 Intermediate relay Xiamen Hongfa
15 Power Switch Japan OMRON
16 Breaker CHNT
17 Emergency Stop Switch CHNT

Model DR-SJB04S
Bag size W: 60-80 mm
L: 40-80 mm
Method of Measurement 4 heads weigher (customizing)
Capacity 30-50 bags/min
Filling range 1-7g
Power 220V/2.2KW
Gas power 0.8mpa
Weight 650 KG
Dimension 1600*800*2650mm
