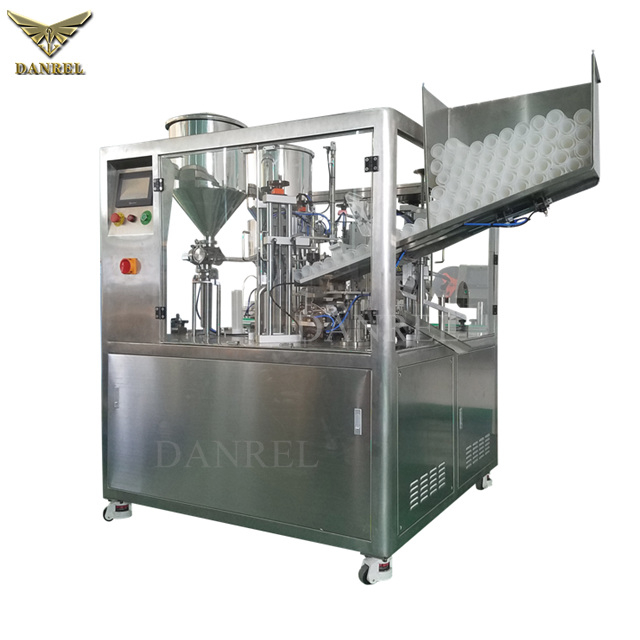

Ultrasonic High Speed Automatic Plastic Double Chamber Tube Filling And Sealing Machine, Dual Tube Filler Sealer超音波子母管灌裝封尾機

Quantity:
  • DR-2020T Dual Chamber
  • DANREL

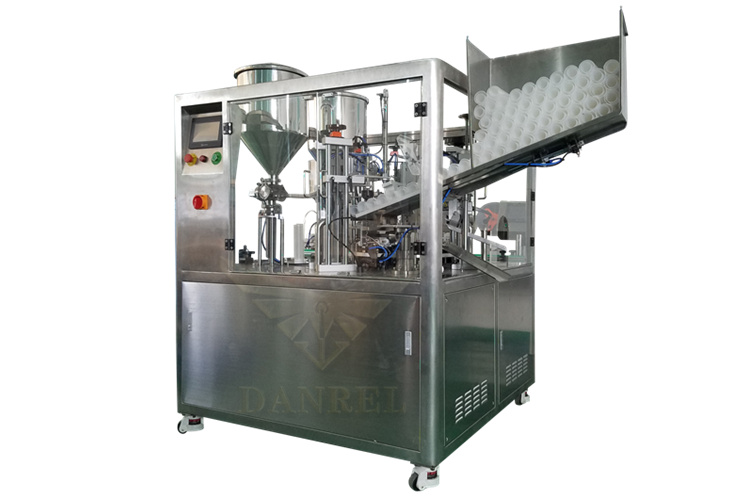

Ultrasonic High Speed Automatic Plastic Double Chamber Tube Filling And Sealing Machine, Dual Tube Filler Sealer超音波子母管灌裝封尾機

Product Description
Ultrasonic High Speed Automatic Plastic Double Chamber Tube Filling And Sealing Machine, Dual Tube Filler Sealer超音波子母管灌裝封尾機


DANREL ULTRASONIC  DOUBLE CHAMBER TUBE FILLING SEALING MACHINE

The process of tube sealing machine eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic sealing with the proper time setting and pressure is the fastest most reliable method for a variety of tube material sealing.

* Eliminate use of consumable material
* Produce airtight and watertight seams
* Increase production time

Main Features
1. Auto Tube Feeding; Automatic rotary table with 10 tube holders, servo motor control
2. Euiqpped with dual filling work stations for dual chamber tubes filling.
3. Machine body of stainless steel, meet with GMP requirement
4. PLC/HMI control, simple operation and parameters setting
5. Machine with mark searching function, more precise sealing
6. Main parts adopt imported components, Japan and Taiwan
7. Suitable for plastic tubes, composite tubes, PE tubes.
8. Compared with traditional type heat sealing method, the ultrasonic tube sealing has the following advantages:
* Fast Sealing, save time

* Sealing is nice looking, no plastic melting overflow

* Lower power consumption, energy saving


Functions:

1. Auto Tube Feeding(Inserting)

2. Tube Positioning

3. Tube Filling

4. Ultrasonic Sealing
5. Cutting (trimming)

6. Batch No Coding
7. PLC/HMI control, English/French/Espanol interface as request
8. 10 tube stations, 20-25 tubes/min
9. Stainless steel body, Meet with GMP requirement
10. Meet with CE requirement.

Model No
DR-2020T
Ultrasonic Power
2000 W
Frequency
20 KHz
Power Supply
AC 110/220V, 50/60Hz
Delay Time
0.01-2.99 S
WeldTime
0.01-2.99 S
Hold Time
0.01-2.99 S
Driven Mode
Pneumatic
Stroke
75 MM
Working Pressure
0.5-0.7 MPa
Tube Diameter Range
10-50 MM
Tube Height Range
50-250 MM
Filling Range
A: 5-60 ml B: 10-120 ml C: 25-250 ml D: 50-500 ml
Working Station Number
10
Hopper Volume
30 L
Capacity
20-35 tubes/min
Packing Dimension
L*W*H 1683*1550*1750MM
Gross Weight
680 KGS

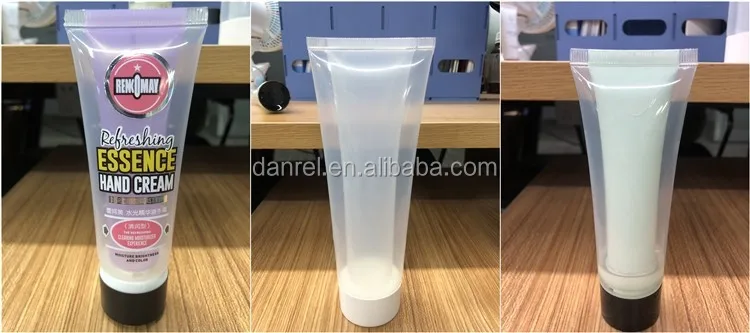

It's applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing. Extensional organization of the machine is made of aluminium alloy and stainless steel.

Ultrasonic High Speed Automatic Plastic Double Chamber Tube Filling And Sealing Machine, Dual Tube Filler Sealer超音波子母管灌裝封尾機

Detailed Images
Automatic Tube Feeder

Name:Auto Loading system

Material :Made of stainless steel 304 ,surface by plating

More durable and keep long time

Ultrasonic High Speed Automatic Plastic Double Chamber Tube Filling And Sealing Machine, Dual Tube Filler Sealer超音波子母管灌裝封尾機
Ultrasonic High Speed Automatic Plastic Double Chamber Tube Filling And Sealing Machine, Dual Tube Filler Sealer超音波子母管灌裝封尾機

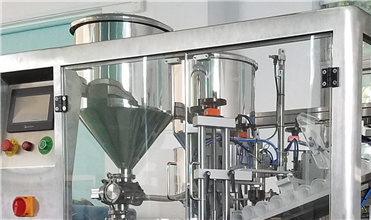

DUAL FILLING MACHINE

1. Equipped with Dual Filling Systems


2. Multiple purpose filling machine can fill cream, gel, liquid, ointment, etc. Every part can be removed for easy cleaning.


FILLING NOZZLE

Anti-drip filling nozzle, suitable for Liquid, cream, gel, ointment

Ultrasonic High Speed Automatic Plastic Double Chamber Tube Filling And Sealing Machine, Dual Tube Filler Sealer超音波子母管灌裝封尾機
Ultrasonic High Speed Automatic Plastic Double Chamber Tube Filling And Sealing Machine, Dual Tube Filler Sealer超音波子母管灌裝封尾機

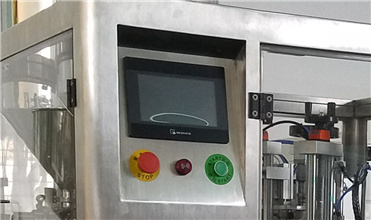

PLC TOUCH SCREEN

Easy operation touch screen for quick setting.


Mark Search/ORIENTATION

Using high sensitivity Japan-Imported Panasonic infrared positioning system, plastic tube will be turning to right side according to the mark on the tube


Ultrasonic High Speed Automatic Plastic Double Chamber Tube Filling And Sealing Machine, Dual Tube Filler Sealer超音波子母管灌裝封尾機
Certifications
Manual Ultrasonic Plastic Tube Sealing Machine, Soft Tube Sealer
Manual Ultrasonic Plastic Tube Sealing Machine, Soft Tube Sealer
Manual Ultrasonic Plastic Tube Sealing Machine, Soft Tube Sealer
Packing & Delivery
Manual Ultrasonic Plastic Tube Sealing Machine, Soft Tube Sealer
Packaging
Size
L*W*H=1690*1550*1700MM
Weight
680 KGS



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Manual Ultrasonic Plastic Tube Sealing Machine, Soft Tube Sealer
Manual Ultrasonic Plastic Tube Sealing Machine, Soft Tube Sealer
Manual Ultrasonic Plastic Tube Sealing Machine, Soft Tube Sealer
Manual Ultrasonic Plastic Tube Sealing Machine, Soft Tube Sealer
Our Company
Manual Ultrasonic Plastic Tube Sealing Machine, Soft Tube Sealer
Manual Ultrasonic Plastic Tube Sealing Machine, Soft Tube Sealer
Manual Ultrasonic Plastic Tube Sealing Machine, Soft Tube Sealer
Manual Ultrasonic Plastic Tube Sealing Machine, Soft Tube Sealer
Manual Ultrasonic Plastic Tube Sealing Machine, Soft Tube Sealer
Manual Ultrasonic Plastic Tube Sealing Machine, Soft Tube Sealer

Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. DANREL ULTRASONIC PLASTIC TUBE FILLING AND SEALING MACHINE.
