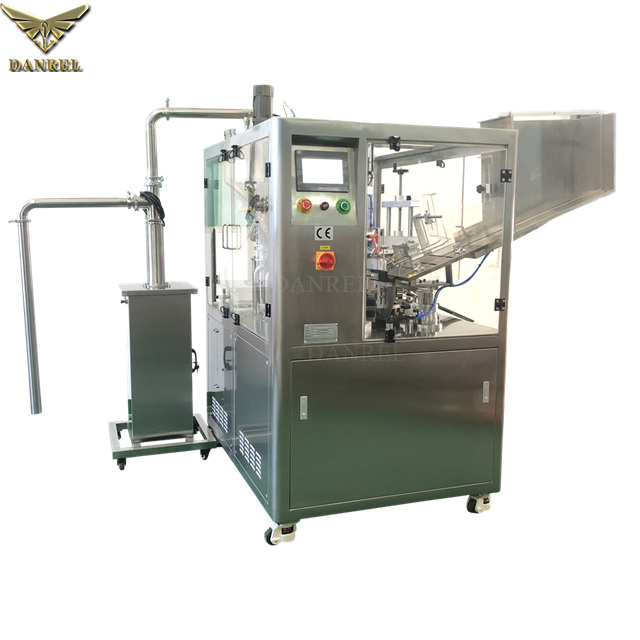

Ultrasonic Fully Automatic Plastic Tube Sealer and Filler

Quantity:
  • DR-2020T
  • DANREL

Item: Ultrasonic Fully Automatic Plastic Tube Sealer and Filler

Model No.: DR-2020T

Features and Advantages

1. Function: Automatic tube feeding, Mark searching, Tube Filling, Tube sealing, Tube trimming, Date Printing Function, Counting

2. Automatic rotary table with 10 tube holders, servo motor control

3. Adopt digital ultrasonic circuit, stable output and performance

4. Machine body of stainless steel, meet with GMP requirement

5. PLC/HMI control, simple operation and parameters setting

6. Machine with mark seraching function, more precise sealing

7. Main parts adopt imported compoents, Japan and Taiwan

8. Suitable for plastic tubes, composite tubes, PE tubes.


Advantages:

Compared with traditional type heat sealing method, the ultrasonic tube sealing has the following advantages:

* Fast Sealing, save time
* Sealing is nice looking, no plastic metling overflow
* Lower power consumption, energy saving



Functions:


1. Tube Feeding

2. Tube positioning

3. Tube Filling by pisiton

4. Ultrasonic Sealing
5  Cutting (trimming)
6. Batch No Coding
7. PLC/HMI  control, English/French/Espanol interface as request
8. 10 tube stations, 20-25 tubes/min
9. Stainless steel body, Meet with  GMP  requirement
10. Meet with CE requirement.



Technique parametes

Ultrasonic Fully Automatic Plastic Tube Sealer and Filler
Model No. DR-2020T
Ultrasonic Power Output 2000W
Frequency 20KHz
Voltage AC 110/220V, 50/60Hz
Filling Range A: 5-60 ml B: 10-120 ml C: 25-250 ml D: 50-500 ml
Filling Precision  ≤±1%
Tube Sealing Diameter 10-50 mm
Tube Sealing Height 50-250 mm
Efficiency around 20-30 tubes/min
Delay Time 0.01-2.99 S
Sealing Time 0.01-2.99 S
Hold Time 0.01-2.99 S
Horn Journey 75 mm
Driven Model Pneumatic
Operation Mode PLC/MHI
Weight 580 KGS
Dimension L*W*H 1683*1550*1750MM

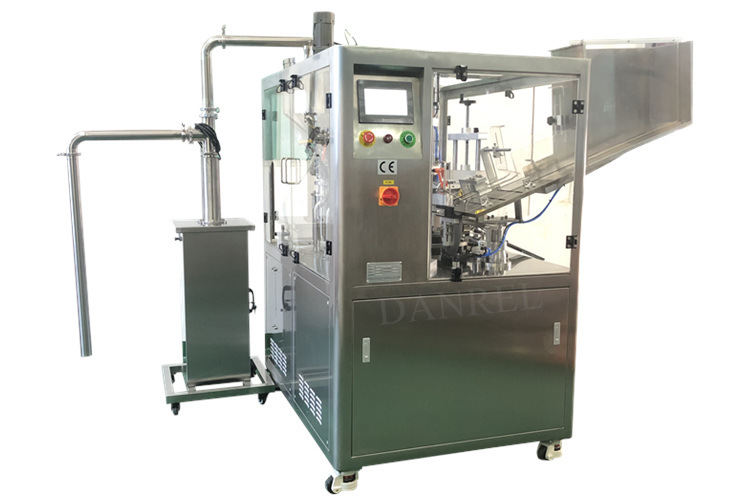

Ultrasonic Fully Automatic Plastic Tube Sealing and Filling Machine

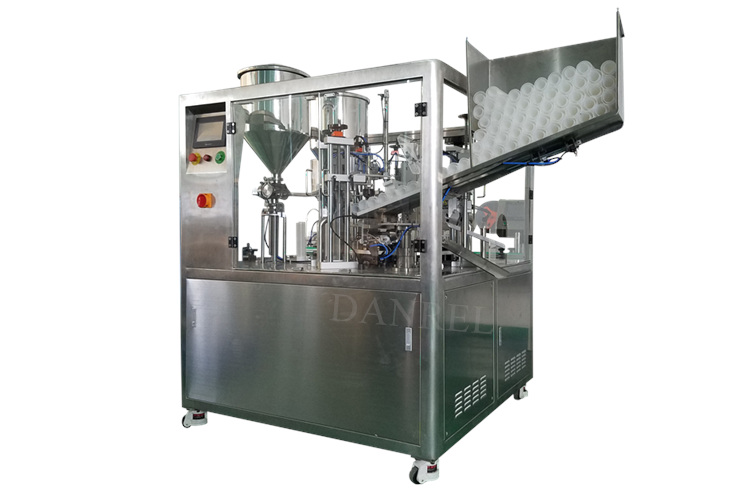

Ultrasonic Fully Automatic Plastic Tube Sealing and Filling Machine with pump

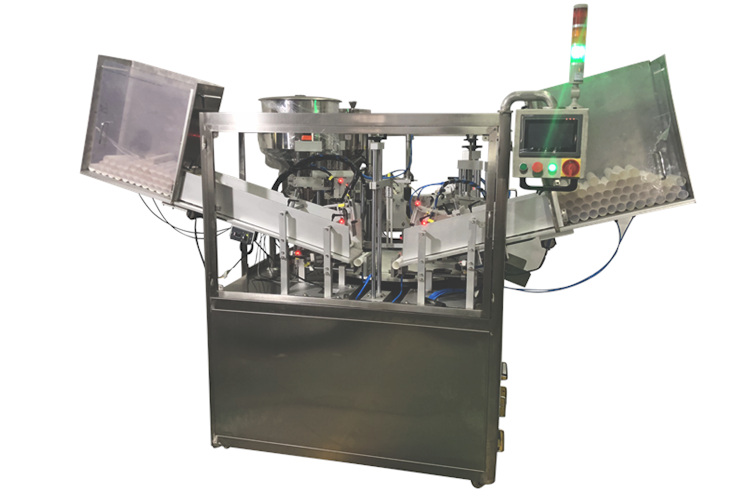

Dual Stations Ultrasonic Fully Automatic Plastic Tube Sealing and Filling Machine

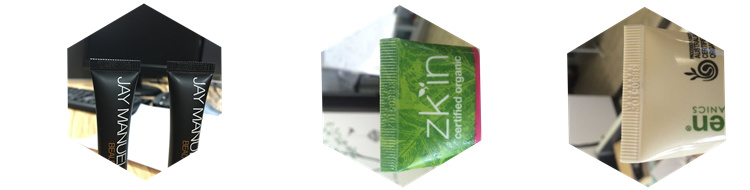

Ultrasonic Fully Automatic Plastic Tube Sealer and Filler Sample

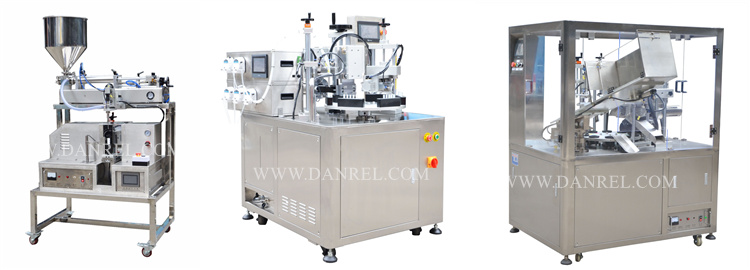

SHENZHEN DANREL Automatic Plastic Tube Filling Sealing Machines

SHENZHEN DANREL Automatic Plastic Tube Filling Sealing Machines

acking & Delivery
Ultrasonic Fully Automatic Plastic Tube Sealer and Filler
Ultrasonic Fully Automatic Plastic Tube Sealer and Filler
Ultrasonic Fully Automatic Plastic Tube Sealer and Filler
Ultrasonic Fully Automatic Plastic Tube Sealer and Filler
FAQ

Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.

Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time

Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance. The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L

Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.

Ultrasonic Fully Automatic Plastic Tube Sealer and Filler




Model GF—400L          GF—400F
Tube material   Metal tube, ALU tube  Plastic tube, Multiple tube
Tube diameter φ13—φ50      φ13—φ50
Tube length      50—250(customizable)   50—250(customizable)
Filling volume   10—300ml/tube(adjustable)   10—300ml/tube(adjustable)
Filling accuracy   ≤±1%     ≤±1%
Product capacity(pc/h)   1800—4200(adjustable)   1800—4000(adjustable)
Working pressure      0.55—0.65mpa 0.55—0.65mpa
Motor power   2kw(380V/220V 50Hz)   2kw(380V/220V 50Hz)
Heat sealing power  3kw           3kw
Overall dimension(mm)  2620×1236×1980     2620×1236×1980
Machine weight(kg) 1100 1100
