Automatic plastic tube filling and sealing machine for comestic

Quantity:
  • GF-400
  • DANREL

Video on Youtube:
1. Plastic tube: http://youtu.be/wm-FJdpDC50
2. Alunimum tube: http://youtu.be/TyZC5aO68W0

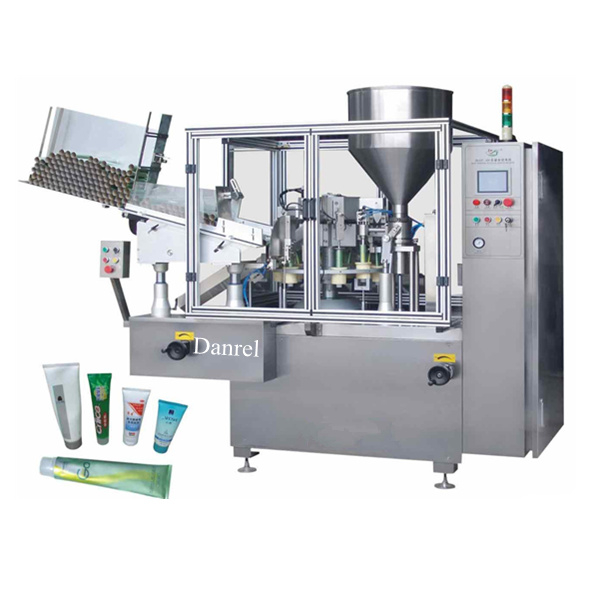

Model: GF-400 Automatic plastic tube filling and sealing machine for comestic


Machine Features
1. All parts connect with material is produced by stainless steel and ceramic which is comply with GMP.
2. All parts is quick union and easy cleaning
3. Customer can easy adjust Filling capacity, Filling speed, Main machine speed
4. Filling head have protection against the drop system and will make sure no drop and drawbench.
5. AC inverter for main drive for step-less speed variation-
6. Automatic tube hopper with pneumatic system of tube insertion into rotary index table
7. Rotary index table for transferring tubes to filling, closing stations and other sections
8. Tube orientation controlled by photocell for accurate positioning of tubes
9. 50 liters capacity stainless steel hopper(jacket hopper to keep temperature for optional)
10. Hot air tool for plastic / laminated tubes (Leister make heater)
11. Air supply to air heater through independent blower
12. Batch code embossing facility within sealing jaws

Machine Application:
toothpaste, ointment, paste food, cosmetics, hair-dyeing, adhesive, art palette and so on.

Tube Filling Sealing Samples:
Automatic plastic tube filling and sealing machine for comestic


Automatic plastic tube filling and sealing machine for comestic 2
Model GF—400L          GF—400F
Tube material   Metal tube, ALU tube  Plastic tube, Multiple tube
Tube diameter φ13—φ50      φ13—φ50
Tube length      50—250(customizable)   50—250(customizable)
Filling volume   10—300ml/tube(adjustable)   10—300ml/tube(adjustable)
Filling accuracy   ≤±1%     ≤±1%
Product capacity(pc/h)   1800—4200(adjustable)   1800—4000(adjustable)
Working pressure      0.55—0.65mpa 0.55—0.65mpa
Motor power   2kw(380V/220V 50Hz)   2kw(380V/220V 50Hz)
Heat sealing power  3kw           3kw
Overall dimension(mm)  2620×1236×1980     2620×1236×1980
Machine weight(kg) 1100 1100
