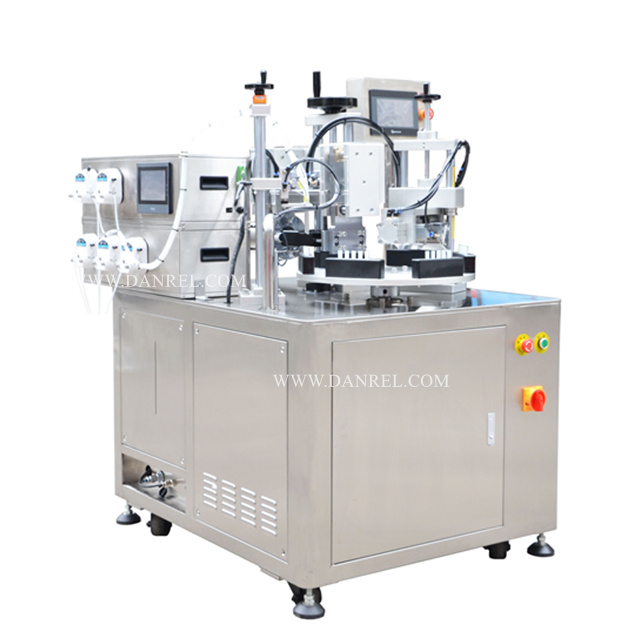

0.5ml-15ML Peristaltic Pump Automatic Plastic Tube Filling Sealing Machine for Liquid

Quantity:
  • DR-2015T
  • DANREL

Item: 0.5ml-15ml Peristaltic Pump Automatic Plastic Tube Filling Sealing Machine for Liquid

Model No.: DR-2015T

Features and Advantages

1. Function: Filling, Sealing, Counting, Date Printing.

Automatic detection: No tube no filling/no sealing/no counting

2. Auto rotary table six working stations for filling sealing, more efficient.

3. Anti drip filling machine to filling the 5 strips tubes at the same time,make the filling more accurate.

4. Adopt digital ultrasonic machine, stable output and performance, turely auto-tuning.

5. Machine body of stainless steel, meet with GMP requirement

6. PLC/HMI control, English Interface Touch sreen, simple operation and parameters setting

7. This machine is sealing by ultrasonic, fast and nice looking, engery saving.

8. Main parts adopt imported components, Japan and Taiwan

9. Can connect the filling tank directly. More convenience use PLC to operate and adjust the filling weight.

10. Suitable for all kinds of plastic tubes, composite tubes, PE tubes.


Advantages:

Compared with traditional type heat sealing method, the ultrasonic tube sealing has the following advantages:

* Fast Sealing, save time
* Sealing is nice looking, no plastic metling overflow
* Lower power consumption, energy saving



Functions:


1. Ultrasonic Sealing
2. Cutting (trimming)
3. Mark Searching
4. Batch No Coding
5. PLC/HMI  control, English/French/Espanol interface as request
6. 6 tube stations
7. Stainless steel body, Meet with GMP requirement
8. Meet with CE requirement.



Technique parametes

Peristaltic Pump Automatic Plastic Tube Filling Sealing Machine
Model No. DR-2015T
Ultrasonic Power Output 2600W
Frequency 15KHz
Voltage AC 110/220V, 50/60Hz
Filling Range 0.5-15 ml
Filling Precision  ≤±1%
Delay Time 0.01-2.99 S
Sealing Time 0.01-2.99 S
Hold Time 0.01-2.99 S
Horn Journey 75 mm
Driven Model Pneumatic
Operation Mode PLC/MHI
Weight 460 KGS
Dimension  L*W*H 1310*1050*1760 mm

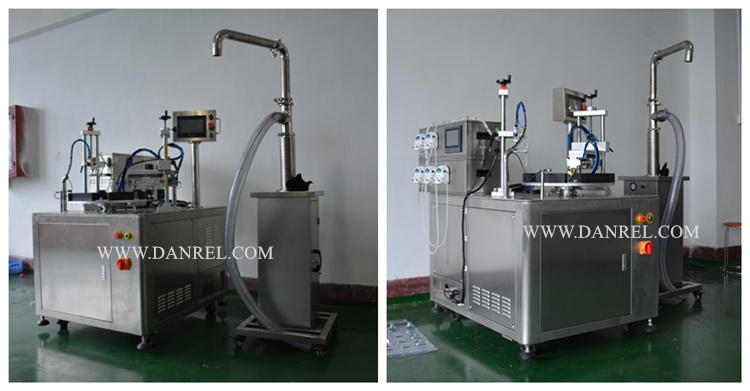

Peristaltic Pump Automatic Plastic Tube Filling Sealing Machine for Liquid (2)

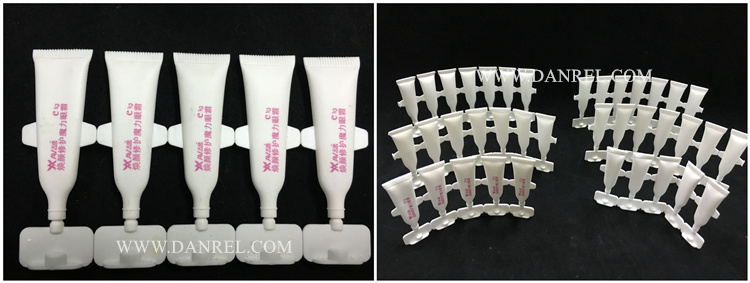

Peristaltic Pump Automatic Plastic Tube Filling Sealing Machine for Liquid tube SAMPLE

SHENZHEN DANREL Automatic Plastic Tube Filling Sealing Machines

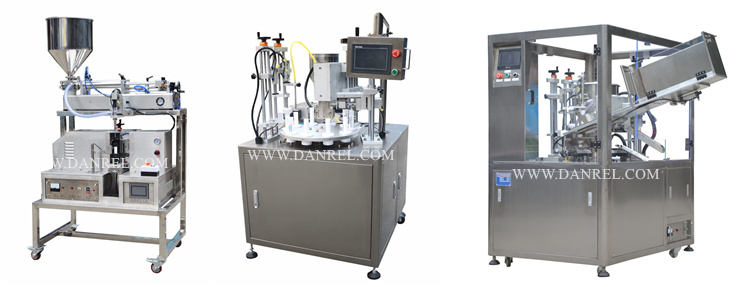

Peristaltic Pump Automatic Plastic Tube Filling Sealing Machine for Liquid (3)

acking & Delivery
Peristaltic Pump Automatic Plastic Tube Filling Sealing Machine for Liquid
Peristaltic Pump Automatic Plastic Tube Filling Sealing Machine for Liquid
Peristaltic Pump Automatic Plastic Tube Filling Sealing Machine for Liquid
Peristaltic Pump Automatic Plastic Tube Filling Sealing Machine for Liquid
FAQ

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and trainning?

1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compresor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.

Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
