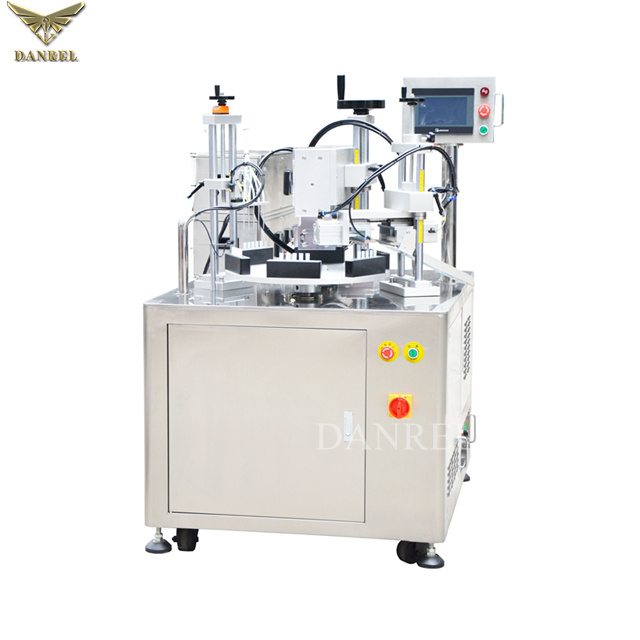

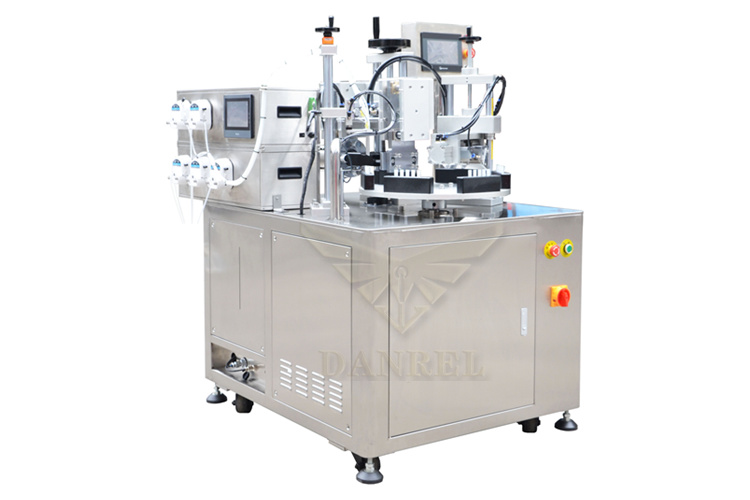

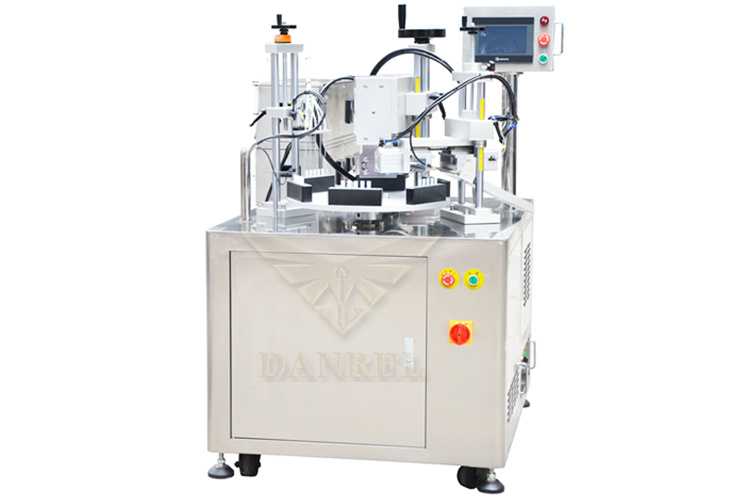

Automatic Ultrasonic Plastic Ampule Bottle and Eye Dropper Tube Filling and Sealing Machine, LDPE Ampoule Tube Sealer

Quantity:
  • DR-2015T
  • DANREL

Item: Automatic Ultrasonic Plastic Ampule Bottle and Eye Dropper Tube Filling and Sealing Machine, LDPE Ampoule Tube Sealer

Model No.: DR-2015T
Automatic Ultrasonic Plastic Ampule Bottle and Eye Dropper Tube Filling and Sealing Machine, LDPE Ampoule Tube Sealer

Automatic Ultrasonic Plastic Ampule Bottle and Eye Dropper Tube Filling and Sealing Machine, LDPE Ampoule Tube Sealer

DANREL ULTRASONIC TUBE FILLING SEALING MACHINE

The process of tube sealing machine eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic sealing with the proper time setting and pressure is the fastest most reliable method for a variety of tube material sealing.

* Eliminate use of consumable material
* Produce airtight and watertight seams
* Increase production time

Main Features
1. Function: Filling, Sealing, Counting, Date Printing.
Automatic detection: No tube no filling/no sealing/no counting
2. Auto rotary table six working stations for filling sealing, more efficient.
3. Anti drip filling machine to filling the 5 strips tubes at the same time,make the filling more accurate.
4. Adopt digital ultrasonic machine, stable output and performance, turely auto-tuning.
5. Machine body of stainless steel, meet with GMP requirement
6. PLC/HMI control, English Interface Touch screen, simple operation and parameters setting
7. This machine is sealing by ultrasonic, fast and nice looking, energy saving.
8. Main parts adopt imported components, Japan and Taiwan
9. Can connect the filling tank directly. More convenience use PLC to operate and adjust the filling weight.
10. Suitable for all kinds of plastic tubes, composite tubes, PE tubes.


Functions:

1. Tube Filling

2. Ultrasonic Sealing
3. Cutting (trimming)

4. Batch No Coding
5. PLC/HMI control, English/French/Espanol interface as request
6. 6 tube stations

7. Stainless steel body, Meet with GMP requirement
8. Meet with CE requirement.

Model No
DR-2015T
Ultrasonic Power
2600 W
Frequency
15 KHz
Power Supply
AC 110/220V, 50/60Hz
Delay Time
0.01-2.99 S
WeldTime
0.01-2.99 S
Hold Time
0.01-2.99 S
Driven Mode
Pneumatic
Stroke
75 MM
Working Pressure
0.5-0.7 MPa
Tube Height Range
50-250 MM
Filling Range
0.5-15ml for liquid
Working Station Number
6
Packing Dimension
L*W*H 1310*1050*1760 mm
Gross Weight
550 KGS

It's applicable to cosmetic, pharmaceutical, food, industry product and other soft tube sealing. Extensional organization of the machine is made of aluminium alloy and stainless steel.

Automatic Ultrasonic Plastic Ampule Bottle and Eye Dropper Tube Filling and Sealing Machine, LDPE Ampoule Tube Sealer
Automatic Ultrasonic Plastic Ampule Bottle and Eye Dropper Tube Filling and Sealing Machine, LDPE Ampoule Tube Sealer
Detailed Images
Automatic Ultrasonic Plastic Ampule Bottle and Eye Dropper Tube Filling and Sealing Machine, LDPE Ampoule Tube Sealer


FILLING MACHINE

Multiple peristaltic pump with filling range 0.5-15ml for liquid filling


FILLING NOZZLE

Anti-drip filling nozzle, suitable for Liquid, cream, gel, ointment

Automatic Ultrasonic Plastic Ampule Bottle and Eye Dropper Tube Filling and Sealing Machine, LDPE Ampoule Tube Sealer
Automatic Ultrasonic Plastic Ampule Bottle and Eye Dropper Tube Filling and Sealing Machine, LDPE Ampoule Tube Sealer


PLC TOUCH SCREEN

Easy operation touch screen for quick setting.


Mark Search/ORIENTATION

Using high sensitivity Japan-Imported Panasonic infrared positioning system, plastic tube will be turning to right side according to the mark on the tube


Automatic Ultrasonic Plastic Ampule Bottle and Eye Dropper Tube Filling and Sealing Machine, LDPE Ampoule Tube Sealer
Automatic Ultrasonic Plastic Ampule Bottle and Eye Dropper Tube Filling and Sealing Machine, LDPE Ampoule Tube Sealer


Transducer+Booster

High Quality Imported transducer and boosters, durable and stable

Certifications
Plastic TubeFilling And Sealing Machine

Plastic TubeFilling And Sealing Machine

Plastic TubeFilling And Sealing Machine
Packing & Delivery
Plastic TubeFilling And Sealing Machine

Packaging
Size
L*W*H=131*105*176CM
Weight
550 KGS



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Plastic TubeFilling And Sealing MachinePlastic TubeFilling And Sealing Machine

Plastic TubeFilling And Sealing Machine

Plastic TubeFilling And Sealing Machine

Plastic TubeFilling And Sealing Machine
Our Company
Plastic TubeFilling And Sealing Machine

Plastic TubeFilling And Sealing Machine
Plastic TubeFilling And Sealing Machine

Plastic TubeFilling And Sealing Machine

Plastic TubeFilling And Sealing Machine

Plastic TubeFilling And Sealing Machine

Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. DANREL ULTRASONIC PLASTIC TUBE FILLING AND SEALING MACHINE.

* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier

FAQ
Plastic TubeFilling And Sealing Machine

Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .

Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
