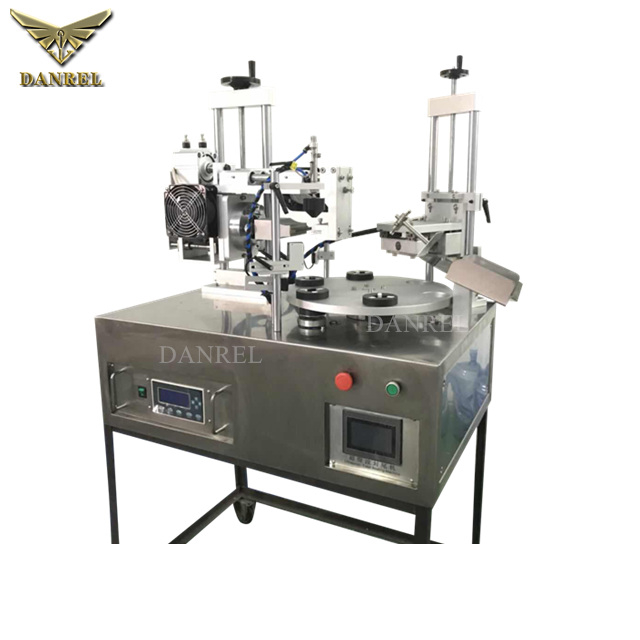

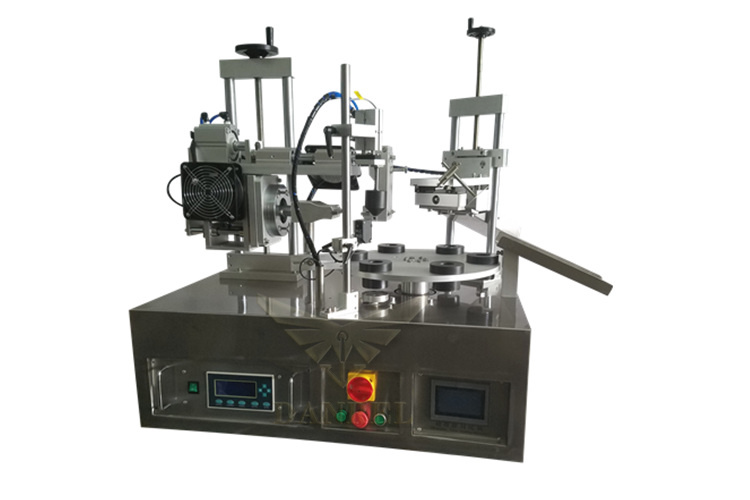

Price of Desktop Automatic Plastic Tube Sealing Machine Cosmetic Tube Sealer

Quantity:
  • DR-2012T-A
  • DANREL

Item: Price of Desktop Automatic Plastic Tube Sealing Machine Cosmetic Tube Sealer

Model No.: DR-2012T-A

Product Description
Price of Desktop Automatic Plastic Tube Sealing Machine Cosmetic Tube Sealer
Price of Desktop Automatic Plastic Tube Sealing Machine Cosmetic Tube Sealer
Price of Desktop Automatic Plastic Tube Sealing Machine Cosmetic Tube Sealer
Price of Desktop Automatic Plastic Tube Sealing Machine Cosmetic Tube Sealer

DANREL ULTRASONIC TUBE FILLING SEALING MACHINE

The process of tube sealing machine eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic sealing with the proper time setting and pressure is the fastest most reliable method for a variety of tube material sealing.

* Eliminate use of consumable material
* Produce airtight and watertight seams
* Increase production time

Main Features
1.
Function: Automatic Mark searching(orientation), Ultrasonic sealing, Stamping, Trimming, Counting;

2. Automatic rotary table with 6 tube holders, high speed.

3. Adopt digital ultrasonic circuit, stable output and performance
4. Machine body of stainless steel, meet with GMP requirement
5. PLC/HMI control, simple operation and parameters setting
6. Machine with mark searching function, more precise sealing
7. Suitable for plastic tubes, composite tubes, PE tubes.
8. Compared with traditional type heat sealing method, the ultrasonic tube sealing has the following advantages:
* Fast Sealing, save time

* Sealing is nice looking, no plastic melting overflow

* Lower power consumption, energy saving


Functions:
1. Ultrasonic Sealing
2. Cutting (trimming)
3. Mark Searching
4. Batch No Coding
5. PLC/HMI control, English/French/Espanol interface as request
6. 25 tube tubes/min
7. Stainless steel body, Meet with GMP requirement
8. Meet with CE requirement.

Model No
DR-2012T-A
Ultrasonic Power
2000 W
Frequency
20 KHz
Power Supply
AC 110/220V, 50/60Hz
Delay Time
0.01-2.99 S
WeldTime
0.01-2.99 S
Hold Time
0.01-2.99 S
Driven Mode
Pneumatic
Stroke
75 MM
Working Pressure
0.5-0.7 MPa
Tube Diameter Range
10-50 MM
Tube Height Range
50-200 MM
Capacity
around 25 tubes/min
No. of Working Stations
6
Packing Dimension
L*W*H 1050*930*1340MM
Gross Weight
280 KGS

It's applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing. Extensional organization of the machine is made of aluminium alloy and stainless steel.

Detailed Images


Automatic Rotary Table

Turntable with six tube holders/moulds for high speed sealing

Price of Desktop Automatic Plastic Tube Sealing Machine Cosmetic Tube Sealer
Price of Desktop Automatic Plastic Tube Sealing Machine Cosmetic Tube Sealer


PLC TOUCH SCREEN

Easy operation touch screen for quick setting.



Mark Search/ORIENTATION

Using high sensitivity Japan-Imported Panasonic infrared positioning system, plastic tube will be turning to right side according to the mark on the tube


Price of Desktop Automatic Plastic Tube Sealing Machine Cosmetic Tube Sealer
Price of Desktop Automatic Plastic Tube Sealing Machine Cosmetic Tube Sealer



ULTRASONIC HORN


Certifications
Plastic TubeFilling And Sealing Machine
Plastic TubeFilling And Sealing Machine
Plastic TubeFilling And Sealing Machine
Packing & Delivery
Plastic TubeFilling And Sealing Machine
Packaging
Size
L*W*H=105*93*134CM
Weight
280 KGS



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Plastic TubeFilling And Sealing MachinePlastic TubeFilling And Sealing Machine
Plastic TubeFilling And Sealing Machine
Plastic TubeFilling And Sealing Machine
Plastic TubeFilling And Sealing Machine
Our Company
Plastic TubeFilling And Sealing Machine
Plastic TubeFilling And Sealing Machine
Plastic TubeFilling And Sealing Machine
Plastic TubeFilling And Sealing Machine
Plastic TubeFilling And Sealing Machine
Plastic TubeFilling And Sealing Machine

Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. DANREL ULTRASONIC PLASTIC TUBE FILLING AND SEALING MACHINE.

* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier

FAQ
Plastic TubeFilling And Sealing Machine

Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .

Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
