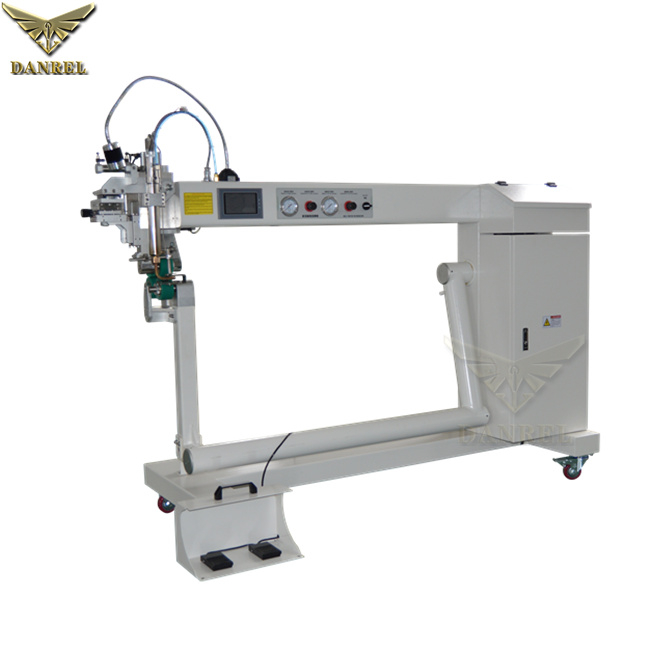

PVC Hot Air Welding Machine For Zorb

Quantity:
  • DR-T300L-1300
  • DANREL

Name: PVC Hot Air Welding Machine For Zorb

Model No.: DR-T300L-1300
PVC Hot Air Welding Machine For Zorb Youtube
https://youtu.be/haFU3ATFM18
http://youtu.be/RJw8PjxYAJM


Principle of hot air welding machine

Hot air welding machine use very precise heat, speed and pressure to bond industrial fabrics. The correct combination of these three parameters will allow you to achieve a complete weld. During the hot air welding process, heat is provided by heat elements and is injected at the welding point. The tightly controlled temperature can range from 400C to 750C.

Machine Features: Hot Air Welding Machine

1. PLC/HMI easy operation touch screen , English Interface.

2. Precise Temperature control, heating temperature up to 750 ' C

3. Suitable for wide range material seam sealing.

4. Quick, repeatable head adjustments for precision welding

5. Quick, easy guide change for multiple seam configurations, overlap, hem, hem with cord, butt seal with tape, etc

6. Available in hot wedge, hot air or equipped with both for optimal product production.

7. High Quality Imported components, Japan Mitsubishi PLC, OMRON, AIRTAC Pneumatic Parts, etc

8. Arm length can be customized, 800 mm (standard), 1300 mm, 1500 mm, 2000mm, etc

9. Machine can be customized according to your products, to achieve more convenient operation




QUALITY & RELIABILITY


* Lean manufacturing principles

* Solid steel frame design

* Designed and built for multiple decade use

* Built for multiple shift production

* Low maintenance for extended up time

* Industry known for longest lasting machines

* First and last machine you will need for welding



Technical Parameters: PVC Hot Air Welding Machine For Zorb

Heater Power 1800 W
Power Consumption 3 KW
Voltage AC 220 V  50/60 Hz
Rated Current 15 A
Speed 1-24 m/min
Air Consumption 85L/Min at 6.2 bar
Working Pressure 3-6 KG/cm²
Upper Roller Pressure 0.5-4.5 KG/cm²
Width of roller 10-50 mm
Width of hot air nozzle 10-50 mm
Swing arm length 1300 mm
Temperature up to 750 ℃
Gross weight 440 KG
Packing Dimension 2300*790*1750 mm

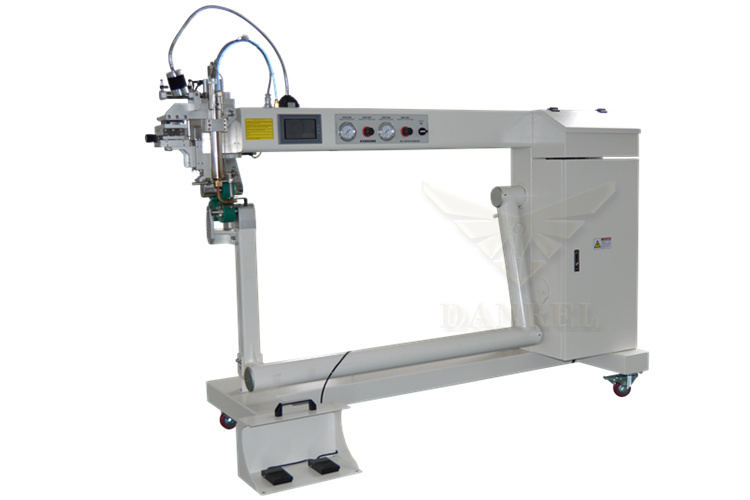

PVC Hot Air Welding Machine For Zorb



Various Seam Configurations:


PVC Hot Air Welding Machine For Zorb


Application: PVC Hot Air Welding Machine For Zorb

Super thermal space to accomodate to super large,  inflatable slide, obstacle course,  bounce house, banana boats, Zodiac Boats, Rubber Boats, Hovercraft, bumper ball, zorb ball, large inflatable tents, su nshade, sun umbrealla, trcuk covers, swimming pool, Temporary shelters, amusement city, water park, water roller, inflatable cartoon, advertising inflatables, Zodiac, Giant Dome Tents , sport boat, leisure boat, rescue boat

Application Samples Hot Air Welding Machine


Customized Functions:

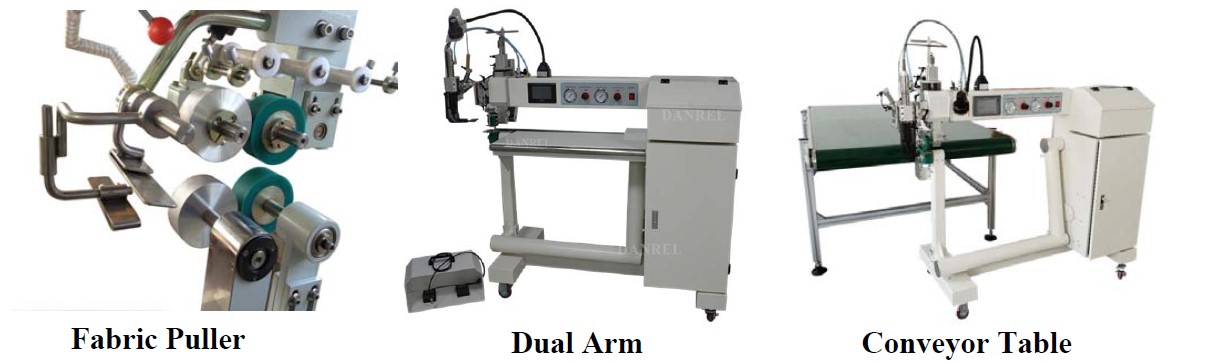

Customization Function PVC Hot Air Welding Machine For Zorb


FAQ

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and trainning?

1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compresor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.

PVC Hot Air Welding Machine For Zorb



Technical Parameters:

Hot Air Welding Machine Zorb
Heater Power 1800 W
Power Consumption 3 KW
Voltage AC 220 V  50/60 Hz
Rated Current 15 A
Speed 1-24 m/min
Air Consumption 0.3 m3/min
Working Pressure 3-6 KG/cm²
Upper Roller Pressure 0.5-4.5 KG/cm²
Width of roller 10-50 mm
Width of hot air nozzle 10-50 mm
Upper roller lift 15-25 mm
Swing arm length 1300 mm
Temperature up to 750 ℃
Gross weight 390 KG
Packing Dimension 2100*790*1750 mm
