DR-T300A
DANREL
How the machine works?
https://youtu.be/lqFX4zdg6Ps
https://youtu.be/Q-eDYtuzP8s

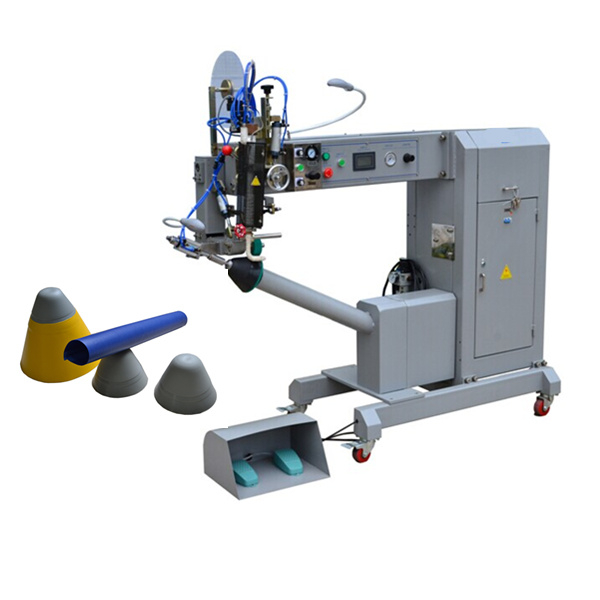

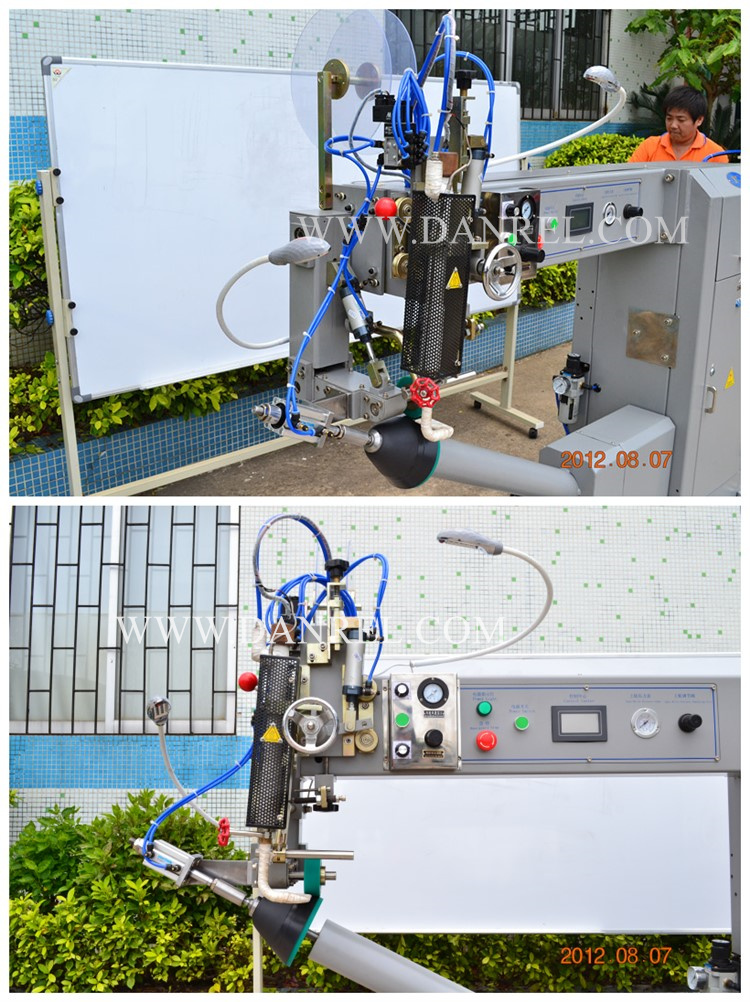

Item: Curve Welder Hot Air Welding Machine for Inflatable Boats Cone
Model No.: DR-T300A
Principle of hot air welding machine
Hot air welding machine use very precise heat, speed and pressure to bond industrial fabrics. The correct combination of these three parameters will allow you to achieve a complete weld. During the hot air welding process, heat is provided by heat elements and is injected at the welding point. The tightly controlled temperature can range from 400C to 750C.
Machine Features:
1. Specail designed for curve welding, such as inflatable boats cone.
2. PLC/HMI digitally control all welding parameters, English Interface touch screen
3. Precise Temperature control, max 750 ' C
4. Suitable for wide range material seam sealing.
5. Suitable for all kinds of welding types, overlap, hemming, hem with cord, butt seal with tape, etc
6. High Quality Imported components, Japan Mitsubishi PLC, OMRON electronics, AIRTAC Pneumatic Parts, etc
QUALITY & RELIABILITY
* Lean manufacturing principles
* Solid steel frame design
* Designed and built for multiple decade use
* Built for multiple shift production
* Low maintenance for extended up time
* Industry known for longest lasting machines
* First and last machine you will need for welding
Technical Data
| Curve Welder Hot Air Welding Machine for Inflatable Boats Cone | |
| Heater Power | 3500W |
| Power Consumption | Approx 6KW |
| Voltage | AC220V±10% 50/60 Hz |
| Rated Current | 18A |
| Speed | 1-24 m/min |
| Air Consumption | 85L/Min at 6.2 bar |
| Working Pressure | 3-6 KG/cm² |
| Upper Roller Pressure | 0.5-4.5 KG/cm² |
| Width of roller | 15-50 mm |
| Width of hot air nozzle | 15-50 mm |
| Upper roller lift | 15-25 mm |
| Swing arm length | 800 mm |
| Temperature | up to 750 ℃ |
| Gross weight | 390 KG |
| Packing Dimension | 1800*790*1750 mm |
Application

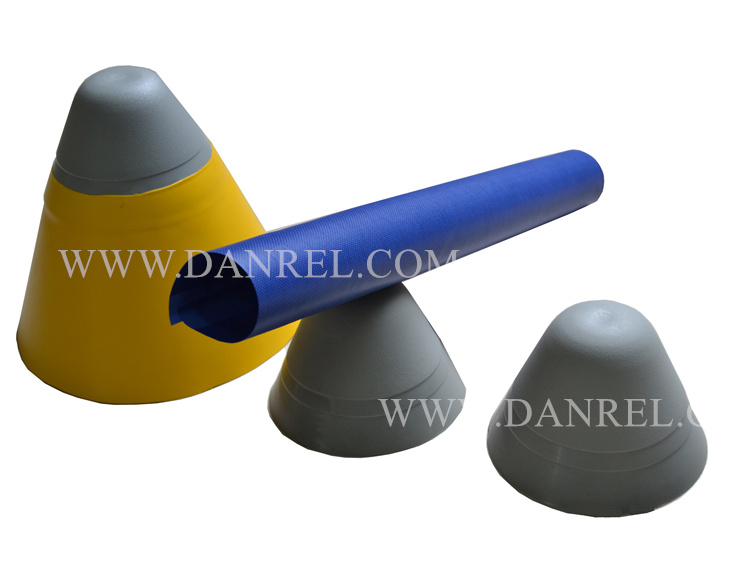

Inflatable boats, tents, sunshades, water capsules, inflatable bags, a variety of curve welding requirement. Fast and nice looking for cuvre welding
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and trainning?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compresor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
