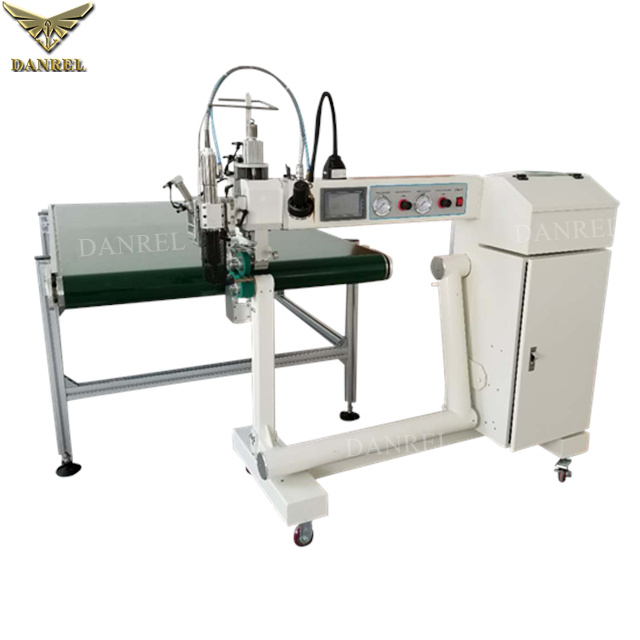

Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor

Availability:
Quantity:
  • DR-T300B-Conveyor

  • DANREL

youtube

Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Model No.: DR-T300B-Conveyor

Product Description
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor

Product Application: Multifunction Hot Wedge & Hot Air Welding Machine

1. Synchronized conveyor is ideal for larger & heavy duty jobs.

2. PLC/HMI easy operation touch screen , English Interface.

3. Precise Temperature control, hot air heating up to 750 ' C

4. Suitable for wide range material sealing ;

5. Quick, repeatable head adjustments for precision welding

6. Quick, easy guide change for multiple seam configurations, overlap, hem, hem with cord, butt seal with tape, etc

7. Available in hot wedge, hot air or equipped with both for optimal product production.

8. High Quality Imported components, Japan Panasonic PLC, OMRON, AIRTAC Pneumatic Parts, etc

9. Arm length can be customized, 800 mm (standard), 1500 mm, 1800MM. etc

10. Machine can be customized according to your products, to achieve more convenient operation.

QUALITY & RELIABILITY

1. Lean manufacturing principles
2. Solid steel frame design
3. Designed and built for multiple decade use
4. Built for multiple shift production
5. Low maintenance for extended up time
6. First and last machine you will need for welding.
Model NO.
DR-T300D-Dual Arms
Hot Air Heater Power
3500W
Hot Wedge Heater Power
450W(optional)
Power Consumption
Approx 6KW
Power Supply
AC220V±10%, 50/60Hz
Rated Current
18A
Welding Speed
1.1-24 meters/min
Working Pressure
0.5-0.7Mpa
Air Consumption
0.3M3/min
Seam Roller Size
10-50MM
Hot Air Nozzle
10-50MM
Heating Temperature
Max.750'C
Packing Dimension
L*W*H=1650*770*1590 MM
Gross Weight
360 KGS
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Main Parts
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor

PLC touch screen Operation

1. Easy operation touch screen for quick setting.

2. English operation interface.

3. Panasonic PLC

Easy Adjust Welding Head

1. Quick, repeatable head adjustments for precision welding;

2. Three Dimensional adjusting design.

Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor

Fast Welding Tooling Change-over.

1. Various seam configurations capable: Overlap, hem, hem with pocket, hem with rope, tape bonding, etc

2. Quick change tooling capable -- reduces downtime during tooling changeover for difference applications.


Rollers and Nozzles

1. Roller size ranges from 10-60MM ;

2. Roller material available in rubber and steel.


Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor


Hot Wedge Welding(optional)

1. Wedge tip size ranges from 10-45MM ;

2. Wedge Material: Aluminium.

3. Hot Wedge Heating Temperature: Max.450'C

Our Company
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor

Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery.
* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier

Certifications
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Packing & Delivery
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Packaging
Size
L*W*H=165*780*159 CM
Weight
340 KGS



Packaging Details

The normal package is Plywood box(Size: L*W*H).

Fumigation certificate can be provided if needed.


If container is too tigher,we will use pe film for packing or pack it according to customers special request.


Fragile parts will be seperately packed with cushion packing material
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
Manufacutering Tents, Canopies, Shelters, Tarps, Awnings Hot Air Welding Machine Hot Wedge Welder With Synchronized Conveyor
FAQ

Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.

Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
B: The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .

Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
