DR-T300B-Table
DANREL

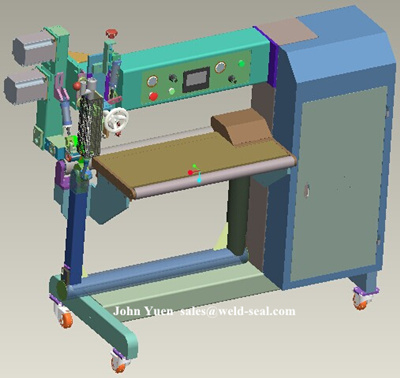

Name: Hot Wedge & Hot Air PVC Banner Welding Machine
Model No.: DR-T300-Table
Video:
Hem with Rope: https://youtu.be/haFU3ATFM18
Overlap welding: http://youtu.be/AnX5aC7bqcw
Hem with Pocket: http://youtu.be/8h3R8m0NXUo
Hem With Hot air: https://youtu.be/fEMVxCe_XqU
Butt seal With tape: http://youtu.be/RJw8PjxYAJM
Machine Features:
1. PLC/HMI easy operation touch screen , English Interface.
2. Precise Temperature control, heating temperature up to 750 ' C
3. Suitable for wide range material seam sealing.
4. Quick, repeatable head adjustments for precision welding
5. Quick, easy guide change for multiple seam configurations, overlap, hem, hem with cord, butt seal with tape, etc
6. Available in hot wedge, hot air or equipped with both for optimal product production.
7. High Quality Imported components, Japan Mitsubishi PLC, OMRON, AIRTAC Pneumatic Parts, etc
8. Arm length can be customized, 800 mm (standard), 1300 mm, 1500 mm, 2000mm, etc
9. Machine can be customized according to your products, to achieve more convenient operation
QUALITY & RELIABILITY
* Lean manufacturing principles
* Solid steel frame design
* Designed and built for multiple decade use
* Built for multiple shift production
* Low maintenance for extended up time
* Industry known for longest lasting machines
* First and last machine you will need for welding
| Technical Data: Hot Air PVC Banner Welding Machine | |
| Heater Power | 3500 W |
| Power Consumption | Approx 6KW |
| Voltage | AC220V±10% 50/60 Hz |
| Rated Current | 18A |
| Speed | 1-24 m/min |
| Air Consumption | 85L/Min at 6.2 bar |
| Working Pressure | 3-6 KG/cm² |
| Upper Roller Pressure | 0.5-4.5 KG/cm² |
| Width of roller | 10-50 mm |
| Width of hot air nozzle | 10-50 mm |
| Swing arm length | 800 mm(customization offered) |
| Temperature | up to 750 ℃ |
| Gross weight | 390 KG |
| Packing Dimension | 1800*790*1750 mm |
Various Seam Configurations:
Customized Functions:
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and trainning?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compresor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
