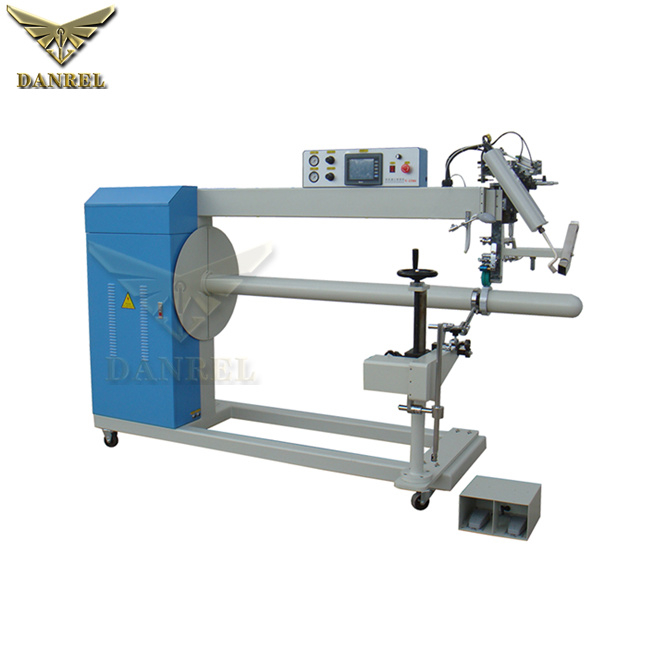

DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing

Availability:
Quantity:
  • DR-V1800

  • DANREL

Name: DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing

Model No.: DR-V1800

Product Description
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing

Function: (PVC Reinforced Ducting Making Welding Machine)

DR-V1800 Hot Air Welding Machine is specifically designed to weld flexible reinforced ducting. This machine will weld large reinforced tubes from 15” to any diameter and can easily add a wear strip to the outside.

Function: (PVC Reinforced Ducting Making Welding Machine)

1. Hot air welding for continuous manufacturing.
2. Variable wire diameter and wire pitch for product versatility
3. PLC/HMI easy operation touch screen , English Interface.
4. Precise Temperature control, max 750 ' C
5. Quick, repeatable head adjustments for precision welding.
6. Take away system for managing multiple ducting lengths.

QUALITY & RELIABILITY

1. Lean manufacturing principles
2. Solid steel frame design
3. Designed and built for multiple decade use
4. Built for multiple shift production
5. Low maintenance for extended up time
6. First and last machine you will need for welding

Model No.
DR-V1800
Power Supply
AC 220V ±10%, 50/60Hz
Heater Power
3500W
Rated Current
18A
Speed
1-18Meters/min
Heating Temperature
Up to 750'C
Seam Width
10-50MM
Wire Diameter Range
Up to 8MM
Ducting Diameter Range
300MM - Any size
Throat Length
2100MM
Working Pressure
0.5 MPa
Packing Dimension
A: L*W*H=3100*1230*2160 mm
B: L*W*H=2900*750*1700 mm


Gross Weight
1340 KGS
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing
Main Parts
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing

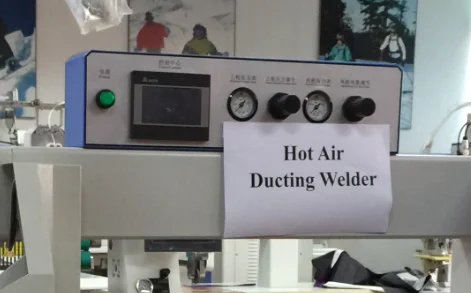

PLC touch screen Operation


1. Easy operation touch screen for quick setting.


2. English operation interface.

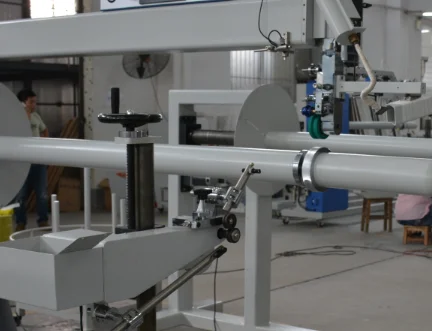

Wire Feeding Part

1. Variable wire diameter and wire pitch for product versatility


2. Quick, repeatable head adjustments for precision welding;

DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing
Our Company
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing

Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. * Quality is our culture * Competitive Advantages * Market Niche * Trustworthy Supplier

Certifications
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing
Packing & Delivery
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing
Packaging
Size
Case 1: L*W*H=3100*1230*2160 mm
Case 2: L*W*H=2900*750*1720 mm

Weight
1340 KGS



Packaging Details
The normal package is Plywood box(Size: L*W*H). Fumigation certificate can be provided if needed.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Fragile parts will be seperately packed with cushion packing material
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation & Hose & Tubing
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation
FAQ
DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation

Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect
power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.


Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .

Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.

DANREL Sprial PVC Reinforced Flexible Ducting Making Machine Hot Air Welding Machine for Ventilation



Model DR-V1800
Power supply AC 220V 50Hz
Heating Power 1800 W
Rated current 15 A
Working Pressure 0.5-0.7 MPa
Air Consumption 0.3M3/min
Total pressure 6kg/ c㎡
Upper wheel pressure 0.5-4.5kg/ c㎡
Hot Air Temperature  0-750℃ (adjustable)
Hot Wedge Temperature 0-550 'C
Activity space for upper wheel 18-25mm
Seam Speed 2.5-18m/min (adjustable)
Hot Air Nozzle Width 20-40 mm (as request)
Width of Seam Roller 20-40 mm (can be customized)
Weight 1100 KG
Dimension Case 1: 3100*1230*2160 mm
Case 2: 2900*750*1720 mm
