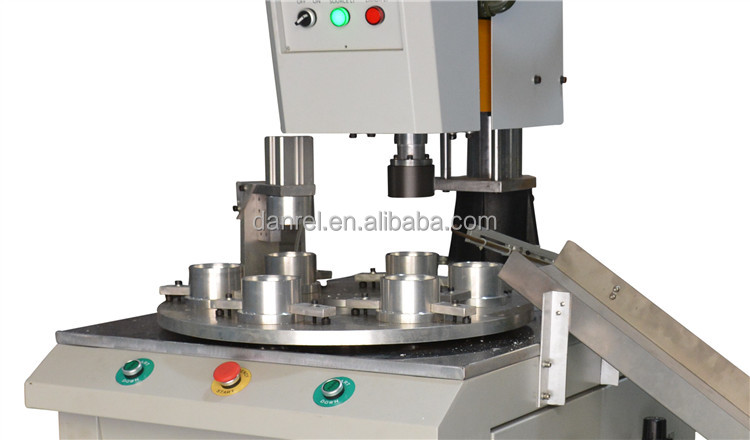

1. Automatic Index rotary table.
2. Work stations available in 4/6/8, it is made according to the size of the welding products.

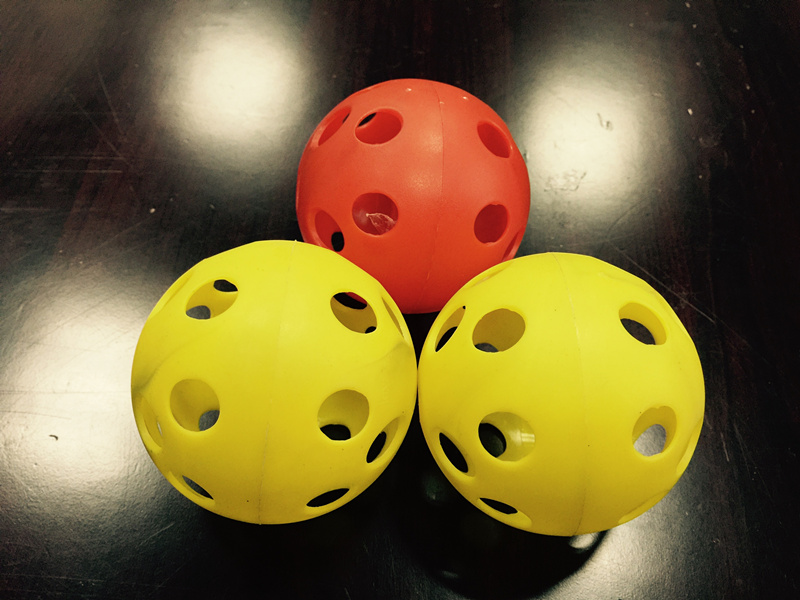

3. Capable of ejecting and blowing to release the welded balls from the fixtures after spin welding.
Availability: | |
---|---|
Quantity: | |
DR-SP2040A-Balls
DANREL
Main Features

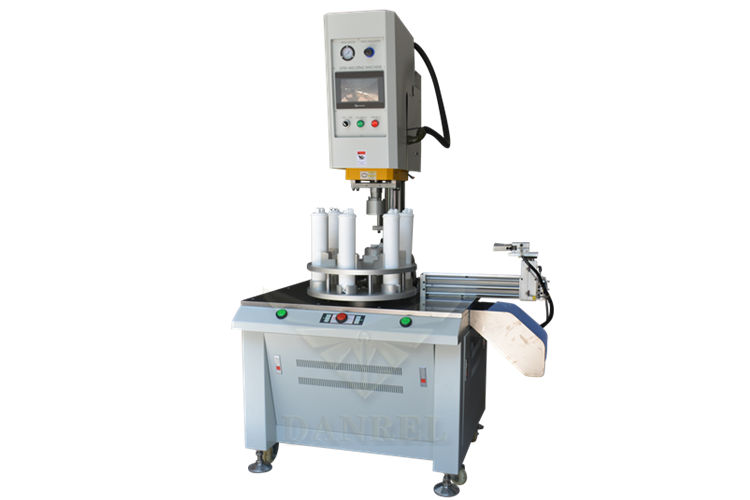

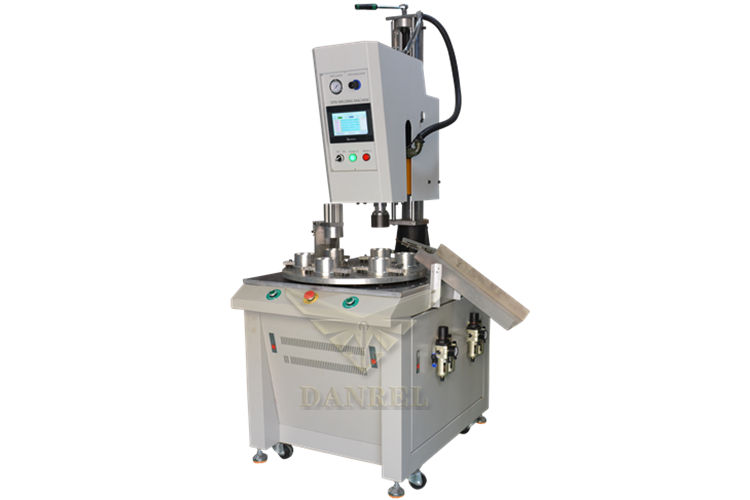

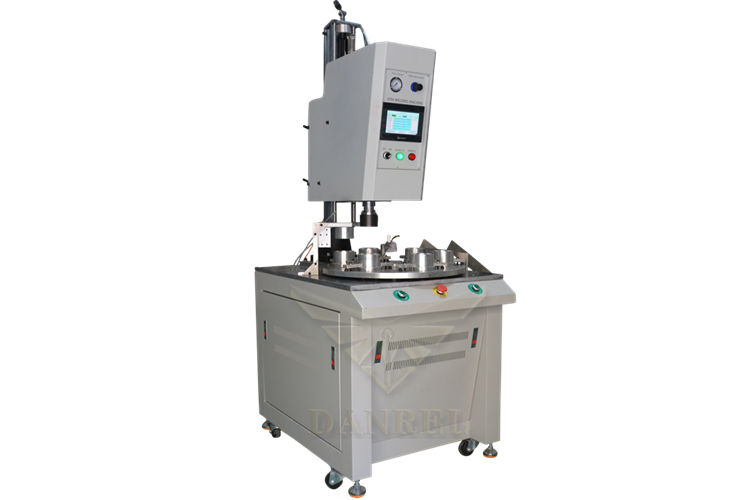

1. Six working stations automatic rotary table for continuous manufacturing.
2. Japan Yaskawa servo-driven spin welding system accurate control and highly consistent results.
3. Compact design for easy installation & operation and low maintenance required.
4. Large color touch screen with intuitive menu structure
5. Programmable welding methods include Weld by Time,Rotations Circles, Rotation Speed, pre-spin orientation;
6. Password protection of setup parameter
7. Up to 150 mm stroke for greater versatility and easier part load and unload
8. Integrated design eliminates cables and makes installation more compact

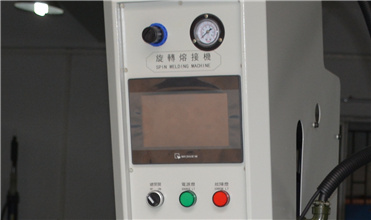

9. PLC touch screen operation., simple operation and parameter setting.
10. New mechanical, electrical and pneumatic designs.
Main Parts Brands:

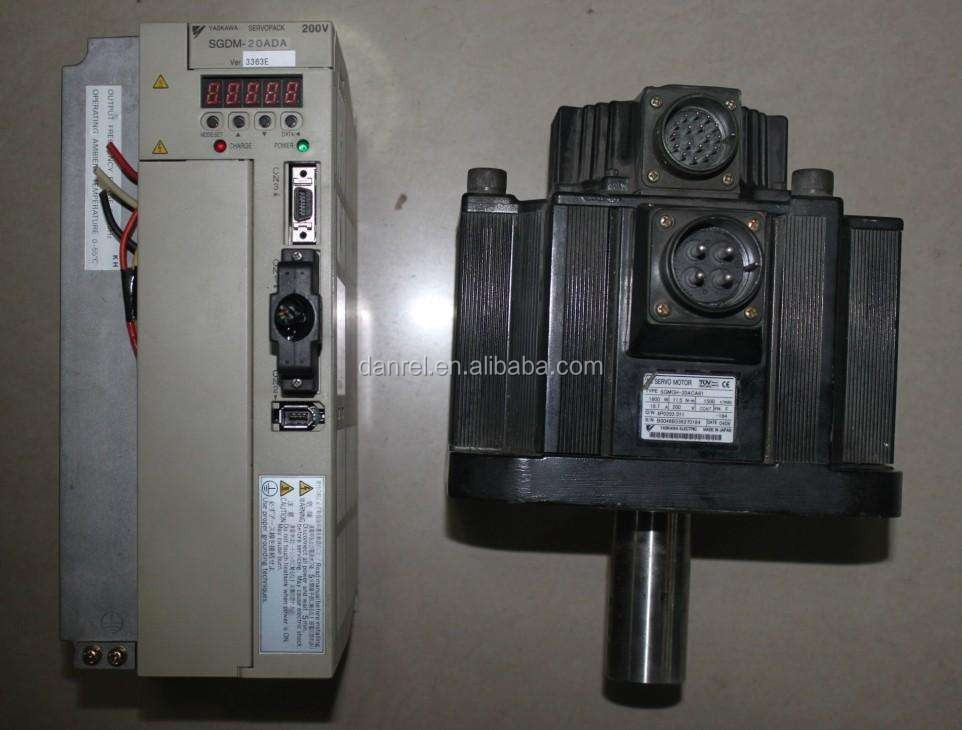

1. Servo Motor: Japan YASKAWA
2. PLC: Japan MITSUBISHI
3. Contactor: French SCHNEIDER

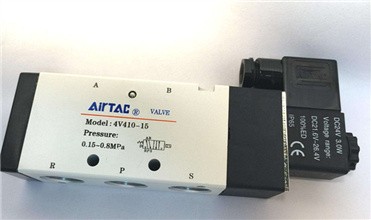

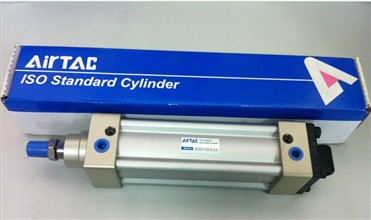

4. Pneumatic: TAIWAN AIRTAC
Spin Welding Process Advantages
Spin welding is a welding technique that uses heat generated by rotational friction at the joint line to weld thermoplastic parts. In this technique, friction is used to heat the parts to be welded. It applies pressure axially as it rotates one part against another stationary part.
(1). Ability to weld parts with circular joint that are not easily welded by ultrasonic.
(2). Relatively fast cycle times when compared with other methods.
(3). Compatible with most thermoplastics.
(4). Ideal for welding of Nylon + GS filled, PP and PE materials.
(5). Ability to weld several dissimilar materials.
(6). No consumables, fumes or emissions.
(7). High strength, hermetic welds are typical.
(8). Heat confined to weld interface.
(9). Easily automated.
(10). Low cost, quick change tooling.
(11). Low maintenance.
(12). Low power consumption.
Model No | DR-SP2040 | DR-SP2050 | DR-SP2060 | DR-HSP2040 |
Servo Power | 2.9KW | 4.4KW | 5.5KW | 2.9KW |
Motor Type | Servo(orientation capable) | |||
Precision | 0.1 Degree | |||
Voltage | AC380V/400V/415V/440V, Three Phase(Customization Offered) | |||
Rotation Speed | 1-3000RPM(Customization Offered) | |||
Rotation Circles | 10-100 | |||
Welding Dia. | 80MM | 120MM | 150MM | 80MM |
Delay Time | 1-120S | |||
Cooling Time | 1-120S | |||
Driven Mode | Air Pressure(Servo Press Optional) | |||
Stroke | 100MM | |||
Working Pressure | 0.5MPa | |||
Weight | 400 KGS | 450 KGS | ||
Dimension | L*W*H=1150*880*2140MM | 1600*900*1460MM |

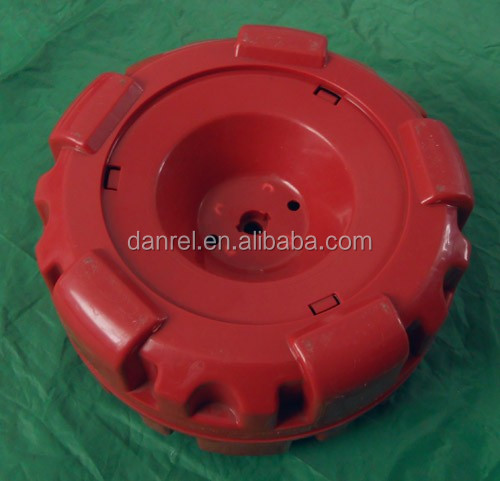

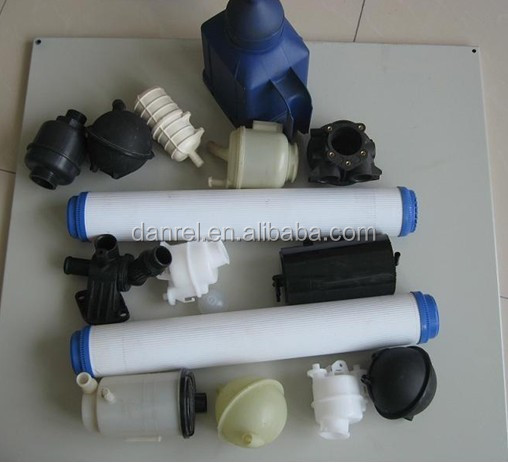

Applications that can benefit from utilizing the spin welding process include

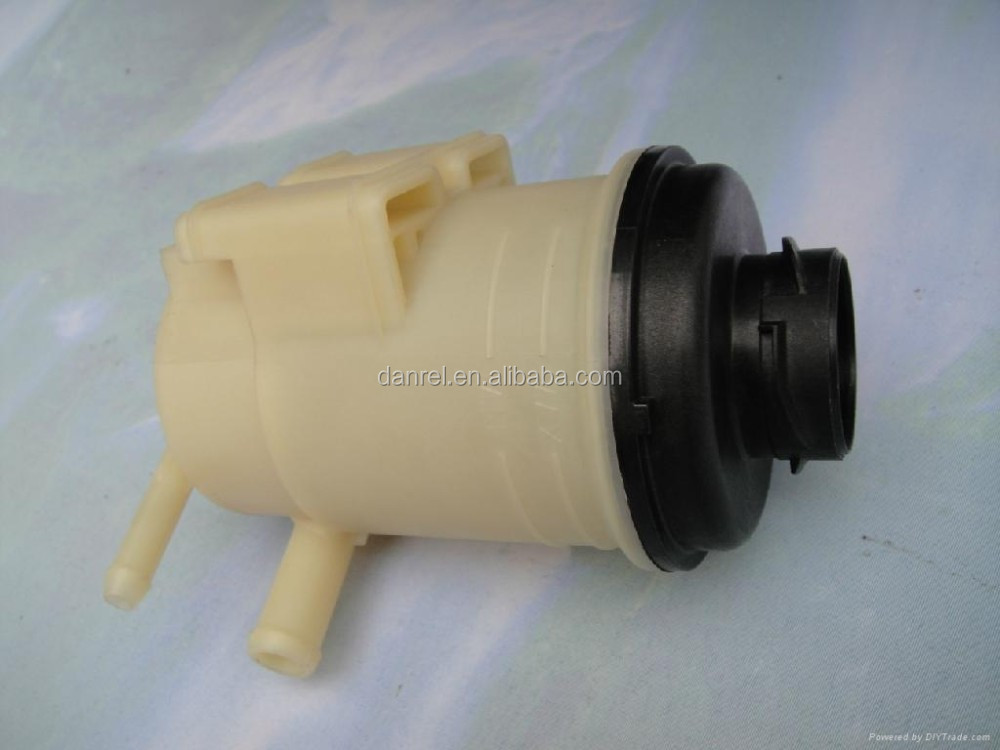

*Automotive: Fuel system filtration, Air duct, Filter bowls, and Oil fill tube components
*Appliance: Water Valves, Refrigeration water Filtration, and Toilet components
*Irrigation system: sprinklers components
*Pool and Spa: filtration components
*Beverage: dispensing, beverage cups

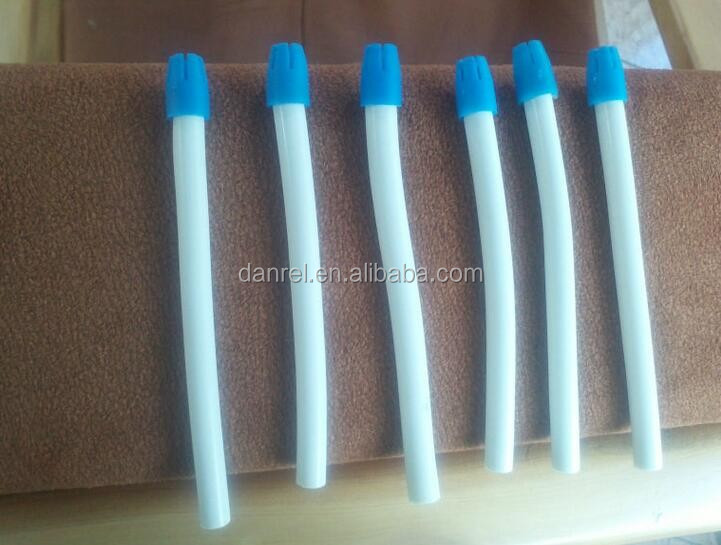

*Medical: syringes
Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. DANREL Spin Welding Machine.
* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier
Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.
Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.
Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
