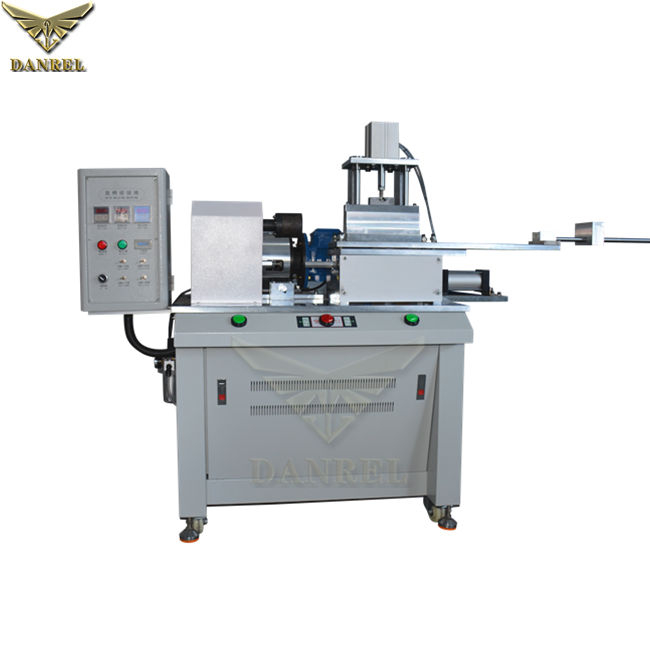

Name: Horizontal Type Servo Motor Spin Welding Machine Rotary Welder for PP PE Pipe, Water Filter Cartridges
Model No.: DR-HSP2040
1. Horizontal design capable of infinite long tube welding purpose.
2. High precision servo spin drive with orientation accuracy of +/-0.1 degree
3. Programmable welding methods include Weld by Time,Rotations Circles, Rotation Speed, pre-spin orientation
4. Password protection of setup parameter
5. Up to 150 mm stroke for greater versatility and easier part load and unload
6. Integrated design eliminates cables and makes installation more compact
7. PLC touch screen operation., simple operation and parameter setting.
8. New mechanical, electrical and pneumatic designs.
Main Parts Brands:
1. Servo Motor: Japan YASKAWA
2. PLC: Japan MITSUSHI
3. Contactor: French SCHNEIDER
4. Pneumatic: TAIWAN AIRTAC
Spin Welding Process Advantages
Spin welding is a welding technique that uses heat generated by rotational friction at the joint line to weld thermoplastic parts. In this technique, friction is used to heat the parts to be welded. It applies pressure axially as it rotates one part against another stationary part.
(1). Ability to weld parts with circular joint that are not easily welded by ultrasonic.
(2). Relatively fast cycle times when compared with other methods.
(3). Compatible with most thermoplastics.
(4). Ideal for welding of Nylon + GS filled, PP and PE materials.
(5). Ability to weld several dissimilar materials.
(6). No consumables, fumes or emissions.
(7). High strength, hermetic welds are typical.
(8). Heat confined to weld interface.
(9). Easily automated.
(10). Low cost, quick change tooling.
(11). Low maintenance.
(12). Low power consumption.
Technical Parameters: Servo Motor Spin Welding Machine
|Servo-Motor Power ||2.9 KW (can be customized according to differet diameter) |
|Power supply ||AC 220/380 V 3P 50 Hz |
|Motor speed ||Max3000 RPM |
|Rotation Circles ||30 (Adjustable) |
|Delay Time ||0-100 seconds (Adjuatable) |
|Hold Time ||0-100 seconds (Adjuatable) |
|Working Pressure ||0.5-0.7 MPa |
|Torsion ||10 N*M |
|Gross Weight ||Around 350 KG |
|Dimension ||1600*900*1600mm |
Spin welding process include high quality permanent joints, hermetic seals, lower equipment costs, ease of assembly, energy efficient operation, no ventilation required, immediate handling, entrapment of other parts, far-field welding capability and no additional material requirements.
* Application of Servo Motor Spin Welding Machine
The most efficient method of joining circular parts is spin welding (Frictional Rotational process) which provides strong hermetically sealed bond. Including: Water Filter, Wheels, Round Caps, Plastic Cylinders, etc
