DR-SP2040-A
DANREL
Name: Price Servo Motor Spin Welding Machine
Model No.: DR-SP204-A
* Video Link:
https://youtu.be/yEsk0B3OqLg
http://youtu.be/C3zqxXW_Gp0
* Machine Features:
1. Automatic rotary table with 6 working stations.
2. Equipped with Holding Manipulator to unloade Welded Workpiece Automatically.
3. High precision servo spin drive with orientation accuracy of +/- 0.1 degree
4. Programmable welding methods include Weld by Time,Rotations Circles, Rotation Speed, pre-spin orientation
5. Password protection of setup parameter
6. Up to 150 mm stroke for greater versatility and easier part load and unload
7. Integrated design eliminates cables and makes installation more compact
8. PLC touch screen operation., simple opearation and parameter setting.
9. New mechanical, electrical and pneumatic designs.
* Main Parts Brands:
1. Servo Motor: Japan YASKAWA
2. PLC: Japan MITSUSHI
3. Contactor: French SCHNEIDER
4. Pneumatic: TAIWAN AIRTAC
* Advantages
Spin welding process include high quality permanent joints, hermetic seals, lower equipment costs, ease of assembly, energy efficient operation, no ventilation required, immediate handling, entrapment of other parts, far-field welding capability and no additional material requirements.
Technical Parameters: Spin Welding Machine
| Servo-Motor Power | 2.9 KW (can be customized according to differet diameter) |
| Power supply | AC 220/380 V 3P 50 Hz |
| Motor speed | Max1500 RPM |
| Rotation Circles | 30 (Adjustable) |
| Delay Time | 0-100 seconds (Adjuatable) |
| Hold Time | 0-100 seconds (Adjuatable) |
| Working Pressure | 0.5-0.7 MPa |
| Torsion | 10 N*M |
| Gross Weight | Around 350 KG |
| Dimension | 900*700*1900mm |

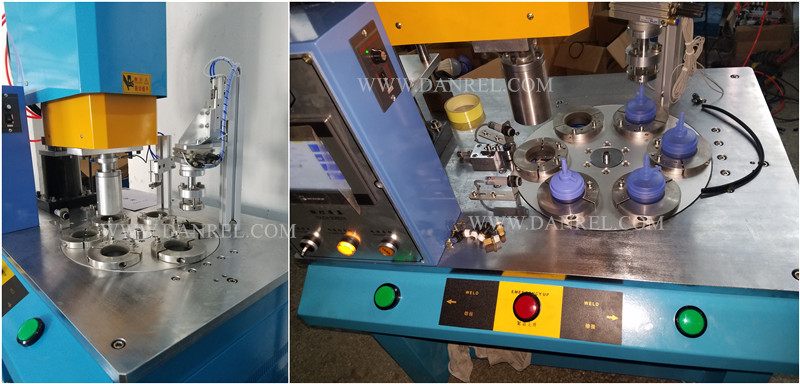

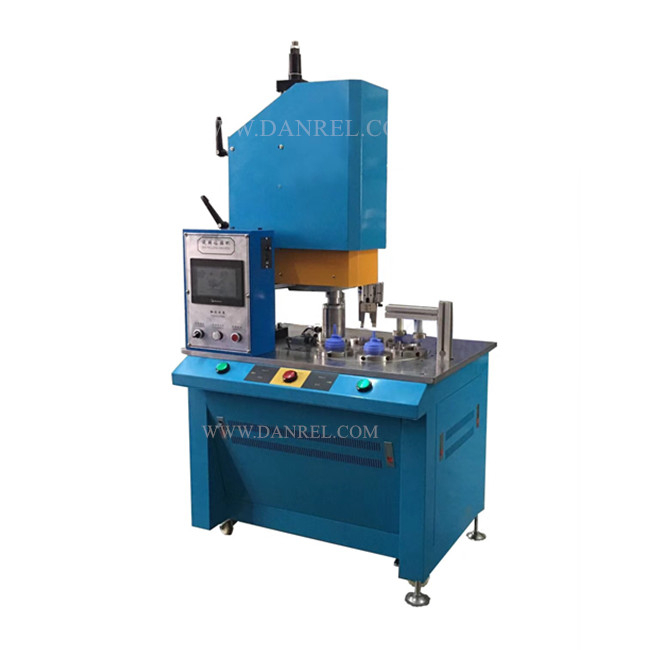

* Application of Rotary Table Automatic Spin Welding Machine for Water Filter Cartridge
The most efficient method of joining circular parts is spin welding (Frictional Rotational process) which provides strong hermetically sealed bond. Including: Water Filter, Wheels, Round Caps, Plastic Cylinders, etc
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and trainning?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compresor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
