Stainless Steel Medical Kraft Paper PETG Tray Sealer Tyvek Blister Sealing Machine

Availability:
Quantity:
  • DR-3560T

  • DANREL

Product Description

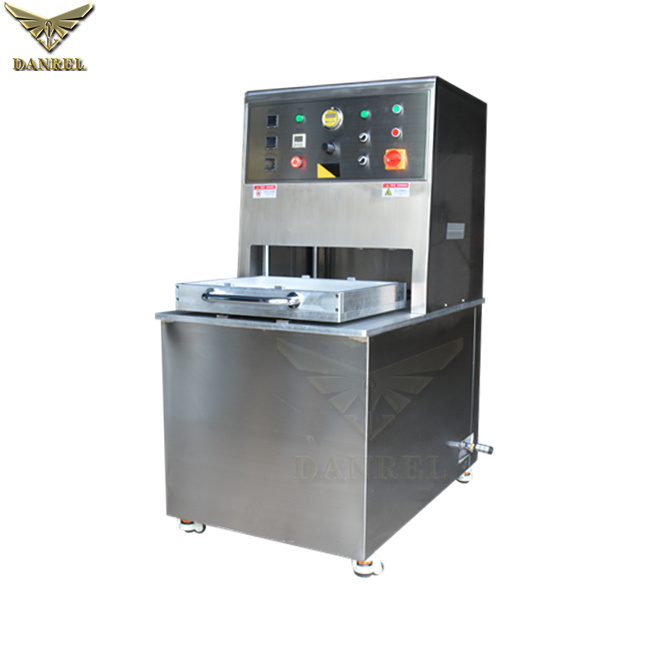

DANREL STAINLESS STEEL THERMAL SEALING MACHINE

DANREL medical/pharmaceutical series of blister packaging machines can be configured to seal all types of lidding material including Tyvek, foils and medical Kraft, our blister sealing machine is able to seal on to PETG or HIPS trays. Developed for high confidence sealing with exact heat seal process control to produce high quality, consistent, sterile barrier heat seals. Your prefilled blister is placed by the operator into the seal jaw. The seal cycle and the preset time, temperature and pressure process parameters are delivered to the package, producting a final heat seal closure.

Main Features:

1. Capable of sealing clamshells up to 300*560 mm, or multiple smaller parts.
2. Entirely made in stainless steel meets cG.M.P. requirement.
3. Stable Temperature Control for outstanding performance.
4. Sealable material includes Tyvek, Foils & Medical Kraft.
5. Suitable for sealing PET G & HIPS trays.
6. Easy size change.
Model No
DR-3560
Power
6000W(customization offered)
Power Vol:
220V±10%, 50/60Hz
Heating Temperature
30 ~ 300 'C.
Heating Plate
350*600MM(customization offered)
Sliding-Table Inner Size
300*560MM(customization offered)
Efficiency
around 6 time/min
Operation Mode:
Pneumatic, 0.5MPa
Machine size
L920 × W680 × H1600MM
Weight
220KGS
Stainless Steel Medical Kraft Paper PETG Tray Sealer Tyvek Blister Sealing Machine

Stainless Steel Medical Kraft Paper PETG Tray Sealer Tyvek Blister Sealing Machine

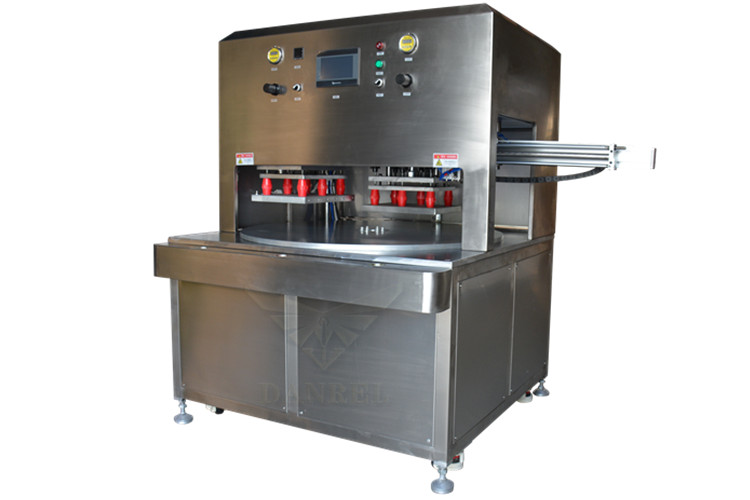

                  Automatic Rotary Table With Robot Arm Option
Stainless Steel Medical Kraft Paper PETG Tray Sealer Tyvek Blister Sealing Machine
Stainless Steel Medical Kraft Paper PETG Tray Sealer Tyvek Blister Sealing Machine
Stainless Steel Medical Kraft Paper PETG Tray Sealer Tyvek Blister Sealing Machine
Certifications
Stainless Steel Medical Kraft Paper PETG Tray Sealer Tyvek Blister Sealing Machine
Stainless Steel Medical Kraft Paper PETG Tray Sealer Tyvek Blister Sealing Machine
Stainless Steel Medical Kraft Paper PETG Tray Sealer Tyvek Blister Sealing Machine
Our Company
Stainless Steel Medical Kraft Paper PETG Tray Sealer Tyvek Blister Sealing Machine
Stainless Steel Medical Kraft Paper PETG Tray Sealer Tyvek Blister Sealing Machine
Stainless Steel Medical Kraft Paper PETG Tray Sealer Tyvek Blister Sealing Machine
Stainless Steel Medical Kraft Paper PETG Tray Sealer Tyvek Blister Sealing Machine
Stainless Steel Medical Kraft Paper PETG Tray Sealer Tyvek Blister Sealing Machine
Stainless Steel Medical Kraft Paper PETG Tray Sealer Tyvek Blister Sealing Machine

Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery.

* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier

FAQ
Stainless Steel Medical Kraft Paper PETG Tray Sealer Tyvek Blister Sealing Machine

Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .

Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application. Contact SHENZHEN DANREL INDUSTRIAL CO., LTD
