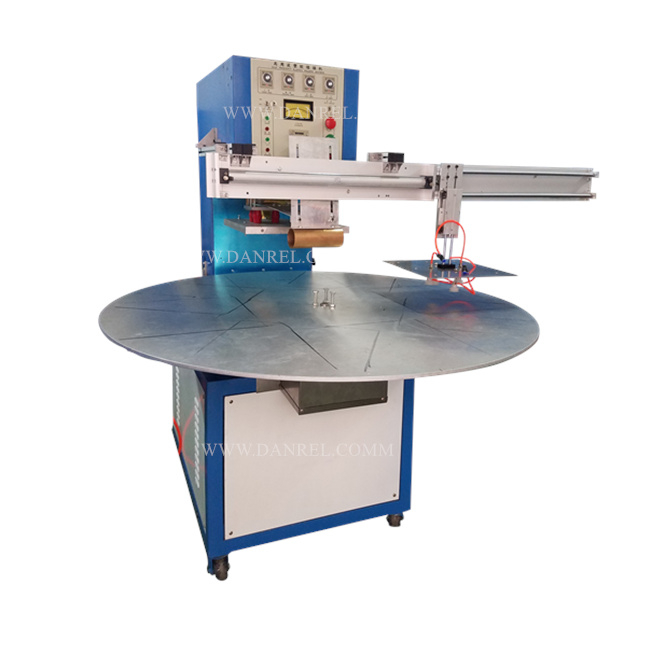

Automatic Rotary Table High Frequency PVC Blister Clamshell Sealing Machine
Model No.: DR-T5KW-4S
A Brief Introduction:
High Frequency Welding Machine (HF Welding) also known as Radio frequency welding machine (RF Welding Machine), which can be applied to a various material including PVC, PET, EVA, TPU, etc. High Frequency Welding Machine is ideal for blister packing, especially for double sided blister clamshells of PVC or PET material. Paper cards can be used for high frequency sealing. High Frequency Welding Machine can seal the edge of the blister clamshells and cut the extra.
High Frequeny Sealing is fast, usually less than 5 seconds, and the sealed blisters are nice-looking.

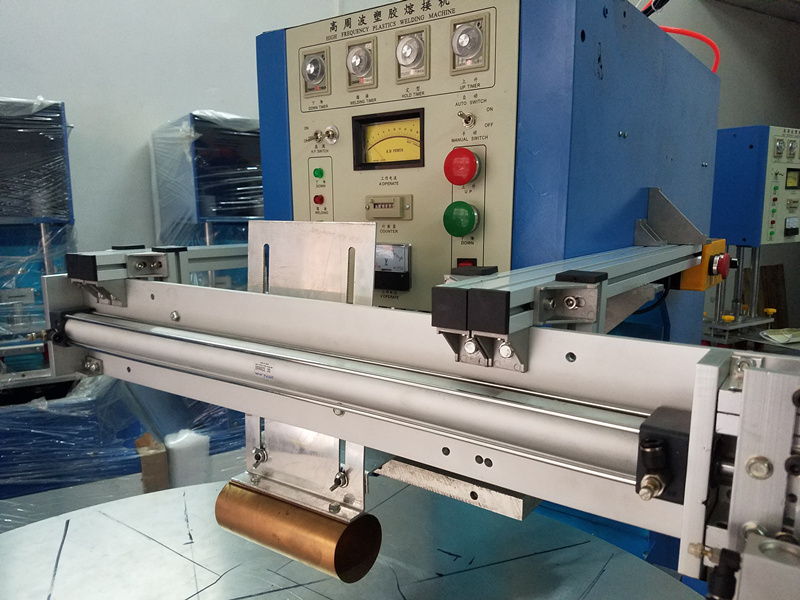

1. Rotary turntable with two working stations working alternately, more efficient.
2. High Q value oscillation tube, strong in output.
3. High Sensitive anti-spark tube, to protect the sealing mould.
4. Fast sealing moulds change-over to suit various sealing size requirement.
5. No radiation to human and other electronic device.
6. Famous brands imported components, AirTAC, OMRON, CKC, etc
Technical Parameters: PVC Blister Clamshell Sealing Machine
|Model No ||DR-T5 ||DR-T8 |
|H.P Power ||5KW ||8KW |
|Power input ||8.5KVA ||15KVA |
|Voltage ||AC 110/220/380 V, can be customized |
|Frequency ||27.12 MHz |
|Oscillation Tube ||7T85 ||7T69 |
|Upper Electrode ||200*350 mm ||400*600 mm |
|Lower Electrode ||400*600 mm ||600*800 mm |
|Stroke ||150 mm |
|Timer ||1-10 S |
|Temperature Control ||0-400 'C |
|Recitifier ||Silicon Diode |
|Drive Mode ||Pneumatic |
|Dimension ||1000*950*1780 mm ||1100*1100*1950 mm |
|Gross Weight ||460 KGS ||650 KGS |
1. PVC + PVC Blister Clamshelll Sealing + Cutting
2. PVC Blister Clamshell + Paper cards Sealing (No cutting)
3. PET Blister Clamshell + Paper Cards Sealing (No cutting)
4. PET + PET Blister clamshell Sealing + Cutting
Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery.
* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and trainning?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compresor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
