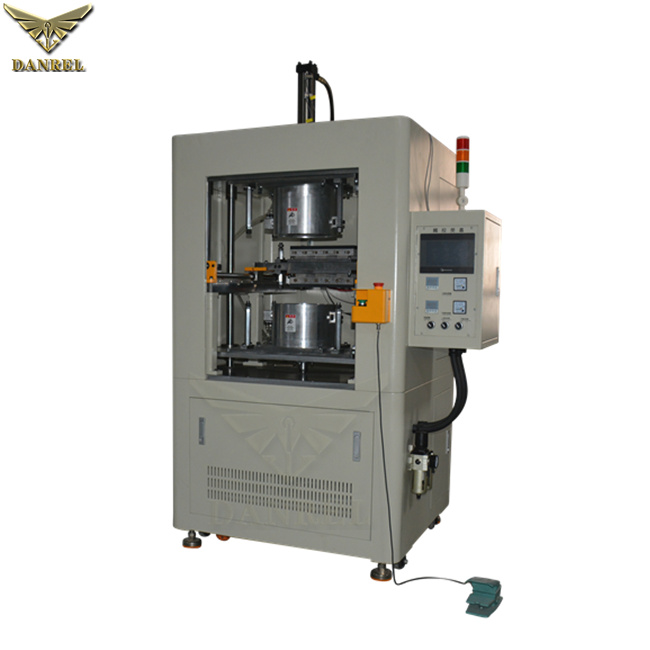

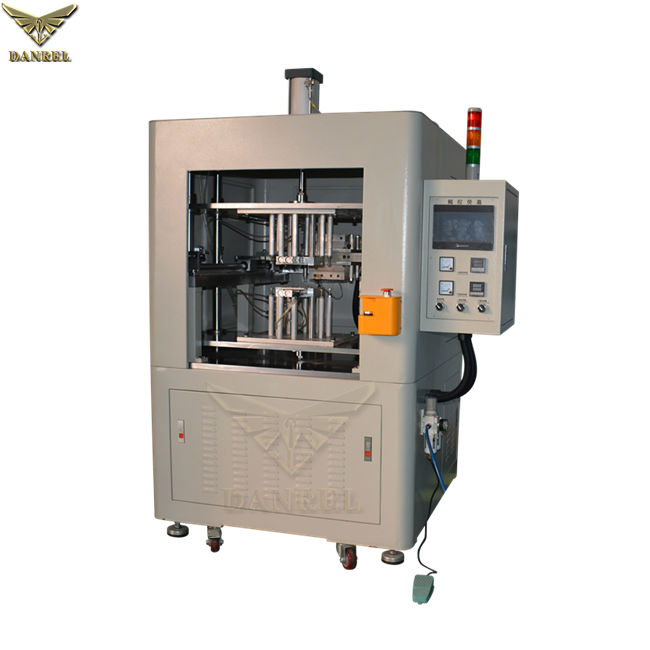

Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE

Availability:
Quantity:
  • DR-HP420

  • DANREL

Product Description

DANREL HOT PLATE WELDING MACHINE

What is Hot Plate Welding?
The process of hot plate welding uses a heated platen to melt the joining surfaces of the two halves of a thermoplastic part. The
part halves are brought into contact with a precisely heated platen for a predetermined period. After the plastic interfaces have
melted, the parts are brought together to form a molecular, permanent, and often hermetic bond. A properly designed joint welded
under precise process control often equals or exceeds the strength of any other part area.

Main Features;
1. PLC/HMI easy operation touch screen , English Interface.
2. The whole set machine CNC parts processing and assembly, precision welding requirement.
3. Hydraulic driven mode to achieve strong welding, water tight and air tight
4. Main parts adopts imported brand, Airtac pneumatic parts, Mitsubishi PLC, etc
5. Precise PID Temperature control. Error of +/-0.5 degrees.
6. Secure protection device optional, safety operation.
7. Fast welding jigs change-over, save labor working time
8. Wide application range, meet with CE requirement

Hot Plate Welder Key Parameters;
* Temperature.
* Melt Time (parts against heated platen)
* Transition (aka: ‘Open’) Time between Melt and Weld/Seal Steps.
* Weld/Seal Time (parts clamped together).
* Melt Depth (controlled by stops).
* Weld/Seal Depth (controlled by stops).
* Melt Force.
* Weld/Seal Force.
Model No
DR-HP420
DR-HP640
DR-HP550
Power
4KW
6KW
4KW
Voltage
Voltage: AC 380V 3P, 50/60Hz(customization offered)
Hot Plate Size
350x300MM
400x350MM
225x225MM
Mold Plate Size
515x350MM
555x350MM
260x240MM
Driven Mode
Pneumatic or Hydraulic
Hydraulic
Hydraulic
Max Pressure
1000 KGS
3000 KGS
3000 KGS
Working Pressure
0.5MPa
0.5MPa
0.5MPa
Stroke
150MM
250MM
150MM
Heating Temperature
UP to 400'C
Weight
650KGS
1200KGS
1100KGS
Dimension
1300*1250*1750MM
1450*1300*2000MM
1700*1300*1650MM

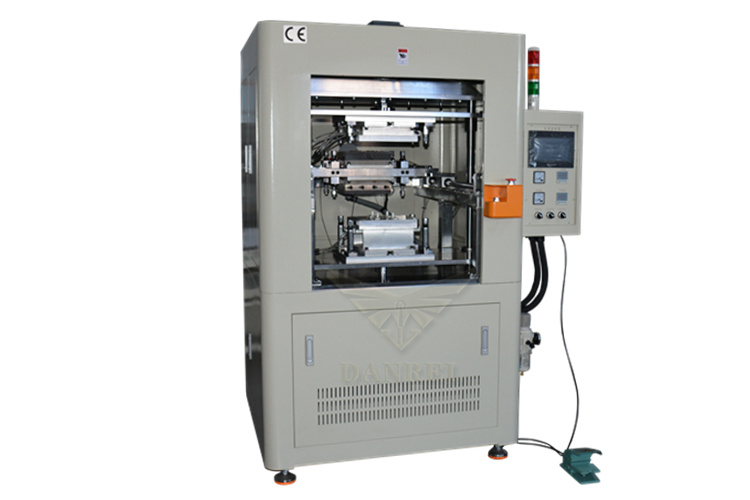

Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE

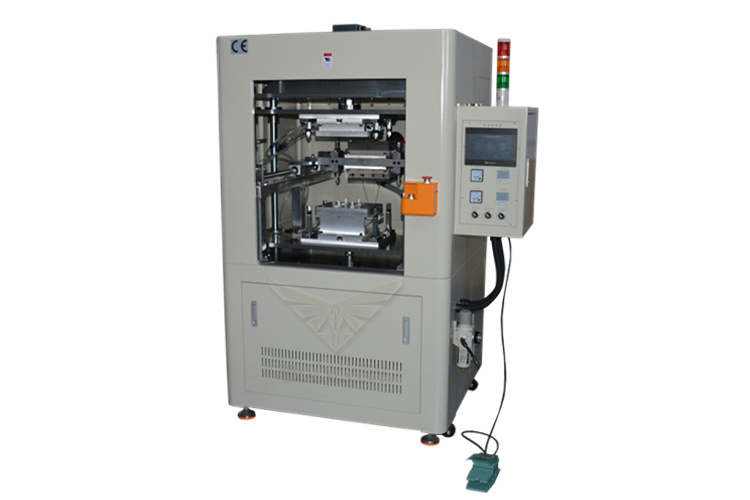

Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE

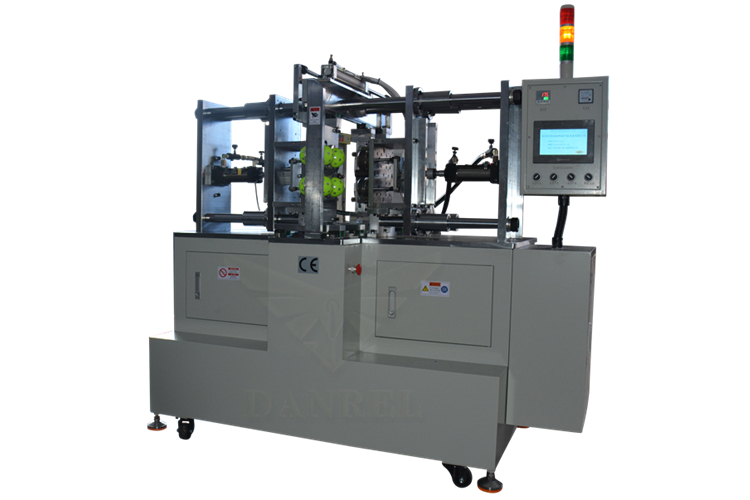

Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE
Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE
Hot Plate Welding Process
Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE
Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE
PLC Touch Screen Operation
Brand: Japan Mitsubishi

Original: JAPAN

Language: English.Main Settings: Time, Clamp, UP & Down
Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE
Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE


PID Temperature Controller

1. Digital display.
2. Fast temperature setting capable.
3.  ±1‘C high precision temperature control.



Hydraulic Press Station

(Optional Device for DR-HP420)

1. Hydraulic driven.

2.  Max Pressure is 3000 KGS.
Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE
Welding Samples
Hot Plate Plastic Welder is widely used in the thermoplastic welding, mainly including RO Water Tanks, Rear light, Tail Light, Parking Sensor, Bumper Assy, Truck Water Tank, Air Spring, Auto Expansion Tank, fuel pump, Fuel Tank, Car Fender Liner, Car Radiator Tank, Water Reservoir, Car Body Panel, Coolant Tank, Radiator Expansion Tank, Coolant Reservoir, Auto Plastic Expansion Tank, Water Coolant Tank, Fuel Filter, Lithium battery, Solar Water Heater Tank, Steam Iron, SRS System,Dashboard, Car & Truck Glove Box, Brake Oil Cup, Spray Bottle, Balance Ring, Wiffle balls, Pipes, many more.
Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE
Certifications
Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE
Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE
Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE
Our Company
Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE
Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE
Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE
Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE
Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE
Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE

Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. DANREL Hot Plate Welding Machine.

* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier

FAQ
Strong Weld and Hermetic Seal Heated Tool Plastic Welder Small Hot Plate Welding Machine for PP, PE

Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .

Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application. Contact SHENZHEN DANREL INDUSTRIAL CO., LTD
