DR-HP660
DANREL

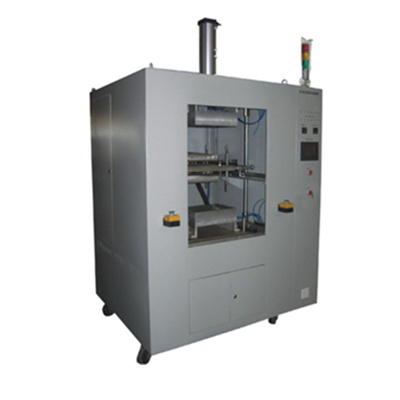

Name: Plastic PP Auto Expansion Tank Hot Plate Welding Machine
Model No.: DR-HP660
Machine Features:
1. PLC Control, more convenient operation. English Interface touch screen.
2. The whole set machine CNC parts processing and assembly, precision welding requirement.
3. Hydraulic drive mode to achieve strong welding, water tight and air tight
4. Main parts adopts imported brand, Airtac pneumatic parts, Mitsubishi PLC, etc
5. Precise PID Temperature control. Error of +/-0.5 degrees.
6. Secure protection device optional, saftey operation
Advantages of Hot Plate Plastic Welding Machine
1. Suitable for ABS, PP, PE, PS, PC, etc, all kinds of thermoplastic materail welding.
2. Suitable for Irregular and big size products welding, Water-tight and Air-tight
Technical Parameters: Hot Plate Welding Machine
Model No | DR-HP660 |
Hea Power | 8 KW (Customized according to particulr products) |
Voltage | AC 380 V 3P 50 Hz (Can be Customized) |
Operation Mode | PLC/MHI, Foot Pedal Switch |
Max hot plate size | Max 600*600 mm |
Driven mode | Hydraulic |
Working Pressure | 0.5-0.7 Mpa |
Max Pressure | 1000-5000 KG Adjustable |
Heating Time | 1-100 S (Adjustable) |
Welding Time | 1-100 S (Adjustable) |
Temperature range | 0-400 ' C of PID(Adjustable) |
Gross weight | 1600 KG |
Dimension | 1850*1600*2400 mm |

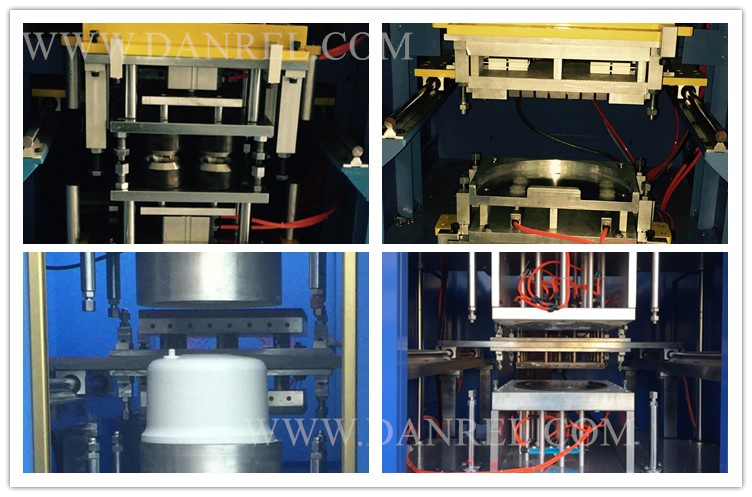

Welding Jigs of Hot Plate Welding Machine
Application range of hot Plate Welding Machine
tail light, parking sensor, bumper assy, car water tank, truck water tank, air spring, Auto Expansion Tank, fuel pump, fuel tank, Car Fender Liner, Car Radiator Tank, Water Reservior, car body panel, Radiator Expansion Tank, Water Coolant Tank, RO water storage tank, Perforated ball, plastic toilet seat, etc
Buying Notice:
Please kindly inform us the following information to get a quotation
(1) What is the products?
(2) Material?
(3) Size
(4) 3D Drawing
We can also help for the welding joint design when injection moulding
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and trainning?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compresor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
Name: Plastic PP Auto Expansion Tank Hot Plate Welding Machine
Model No.: DR-HP660
Machine Features:
1. PLC Control, more convenient operation. English Interface touch screen.
2. The whole set machine CNC parts processing and assembly, precision welding requirement.
3. Hydraulic drive mode to achieve strong welding, water tight and air tight
4. Main parts adopts imported brand, Airtac pneumatic parts, Mitsubishi PLC, etc
5. Precise PID Temperature control. Error of +/-0.5 degrees.
6. Secure protection device optional, saftey operation
Advantages of Hot Plate Plastic Welding Machine
1. Suitable for ABS, PP, PE, PS, PC, etc, all kinds of thermoplastic materail welding.
2. Suitable for Irregular and big size products welding, Water-tight and Air-tight
Technical Parameters: Hot Plate Welding Machine
Model No | DR-HP660 |
Hea Power | 8 KW (Customized according to particulr products) |
Voltage | AC 380 V 3P 50 Hz (Can be Customized) |
Operation Mode | PLC/MHI, Foot Pedal Switch |
Max hot plate size | Max 600*600 mm |
Driven mode | Hydraulic |
Working Pressure | 0.5-0.7 Mpa |
Max Pressure | 1000-5000 KG Adjustable |
Heating Time | 1-100 S (Adjustable) |
Welding Time | 1-100 S (Adjustable) |
Temperature range | 0-400 ' C of PID(Adjustable) |
Gross weight | 1600 KG |
Dimension | 1850*1600*2400 mm |
Welding Jigs of Hot Plate Welding Machine
Application range of hot Plate Welding Machine
tail light, parking sensor, bumper assy, car water tank, truck water tank, air spring, Auto Expansion Tank, fuel pump, fuel tank, Car Fender Liner, Car Radiator Tank, Water Reservior, car body panel, Radiator Expansion Tank, Water Coolant Tank, RO water storage tank, Perforated ball, plastic toilet seat, etc
Buying Notice:
Please kindly inform us the following information to get a quotation
(1) What is the products?
(2) Material?
(3) Size
(4) 3D Drawing
We can also help for the welding joint design when injection moulding
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and trainning?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compresor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
