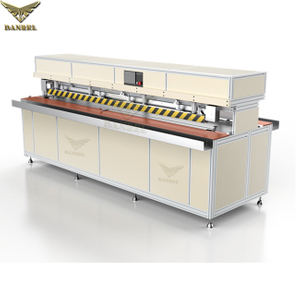

DR-MCT3/MCT4/MCT5/MCT6
DANREL

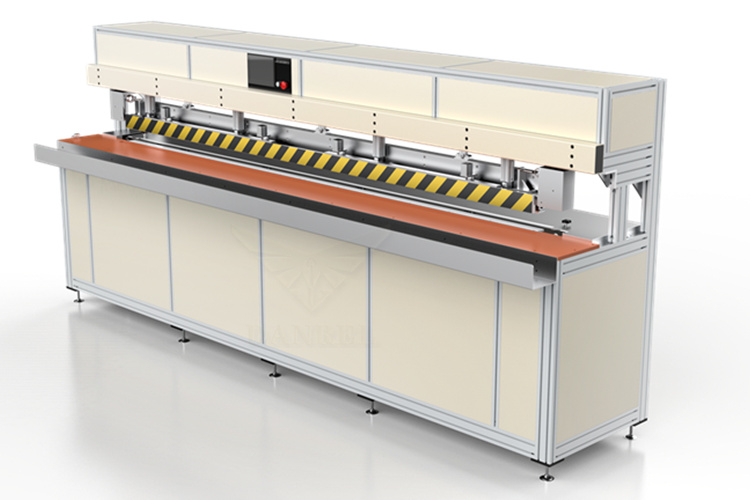

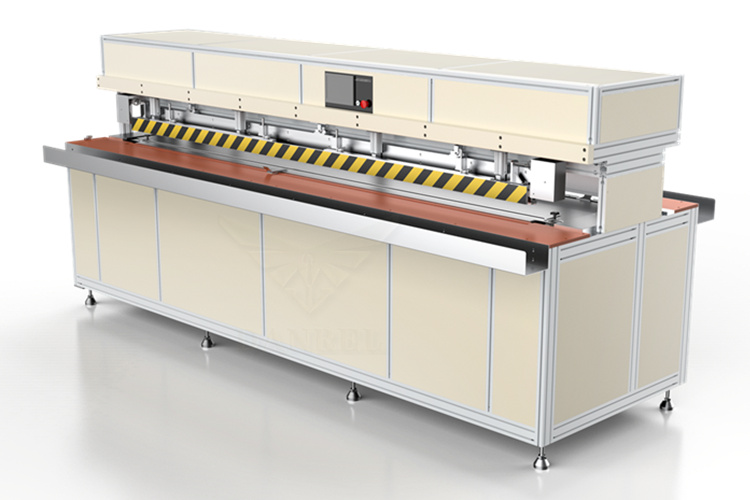

Impulse welding is a hot-bar method of welding thermoplastics. In an impulse welding machine, pressure is applied to the seam area by two impulse-heating bars. Heat is created by pulsing energy through the heating element in the top and bottom bars for the duration of the weld. After a set weld time is completed, there is a slight cool down cycle, helping eliminate wrinkles. The welding length is up to 6000mm or more.
Main Features:
The BEST and the most advanced thermal impulse sealing machines for welding all kinds of technical textiles with precision controlled welding parameters and automatic functions for FOLDING, OVERLAPING, HEM POCKETS, ZIPPERS, reinforcements and profiles. The multi step sealing control process creates the best looking and strongest seams with ease and simplicity of use and full operator ergonomics.
1. Excellent use with PVC, PE, PU, Acrylics - all thermoplastic fabrics coated, woven and non-woven
2. Standard available weld lengths are 3000MM, 4000MM, 5000MM, 6000MM
3. Welding seam widths: 8, 12mm.

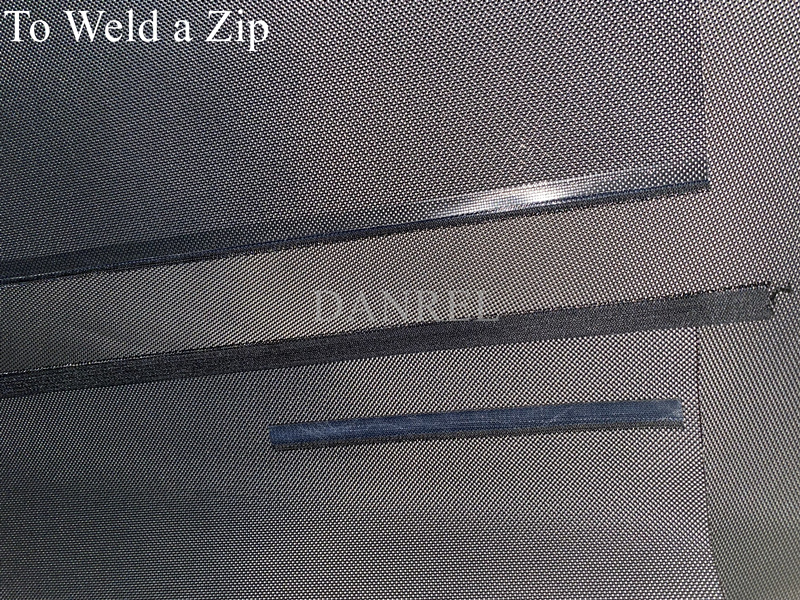

4. Automatic folding, welding, overlap joining, Zips, PVC profiles and reinforcements, stick/slat insertion
5. Compact designed, opened design machine for better visibility of work space
6. Linear servo-drives for precision and repeatability of seams
7. Multilanguage touch screen HMI operation.
8. Multipoint precision PLC temperature control (± 3°C).
9. PLC controlled heating and cooling cycles for consistent welds.

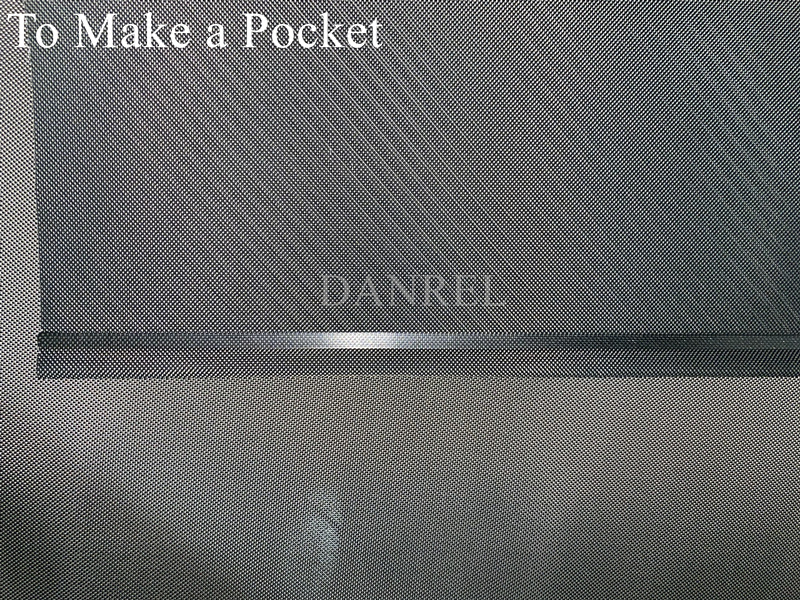

10. Automatic welding pockets and hems.
11. Capable of creating virtually invisible seams.
12. Universal use for seams required by the sign, awning, pergola and blind makers.
13. Optional use of hotmelt tape for bonding non-welding fabrics.
14. Advanced safety features with pressure switch and optical sensors.
Model No | DR-MCT3 | DR-MCT4 | DR-MCT5 | DR-MCT6 |
Power | 4KW | 6KW | 8KW | 10KW |
Voltage | AC220/380/415/440/480V,3P(customization offered) | |||
Welding Length | Max. 3000MM | Max. 4000MM | Max. 5000MM | Max. 6000MM |
Welding Bar Size | 8/12MM | |||
Drive Mode | Pneumatic | |||
Working Pressure | 0.5-0.7MPa | |||
Dimension(L*W*H) | 3660*1180*1750MM | 4660*1180*1750MM | 5660*1180*1750MM | 6660*1180*1750MM |
Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. DANREL Impulse Welding Machine.
* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier
Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.
Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.
Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
