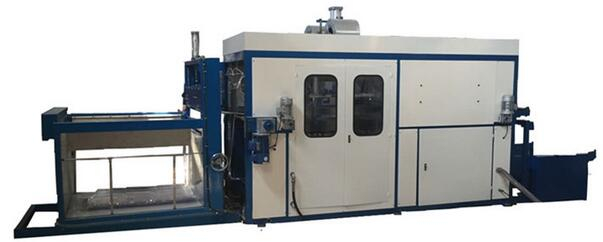

Large Scale Automatic Plastic Vacuum Forming Machine

  • DR-71H-L


  • Guangdong, China

  • set

  • 15 sets per month

  • 1 set

  • 30 working days after samples received

  • 1

  • T/T

1. PLC Touch Screen Centralized Temperature Control, fast heating, greatly improved the efficiency. For
example, it takes only 9 seconds for 0.35 mm thickness.
2. 15-20 % energy saving compared with solid state controller or PID controller.
3. The sheet moving by Mitsubishi VFD and Servo Motor, its speed can be adjustable and high precision.
4. Suitable for PET material, the furnace breadthwise moving automatically by motor or penumatic cylinder.
5. High Speed, fully automatic. Load the plastic roller onto the frame, then forming, cooling, demouling
, transporting, cutting can be done automatically.
6. PLC Touch Screen, easy parameter setting and simple operation
7. Mould plate can be adjusted so can be placed different size of mould for different size forming requirment.
8. Forming Area (Length & Width) controller by servo motor.
9. Water Cooling System with 10 pcs sprayers of Japan Meiji Brand.
10. Fault self checking function

Customers should prepare:
1. 15 KW 20 HP Pistion Type Air Compressor (Helical Lobe Type Air compressor is recommended in terms of
protecting solenoidvalve and more environmental-friendly)
2. Air Storage Tank to guarantee air supply.

Main Parts Brand and Specification
PLC: Japan Mitsubishi, 60 points,
Touch Screen: TAIWAN WEVIEW, 3.5 "
Vacuum Pump: Germany BUSUCH RA0160, 160m3/Hour
Solenoidvalve: UK NORGREN
Oil & Water Sepeartor: UK NORGERN
Water Sprayer: Japan Meiji, 10 pcs
Variable Frequency Drive (VFD): Japan Mitsubishi, 2.2 KW
AC Contactor: French Schneider
Cold Water Machine/Chiller: HONG KONG NITSU, 4HP

Power Consumption: around 24 KW
Power supply: AC 380 V 3P (customized)
Forming Width: 450-710 mm (adjustable)
Forming Length: 560-1220 mm (adjustable)
Base Stroke: 350 mm
Sutiable Material Thickness: 0.2-2 mm
Sutiable Material: PVC, PET, PP, PS, PC, etc
Working efficiecy: 300-480 times per hour
Vacuum Pump Capacity: 100 L/Hour
Operation: PLC/Touch Screen
Temperature Control: PID control
Cooling: Cooling Water+Wind (Blower power: 0.75 KW*2)
Forming Part-L3520*W1300*H2600 mm
Material Loading Part-L1300*W1100*H1000 mm
Material Receiving Part-L2000*W1300*H1900 mm
Gross weight: 3000 KG
