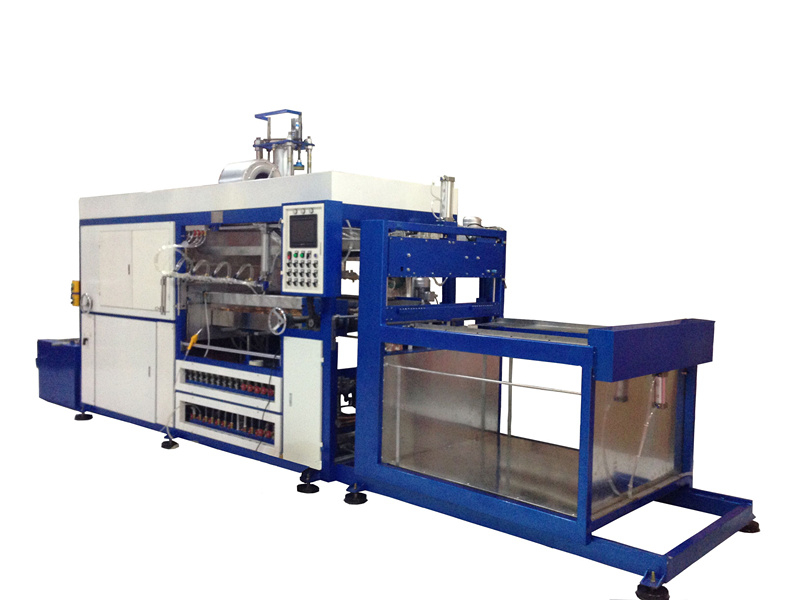

Automatic Blister Packing Industry Vacuum Forming Machine

Quantity:
  • DR-71H-S
  • 1600*720*1800mm
  • DANREL
  • 30 sets per month
  • China or Hong Kong
  • Plywood case
  • set
  • 30 sets per month
  • 1
  • 15-20 working days after order confirmed
  • 1
  • T/T
Feature/Advanges
1. Suitable for PET material, the furnace breadthwise moving automatically by motor or penumatic cylinder.
2. High Speed, fully automatic. Load the plastic roller onto the frame, forming, cooling, demouling , transporting,
cutting can be done automatically.
3. PLC Touch Screen, easy parameter setting and simple operation
4. Mould plate can be adjusted so can be placed different size of mould for different size forming requirment.
5. Forming Area (Length & Width) controller by servo motor.
6. The sheet moving by Mitsubishi VFD and Servo Motor, its speed can be adjustable and high precision.
7. Water Cooling System with 10 pcs sprayers of Japan Meiji Brand.
8. PID temperature Control
9. Fault self checking function

Main Parts Brand and Specification
PLC: Japan Mitsubishi, 60 points,
Touch Screen: TAIWAN WEVIEW, 3.5 "
Vacuum Pump: Germany BUSUCH RA0100, 100m3/H
Air Cylinder: TAIWAN AIRTAC
Solenoidvalve: TAIWAN AIRTAC
Water Sprayer: Japan Meiji, 10 pcs
Variable Frequency Drive (VFD): Japan Mitsubishi, 2.2 KW
AC Contactor: French Schneider
Cold Water Machine/Chiller: DANREL, 4HP
Customers should prepare:
1. 15 KW 20 HP Pistion Type Air Compressor (Helical Lobe Type Air compressor is recommended in terms of
protecting solenoidvalve and more environmental-friendly)
2. Air Storage Tank to guarantee air supply.
Power Consumption: around 24 KW
Power supply: AC 380 V 3P (customized)
Forming Width: 450-710 mm (adjustable)
Forming Length: 560-1220 mm (adjustable)
Base Stroke: 350 mm
Sutiable Material Thickness: 0.2-2 mm
Sutiable Material: PVC, PET, PP, PS, PC, etc
Working efficiecy: 220-360 times per hour
Vacuum Pump Capacity: 100 L/Hour
Operation: PLC/Touch Screen
Temperature Control: PID control
Cooling: Cooling Water+Wind (Blower power: 0.75 KW*2)
Dimension:
Forming Part-L3520*W1300*H2600 mm
Material Loading Part-L1300*W1100*H1000 mm
Material Receiving Part-L2000*W1300*H1900 mm
Gross weight: 3000 KG
