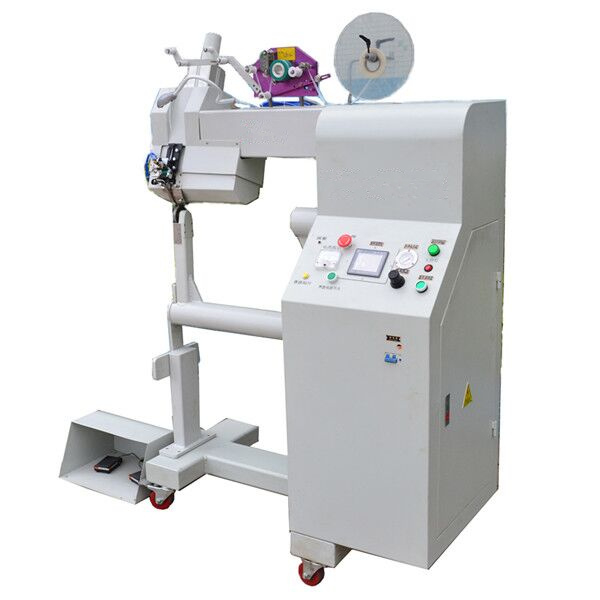

US3510 Ultrasonic Seam Welding Machine for Neoprene Fabric
Description of the machine
1. PLC/HMI digitally control all welding parameters, English Interface touch screen
2. Ultrasonic Seam welding method, strong seam amd nice looking.
3. Suitable for wide range material seam sealing.
4. Quick, convenient and precision seam sealing adjustments for multiple seam configurations.
5. High Quality Imported components, Japan Mitsubishi PLC, OMRON electronics, AIRTAC Pneumatic Parts, etc
US3510 Ultrasonic Seam Welding Machine for Neoprene Fabric
Description of the machine
1. PLC/HMI digitally control all welding parameters, English Interface touch screen
2. Ultrasonic Seam welding method, strong seam amd nice looking.
3. Suitable for wide range material seam sealing.
4. Quick, convenient and precision seam sealing adjustments for multiple seam configurations.
5. High Quality Imported components, Japan Mitsubishi PLC, OMRON electronics, AIRTAC Pneumatic Parts, etc
| Power | 1000 W |
| Frequency | 35 KHz |
| Amplitude | Less than 28 μm |
| Voltage | AC 220 V 50/60 Hz |
| Rated Current | 15 A |
| Speed | 1-10 m/min |
| Air Consumption | <0.2 m3/min |
| Working Pressure | 3-4 KG/cm² |
| Upper Roller Pressure | 0.5-4.5 KG/cm² |
| Upper roller lift | 15-25 mm |
| Gross weight | 360 KG |
| Packing Dimension | 1300*740*1700 mm |
| Power | 1000 W |
| Frequency | 35 KHz |
| Amplitude | Less than 28 μm |
| Voltage | AC 220 V 50/60 Hz |
| Rated Current | 15 A |
| Speed | 1-10 m/min |
| Air Consumption | <0.2 m3/min |
| Working Pressure | 3-4 KG/cm² |
| Upper Roller Pressure | 0.5-4.5 KG/cm² |
| Upper roller lift | 15-25 mm |
| Gross weight | 360 KG |
| Packing Dimension | 1300*740*1700 mm |
