DR-SALG40
DANREL

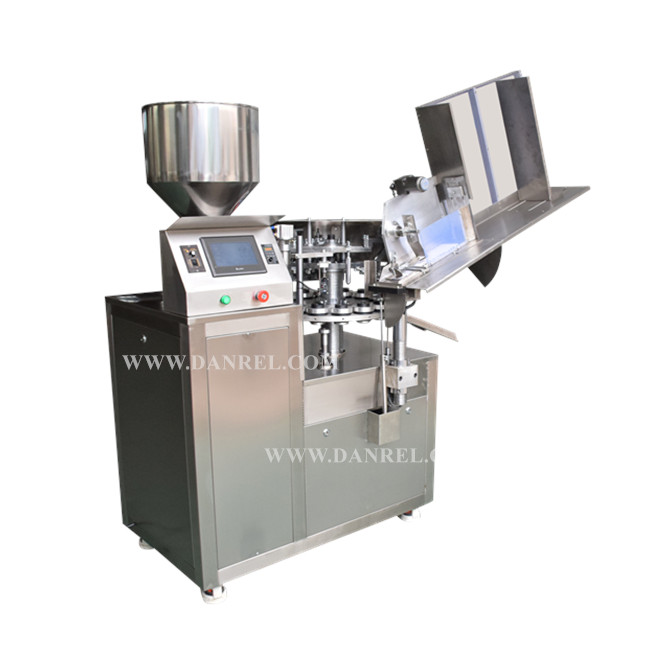

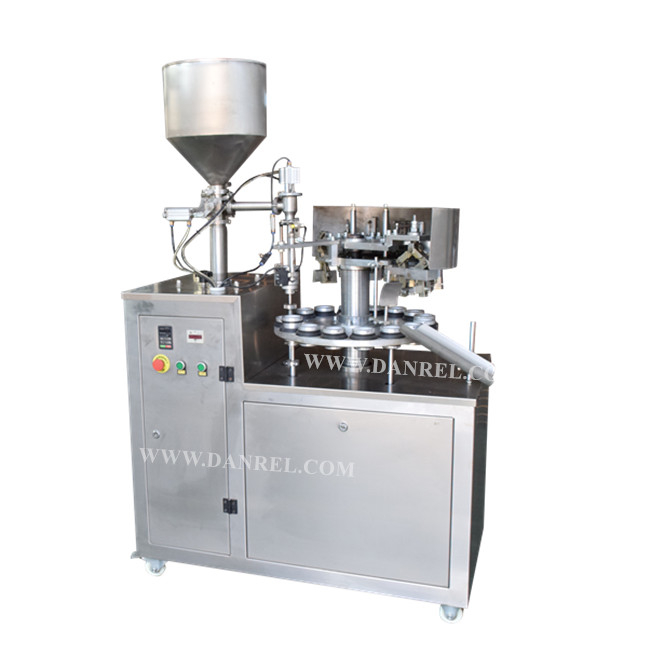

Item: Semi-Automatic Aluminum Tube Filling And Sealing Machine
Model No: DR-SALG40
http://youtu.be/xDiJpo3sVoISemi-automatic aluminum tube filling and sealing machine is suitable for metal tubes . It can do automatic color mark position, filling, folding, batch coding and finished products exit in one machine.
Equipped with a auto rotary table with 16 working stations, the operator manually put the aluminum tube into the tube holders. The machine then will automatically Mark Searching, Filling, Folding. It fills when there is a tube detected. No tube no filling, to avoid wrong filling. The filling is driven by air cylinder, and the filling capacity and accuracy is controlled by cylinder route.
-Stainless steel body, neat and beautiful
Technical Data:
Model No. | DR-SALG40 |
Motor Power | 0.75~1.1 KW |
Power Supply | AC 220 V, 50/60Hz |
Filling Volume | A: 5-150 ml; B: 150-250 ml |
Efficiency | 12-35 tubes per min |
Tube Length Range | 50-250 mm (as request) |
Tube Diamater Range | 12-50 mm (as request) |
Working Station | 16 Tube Holders |
Drive mode | Pneumatic |
Working Pressure | 0.5-0.7 MPa |
Tube Material | Metal Tubes |
Filling presision | <1% |
Weight | 300 KG |
Dimenson | L*W*H 1000mm×600mm×1700mm |
Description of the Machine
Make the filling more accurate and keep the machine clean.
16 working stations for filling, folding. High Speed.
To Store Tubes and automatically insert the tubs into the worktable, save labour.
Three foldings, four foldings can be achieved as per request.
Application
This machine is to fill ointment material into metal tube with qnantitive volume and fold the tube end. It is widely used for pharmaceutical, cosmetic, foods, and chemical industry. for example: Ointment, gooey, AB Glue, epoxy glue , skin oil, hair dye, shoeshine, toothpaste, etc.
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and trainning?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compresor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
