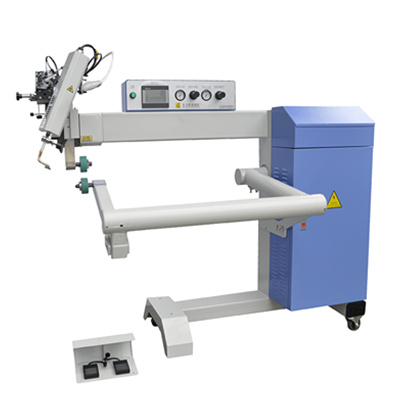

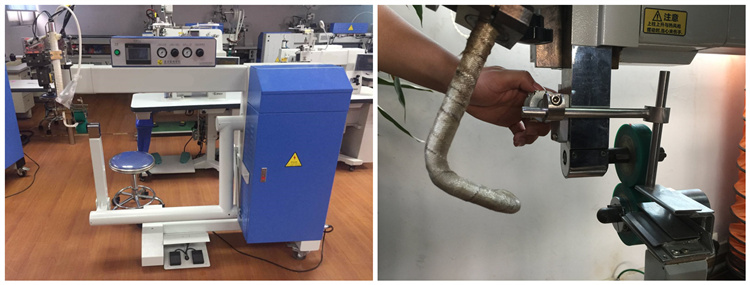

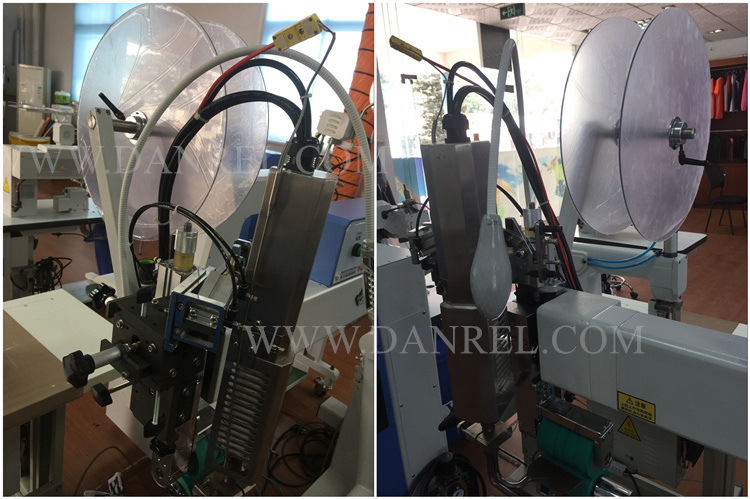

Name: PVC HOT AIR BANNER WELDER
Model No.: DR-V13
Machine Features: HOT AIR BANNER WELDERS
1. PLC/HMI easy operation touch screen , English Interface.
2. Precise Temperature control, heating temperature up to 750 ' C
3. Suitable for wide range material seam sealing.
4. Quick, repeatable head adjustments for precision welding
5. Quick, easy guide change for multiple seam configurations, overlap, hem, hem with cord, butt seal with tape, etc
6. Available in hot wedge, hot air or equipped with both for optimal product production.
7. High Quality Imported components, Japan Mitsubishi PLC, OMRON, AIRTAC Pneumatic Parts, etc
8. Arm length can be customized, 800 mm (standard), 1300 mm, 1500 mm, 2000mm, etc
9. Machine can be customized according to your products, to achieve more convenient operation
Principle: Hot Air PVC Banner Welders
Hot air welding machine use very precise heat, speed and pressure to bond industrial fabrics. The correct combination of these three parameters will allow you to achieve a complete weld. During the hot air welding process, heat is provided by heat elements and is injected at the welding point. The tightly controlled temperature can range from 400C to 750C.
QUALITY & RELIABILITY
* Lean manufacturing principles
* Solid steel frame design
* Designed and built for multiple decade use
* Built for multiple shift production
* Low maintenance for extended up time
* Industry known for longest lasting machines
* First and last machine you will need for welding
Technial Parameters: PVC Hot Air Banner Welders
Model | DR-V13 |
Power supply | AC 220V 50/60Hz |
Heating Power | 1800W |
Rated current | 15 A |
Working Pressure | 0.5-0.7 MPa |
Air Consumption | |
Total pressure | 6kg/ c㎡ |
Upper wheel pressure | 0.5-4.5kg/ c㎡ |
Hot Air Temperature | 0-750℃ (adjustable) |
Activity space for upper wheel | 18-25mm |
Seam Speed | 1-24m/min (adjustable) |
Hot Air Nozzle Width | 10-50 mm (as request) |
Width of Seam Roller | 10-50 mm (can be customized) |
Weight | 340KG |
Dimension | 1970*770*1600mm |

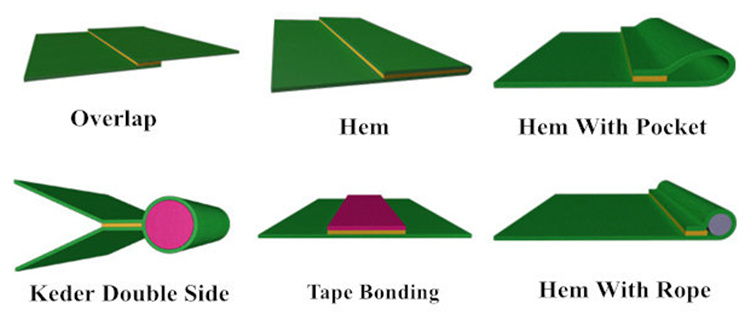

Various Seam Configurations: (PVC Banner Welding Machine)
DR-V13 machine can aslo achieve: overlap welding, hemm, hem with pocket, hem with rope, butt seal with tape.
Please inform us the welding types and size requirement.
Application: PVC Hot Air Banner Welders
Super thermal space to accomodate to super large, inflatable slide, obstacle course, bounce house, banana boats, Zodiac Boats, Rubber Boats, Hovercraft, bumper ball, zorb ball, large inflatable tents, su nshade, sun umbrealla, trcuk covers, swimming pool, Temporary shelters, amusement city, water park, water roller, inflatable cartoon, advertising inflatables, Zodiac, Giant Dome Tents , sport boat, leisure boat, rescue boat
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and trainning?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compresor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
Name: PVC HOT AIR BANNER WELDER
Model No.: DR-V13
Machine Features: HOT AIR BANNER WELDERS
1. PLC/HMI easy operation touch screen , English Interface.
2. Precise Temperature control, heating temperature up to 750 ' C
3. Suitable for wide range material seam sealing.
4. Quick, repeatable head adjustments for precision welding
5. Quick, easy guide change for multiple seam configurations, overlap, hem, hem with cord, butt seal with tape, etc
6. Available in hot wedge, hot air or equipped with both for optimal product production.
7. High Quality Imported components, Japan Mitsubishi PLC, OMRON, AIRTAC Pneumatic Parts, etc
8. Arm length can be customized, 800 mm (standard), 1300 mm, 1500 mm, 2000mm, etc
9. Machine can be customized according to your products, to achieve more convenient operation
Principle: Hot Air PVC Banner Welders
Hot air welding machine use very precise heat, speed and pressure to bond industrial fabrics. The correct combination of these three parameters will allow you to achieve a complete weld. During the hot air welding process, heat is provided by heat elements and is injected at the welding point. The tightly controlled temperature can range from 400C to 750C.
QUALITY & RELIABILITY
* Lean manufacturing principles
* Solid steel frame design
* Designed and built for multiple decade use
* Built for multiple shift production
* Low maintenance for extended up time
* Industry known for longest lasting machines
* First and last machine you will need for welding
Technial Parameters: PVC Hot Air Banner Welders
Model | DR-V13 |
Power supply | AC 220V 50/60Hz |
Heating Power | 1800W |
Rated current | 15 A |
Working Pressure | 0.5-0.7 MPa |
Air Consumption | |
Total pressure | 6kg/ c㎡ |
Upper wheel pressure | 0.5-4.5kg/ c㎡ |
Hot Air Temperature | 0-750℃ (adjustable) |
Activity space for upper wheel | 18-25mm |
Seam Speed | 1-24m/min (adjustable) |
Hot Air Nozzle Width | 10-50 mm (as request) |
Width of Seam Roller | 10-50 mm (can be customized) |
Weight | 340KG |
Dimension | 1970*770*1600mm |
Various Seam Configurations: (PVC Banner Welding Machine)
DR-V13 machine can aslo achieve: overlap welding, hemm, hem with pocket, hem with rope, butt seal with tape.
Please inform us the welding types and size requirement.
Application: PVC Hot Air Banner Welders
Super thermal space to accomodate to super large, inflatable slide, obstacle course, bounce house, banana boats, Zodiac Boats, Rubber Boats, Hovercraft, bumper ball, zorb ball, large inflatable tents, su nshade, sun umbrealla, trcuk covers, swimming pool, Temporary shelters, amusement city, water park, water roller, inflatable cartoon, advertising inflatables, Zodiac, Giant Dome Tents , sport boat, leisure boat, rescue boat
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and trainning?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compresor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
