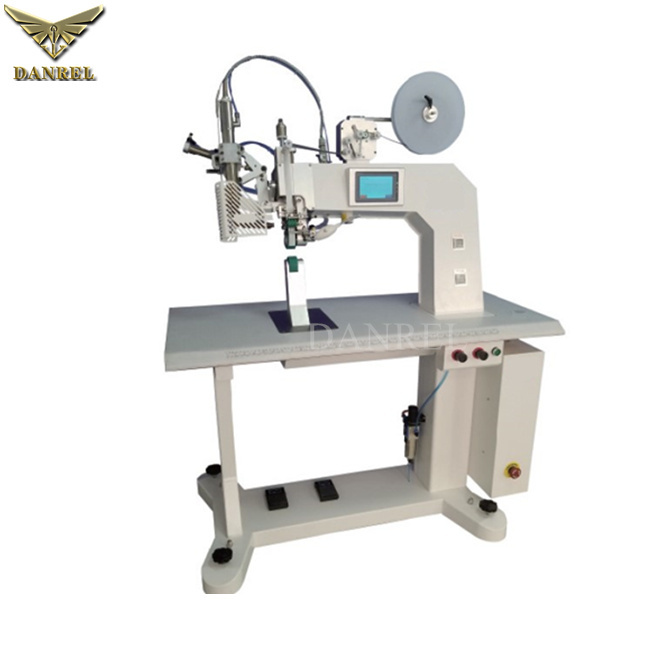

Hot Air Waterproof Tape Seam Sealing Machine

Availability:
Quantity:
  • DR-F9T

  • DANREL

Name: Hot Air Waterproof Tape Seam Sealing Machine

Model No.: DR-F9T

Machine Feature:

1. PLC/HMI touch screen interface -- quick, easy parameter input and adjustment.

2. UP & Down roller proportional speed control system to avoild wrinkle tapping.

3. Limited length of seam sealing tape funcion saves 15% tape consumption.

4. Error message for heating problem in lcd display panel

5. New precise temperature adjustment, heating temperature up to 700 ' C

6. Suitable for wide range material tape seam sealing, PU, TPU, PVC,Nylon, Rubber, etc

7. Quick, repeatable head adjustments for precision welding.

8. Auto-compensation and reverse to avoid blank taping.

9. Auto tape feeding and cutting to avoid tape wasting.

10. Feed rollers are chain driven for optimum sealing of thick seams

11.Designed for 24 hours continuous working purpose.

12.High Quality Imported parts, Japan Panasonic PLC, Omron electronics, Airtac Pneumatic Parts, etc

13. Lift of upper feed roller 25mm for seam sealing of thick and puffy materials (shoe liners of fur

imitation/winter jackets, etc.)

14. Applications: Raincoat, tent, jacket, car covers, sportswears, etc

15. Machine can be customized according to your products, to achieve more convenent operation


Application:
Waterproof Tape Seam Sealing Machine


Senior nylon raincoat -PVC, nylon -PU, rubber cloth, three layers cloth and other fabrics have a waterproof coating, windbreaker, ski clothing, screen, tents, waterproof cover military, waterproof, lightweight car hood, motorcycles raincoats and other products.


Technical Patameters:

ModelDR-F9T
 Power supplyAC 220V±10%, 50/60Hz
 Heating Power3500 W
 Rated current15 A
Working Pressure0.5-0.7 MPa
Air Consumption0.2M3/min
Total pressure4-6kg/ c
 Upper wheel pressure0.5-4.5kg/ c
 Hot Air Temperature 0-700℃ (adjustable)
 Activity space for upper wheel18-25mm
 Seam Speed2.5-24 m/min (adjustable)
 Hot Air Nozzle Width10-24 mm (as request)
 Width of Seam Roller25.4 mm (can be customized)
Weight180 KG
Dimension1350*550*1690 mm
