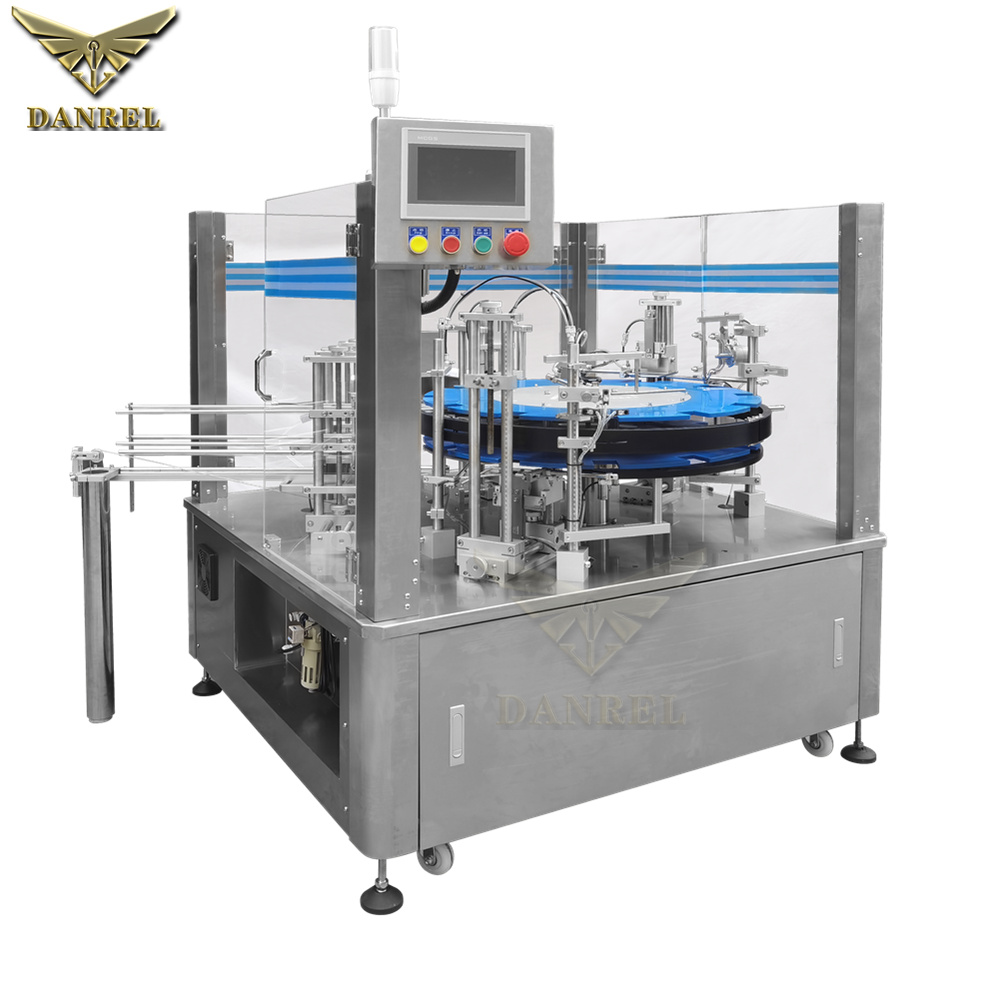

High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles

Availability:
Quantity:
  • DR-ZH226A

  • DANREL

Product Description

DANREL AUTOMATIC CARTON BOX PACKING MACHINE FOR BOTTLES & JARS

For products including containers, bottles,blister packs, pouches, sachets or tube, and many other high-output application, high speed cartoners from Danrel will deliver the needed performance and reliability while keeping the project within budget. Our high speed cartoners can be equipped with options to fit the needs of any project, from serialization and plant software integration to custom carton shapes and sizes. Contact us today for help specifying the exact equipment your application needs.

Main Functions:

1. Automatic Carton Box Loading

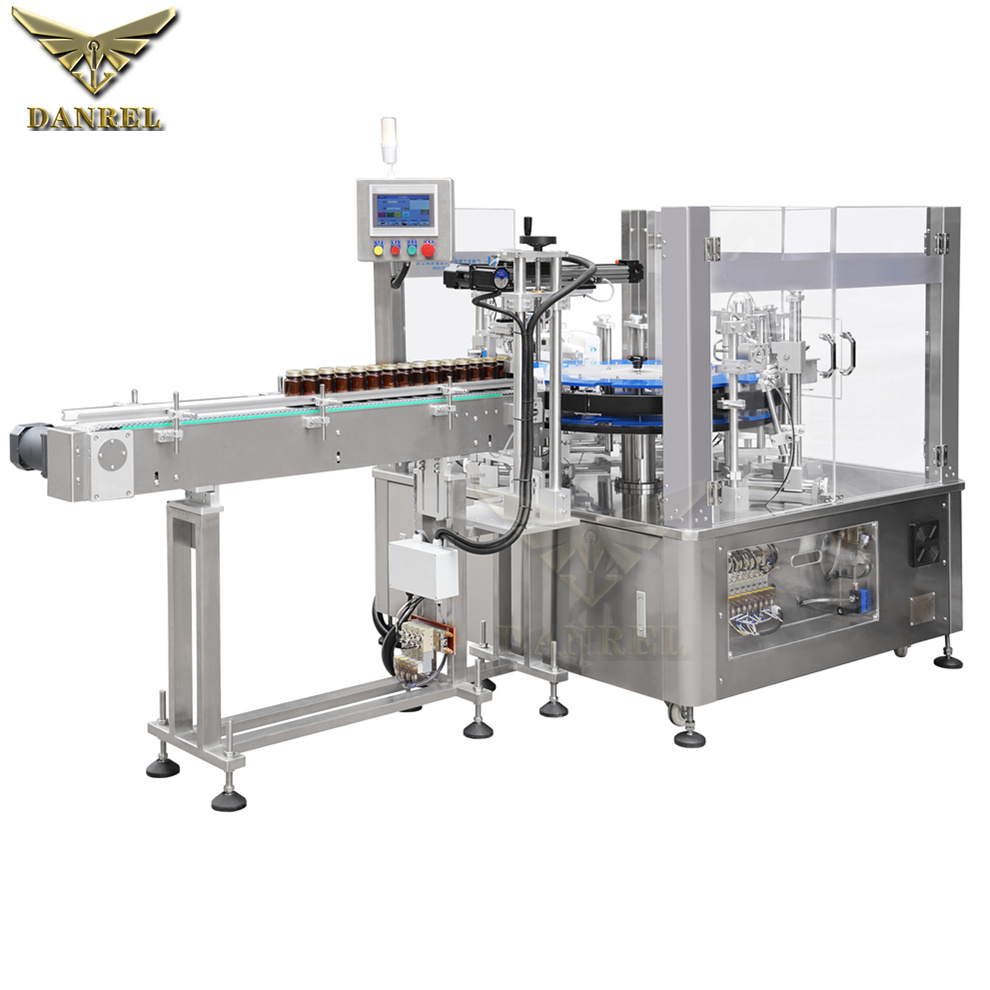

2. Automatic Bottles & Jar Feeding

3. Automtic Cartoning

4. Coder for coding expiration date or series number on the box 5. Automatic Leaflet /Brochure Loading System

FEATURES AND ADVANTAGES:

* Absolutely Economic Automatic cartoning machine.
* Constructed with materials that meet cG.M.P. or FDA.
* Small footprint is ideal for space sensitive operations. * User friendly designed for high throughput with single operator
* Quick change tooling capable -- reduces downtime during tooling changeover.
* Simplified engineering design allow a easy operation and low maintenance.
* Security guarding provides safety operation for the operator.
* Speed regulation by means of a inverter.
* High precision index provide of accurate intermittent operation station.
* Torque limiter - preventing starwheel from colliding.
Model No
DR-ZH226A
Motor Power
1/4HP 15:1
Power Supply
AC 220V, Single Phase, 50/60Hz
Capacity
30-60 cartons per min
Carton Length Range
20-80MM(customization offered)
Carton Width Range
20-80MM(customization offered)
Carton Height Range
60-200MM(customization offered)
Carton Paper Requirement
250-350g/m2(customization offered)
Working Pressure
0.5-0.8 MPa
Number of work-stations
12
Drive mode
Pneumatic
Air Consumption
150L/min
Dimension
L*W*H 2300*1500*1450MM(depends on the packing product)
Gross Weight
750 KGS(depends on the packing product)
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles

High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles
Detailed Images
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles

Operation Sequence;

1.1.     Push box to the turntable.

1.2.     Fold box lower small flaps.

1.3.     Fold lower box big flap.

1.4.     Press box lower big flap.

1.5.     Product fall into box.

1.6.     Fold box upper small flaps

1.7.     Fold box upper big flap

1.8.     Press box upper big flap.

1.9.     Push out box.

Solid-steel structure design

1. SUS304 materials that meet cG.M.P. approved material.

2. Small footprint is ideal for space sensitive operations.

3. Security guarding provides safety operation for the operator.

High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles

PLC TOUCH SCREEN

1. Easy operation touch screen for quick setting.
2. English operation interface.
3. SIMENS PLC

Machine Details

1. One machine is adapted to various size boxes with moulds changeover.
2. Quick change tooling capable -- reduces downtime during tooling changeover for different size cartons.
3. Mould Material: POM(Color: Blue).
4. QTY.: 12 Pieces for 12 boxes on the table.
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles

Customization functions

1. Automatic Feeding Mechanism for Bottles, Jars, Tubes, Bags, Bearings, LED, many more, pls send us photo and size to confirm.
2. Automatic Leaflet & Brochure Feeding & Inserting.
3. Ink Cartridge Coder for expiration date or series number.
Certifications
SHENZHEN DANREL INDUSTRIAL CO., LTD CE
SHENZHEN DANREL INDUSTRIAL CO., LTD CE
SHENZHEN DANREL INDUSTRIAL CO., LTD CE
Packing & Delivery
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles
Packaging
Size
L*W*H=2300*1500*1550MM
Weight
750 KGS



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles
Our Company
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles

Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. DANREL AUTOMATIC CARTON PACKING MACHINE FOR BOTTLES & JARS.

* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier

FAQ
High Speed Vertical Cartoner Jars Box Cartoning Automatic Carton Packing Machine for Bottles

Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .

Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
