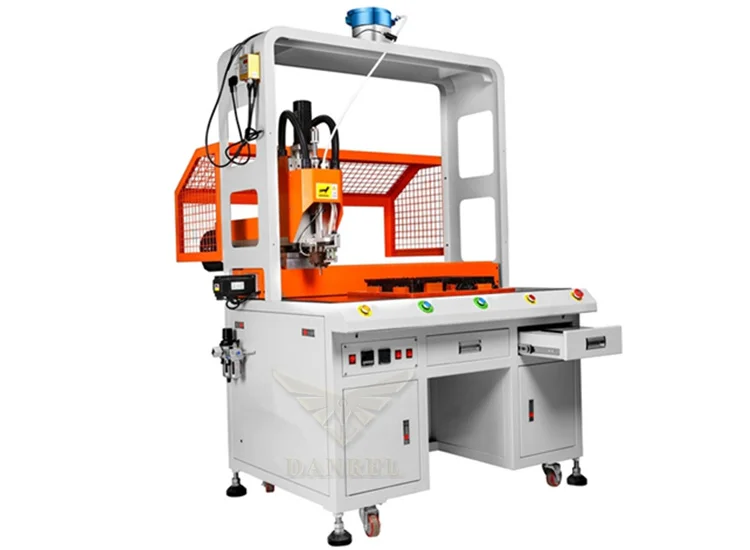

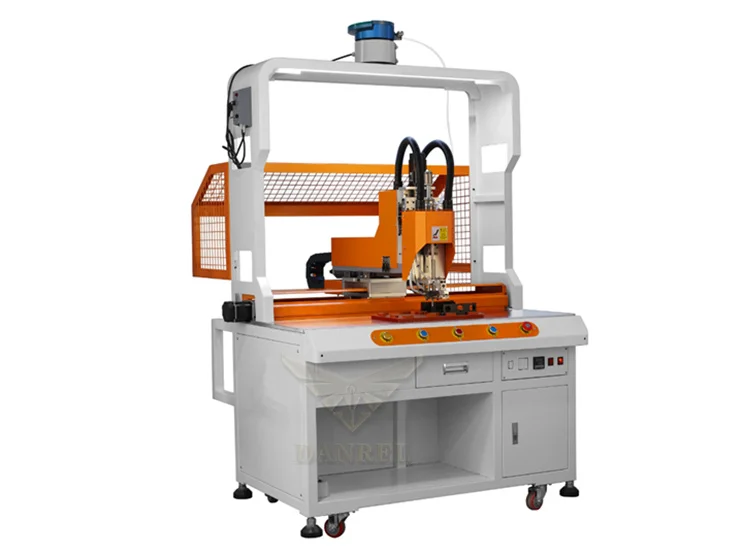

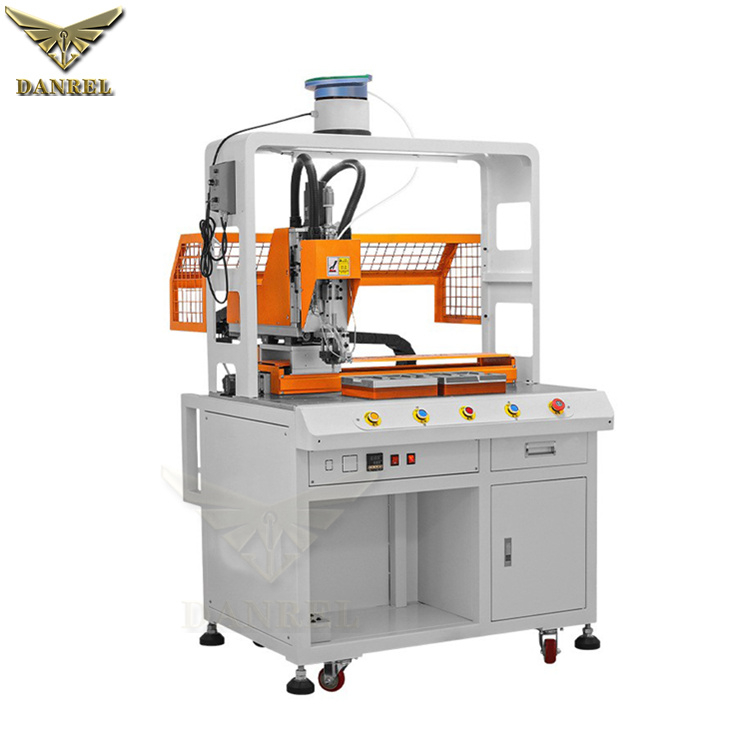

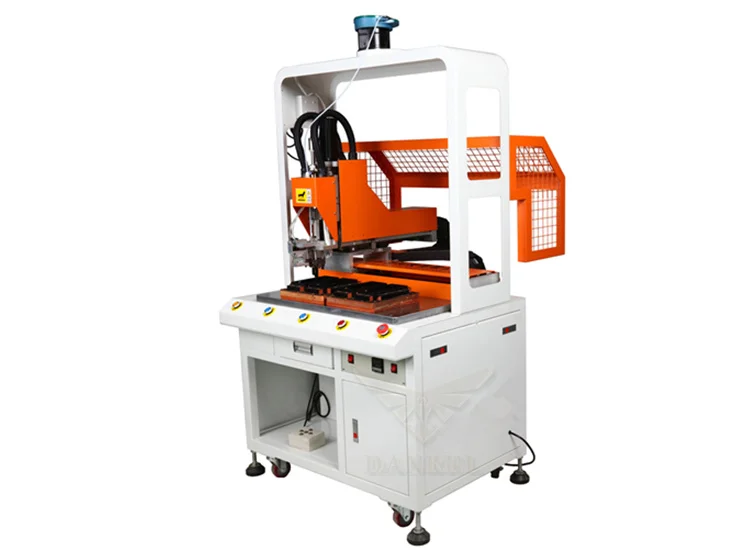

Model No.: Automatic Heat Staking Machine for Brass Thread Inserts
Description:
Automatic Heat Staking Inserting Machine makes disordered brass inserts in a line, then enter into the hightemperature
catheter, the brass inserts' temperature rise to the set value, then the heated brass inserts are
inserted into the plastic parts through a manipulator under a certain pressure.
Features
1. Three - axis step by step linkage mode, automatic constant temperature heating system, mobile brass
inserting;
3. Imported "Three-Axis" to guarantee the Prescision
2. Easy operation touch screen with recipe storage for quick setting recall.
4. Automatic feeding, heating, inerting
5. Efficiency: 3600-4800 pcs brass insserts per hour (Subject to the Plastic Parts and Brass Inserts)
6. Requirement for the Brass Inserts: Deoiling, no copper scale, uniform size
7. Designed For High Throughput With Single Operator
8. Energy-Efficient induction heating System
9. Facilitates Continuous Flow Manufacturing
Advantages:
* User friendly.
* Safe and reliable.
* Easy to install.
* Low maintenance and low energy consumption.
Technical Parameters: Automatic Heat Staking Machine for Brass Thread Inserts
Power | 1100 W |
Voltage | AC 220 V 50 Hz |
Stroke | X650mm*Y160mm*Z50mm |
Brass Insert size | ∮2.4mm~∮2.0mm |
Plastic Parts Size | Length ≤580mm; Width≤*230mm |
Efficiency | 1800~2500 PCS/hour |
Positioning Precision | ±0.01 |
Temperature range | ≤230℃ (adjustable) |
Driven Mode | Pneumatic |
Working Pressure | 4-6kg/cm2 |
Dimension | L*W*H=1100mm*780mm*1650mm |
Weight | 220KGS |

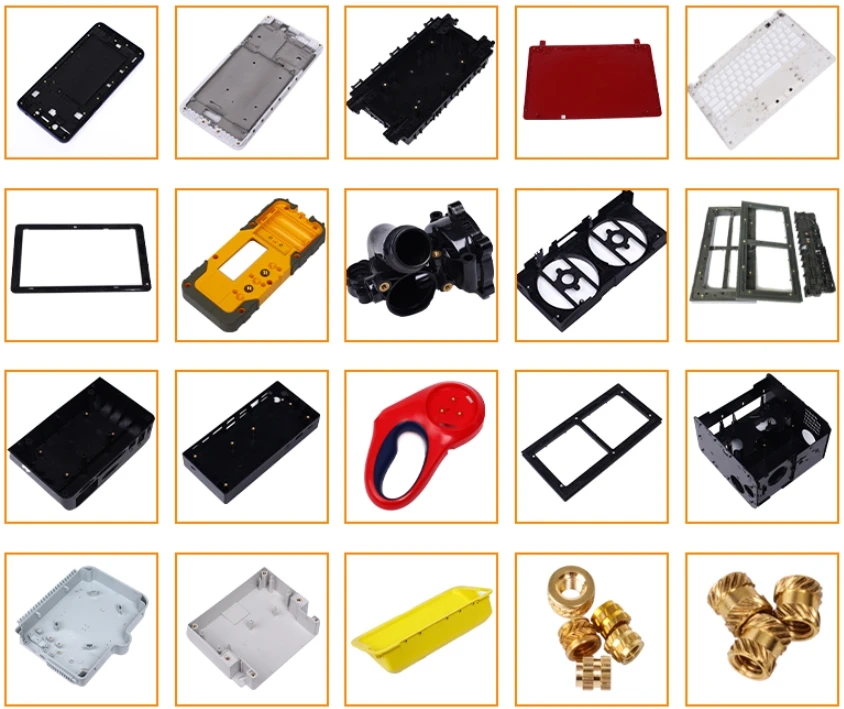

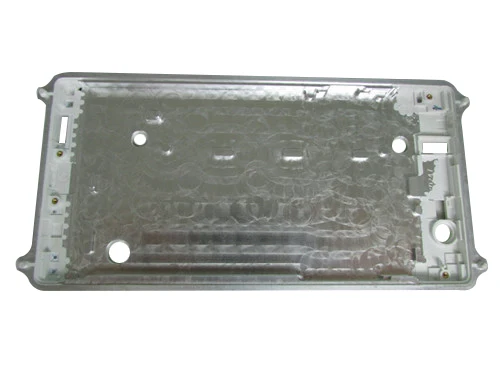

Brass Inserts application
Since its foundation, Shenzhen Danrel Industrial Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot Air Welding Machine, High Frequency Welding Machine, Ultrasonic Welding Machine, Ultrasonic Tube Sealing Machine, Vacuum Forming Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. Automatic High Frequency Welding Machine
* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier
Packing & Delivery
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and trainning?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compresor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
