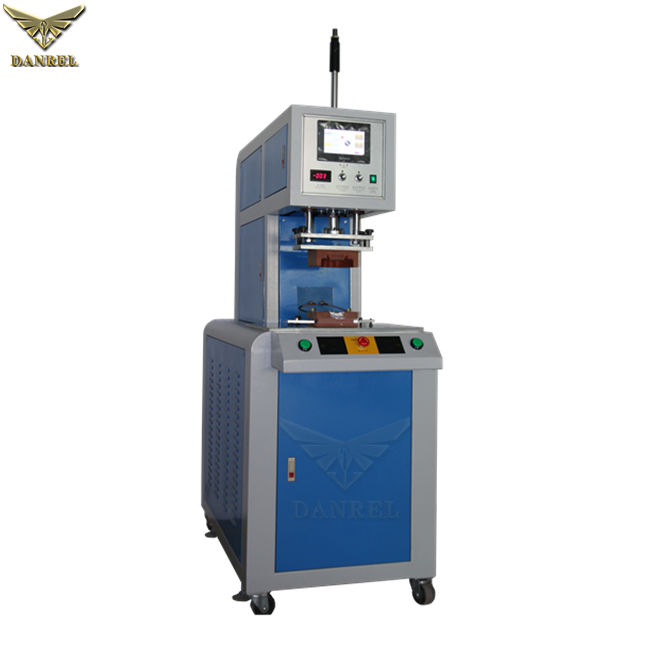

15KW IGBT High Frequency Implant Induction Heating Welding Machine For Plastic Tanks, Cups and Bottles

Quantity:
  • DR-JG15
  • DANREL

15KW IGBT High Frequency Implant Induction Heating Welding Machine For Plastic Tanks, Cups and Bottles

Product Description

DANREL IMPLANT INDUCTION WELDING MACHINE

Implant induction welding is a joining method used in plastic manufacturing. The welding process uses an induction coil to excite and heat electromagnetically susceptible material at the joint interface and melt the thermoplastic. The susceptible material can be contained in a gasket placed between the welding surface, or within the actual components of a composite material. Its usage is common for large, unusually shaped, or delicate parts that would be difficult to weld through other methods such as ultrasonic welding, spin welding and hot plate welding.


Equipment
An induction generator is used to produce high frequency current in the range of 2-10 Mhz. The range used is regulated by the FCC to avoid interference with broadcast signals.

An induction coil converts the high frequency current from the induction generator into the necessary alternating magnetic field. A single turn coil may be used when space is limited, however multiturn coil designs are more common due to their generation of a stronger and deeper penetrating magnetic field. Split coil designs are also available, which may be disassembled to fully surround a large part such as plastic piping. The high currents used in induction welding produce large amounts of heat in the coil. To avoid overheating, the coil turns are made with hollow tubing, and water is circulated during welding. Coil heat is dissipated by an attached heat exchange.

Fixtures are used to hold the parts in position during welding. One fixture is fixed and the other movable so that a press may apply and maintain pressure during heating and cooling.

Advantages of the Implant Induction Welding
1. Implant induction welding does not require physical contact with a heat source, so it is useful for joining
components with unusual dimensions or delicate surfaces.
2. The induction coil can be moved continuously to heat the entire surface of long joints. Extremely large parts can be effectively welded using this method.
3. Heat generation is limited to the exact area where it is required for joining, so thermal stress generated by welding is low.
4. The joint can be reopened using induction heating for repairs or recycling.
5. The heating and joining steps are simultaneous, so cycle times are short.

Disadvantages
* There are additional costs due to the implant and gasket material. Custom tooling may also be required for some
part designs.

* The electromagnetic field may affect metallic or electronic components of the part.


Parameters

Model No
DR-JG15
Power
15KW
Power Supply
AC 380V 3P, 50/60Hz
Input Current
40A
Welding Area
UP to diameter 200MM
Delay Time
1-100 S(adjustable)
Heating Time
1-100 S(adjustable)
Holding Time
1-100 S(adjustable)
Driven Mode
Pneumatic
Stroke
150 MM(Customization Offered)
Working Pressure
0.4-0.7 MPa
Cooling Water Flow
6L Per min
Packing Dimension
1440*840*2100 MM
Gross Weight
680 KGS

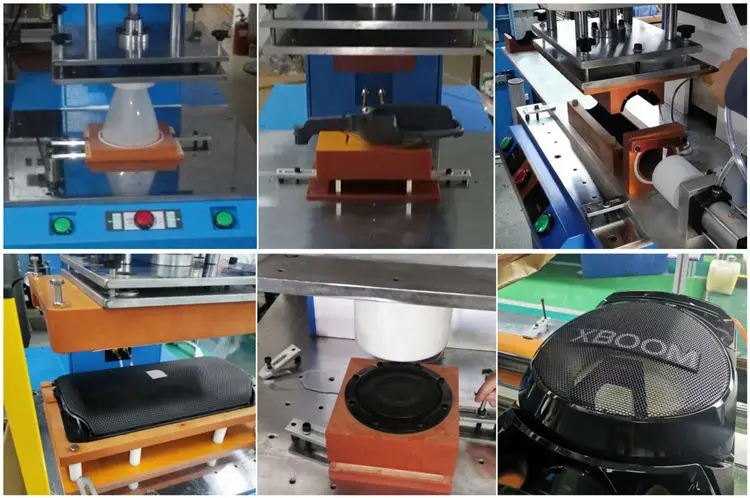

Application Samples
Main Parts

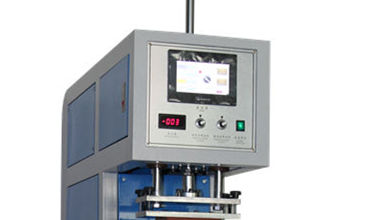

Induction Welder

PLC + Touch Screen Operation

Brand: MITSUBISHI

Origin: Japan

Display: English


1. IGBT technology, high conversion efficiency; Energy saving 15%-30%.
